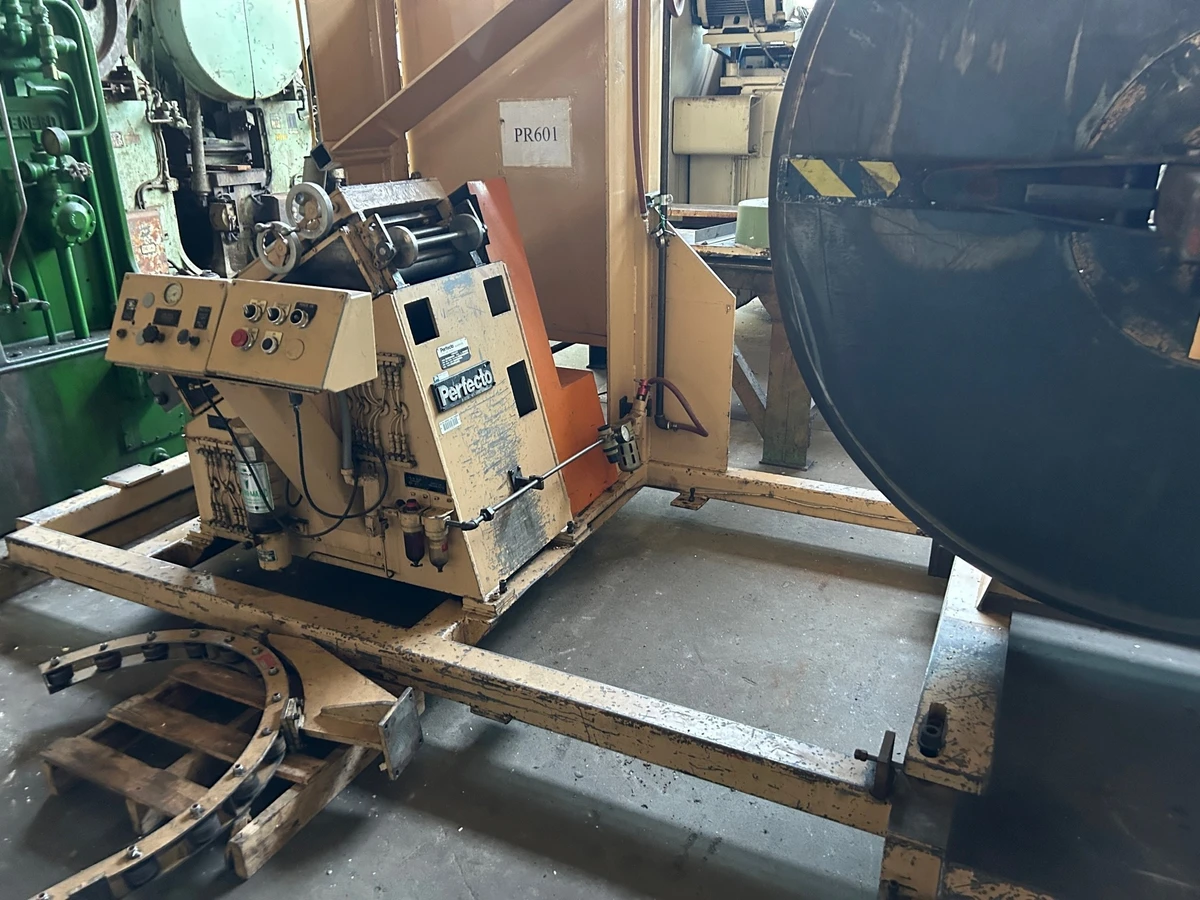

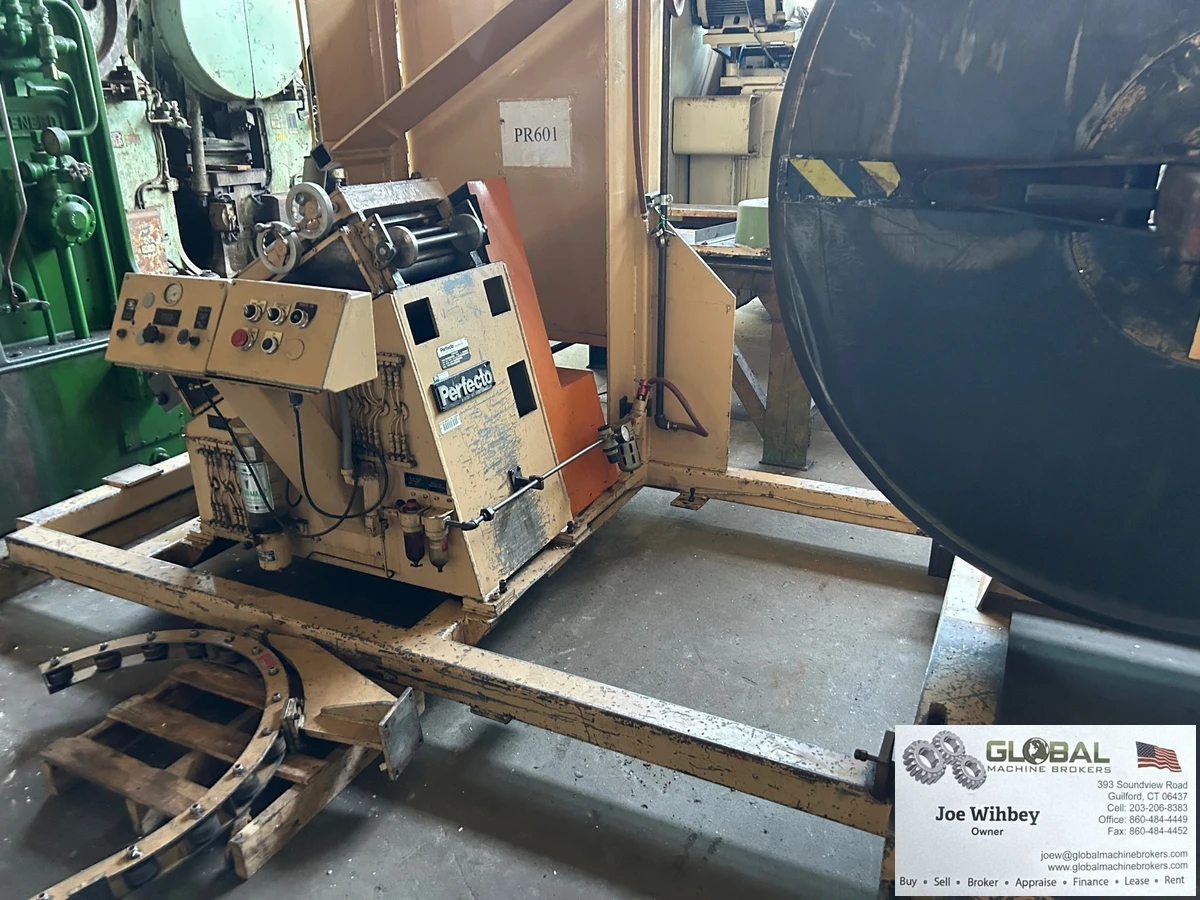

Perfecto Inc 7000Lbs Coil Payoff Straightener RS-12B

Description

Make: Perfecto
Un Coiler Model: RS-12B
Serial no: RS-83110
Straightener Model: 17-12-17
Serial #: S2-83-109
Condition: Used, Excellent Shape
Call For More Details Or Photos

COIL PAYOFF REEL SPECS:
Max Weight: 7000
Max Coil Width: 12"
Max Coil OD: 72"
Coil ID Range: 15.5" - 20.5"

STRAIGHTENER / FEEDER SPECS:
Max Coil Width: 12"
Max/Min Thickness: .015 - .040" (at 12" wide. could run thicker at less width)
Forward / Reverse / Stop / Speed control / Jog
Centro-Matic Oil Lubrication System
At least 2 coil Keepers Included
Looks Like 17 Straightening Rolls With Zinitial Pinch and 2 Exit Rolls
3000 Inches/Min max speed
