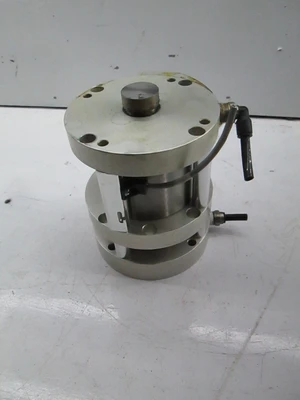

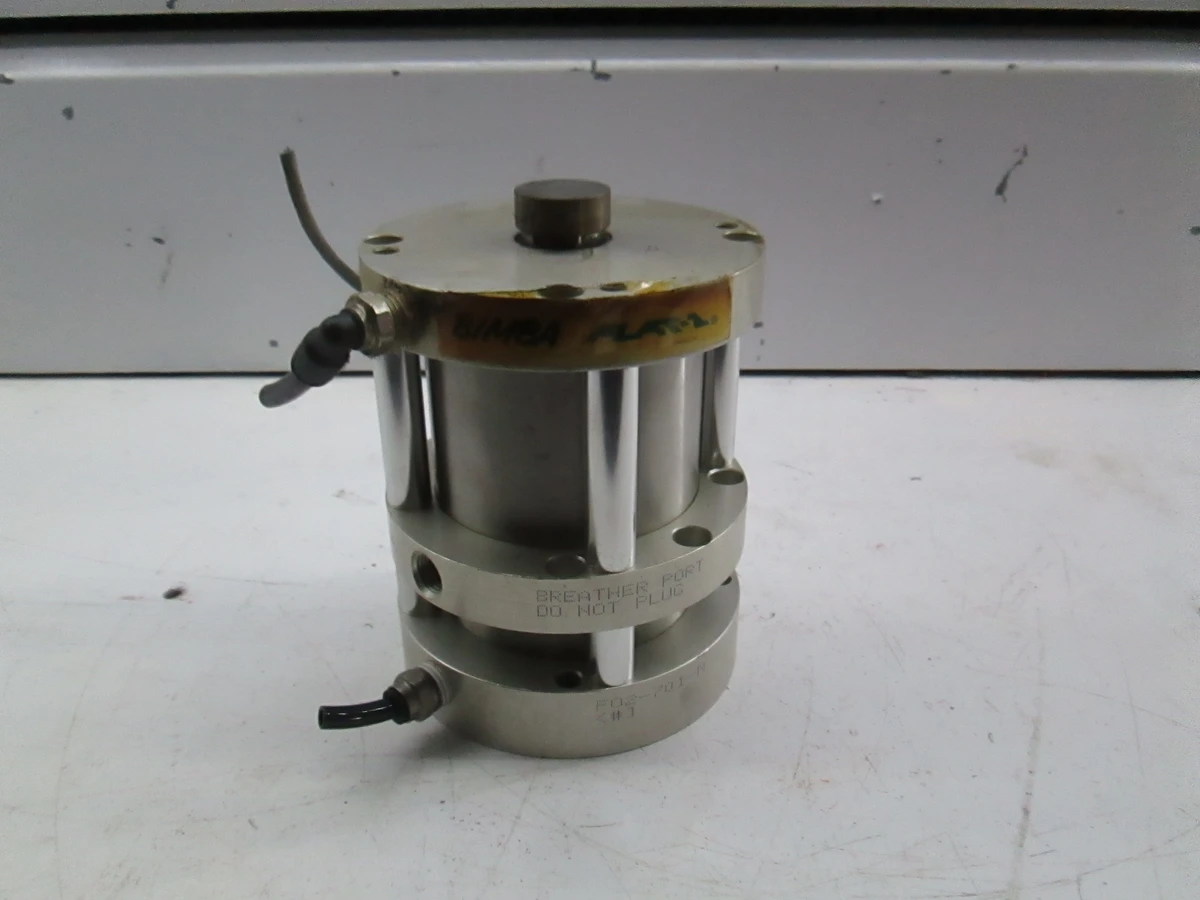

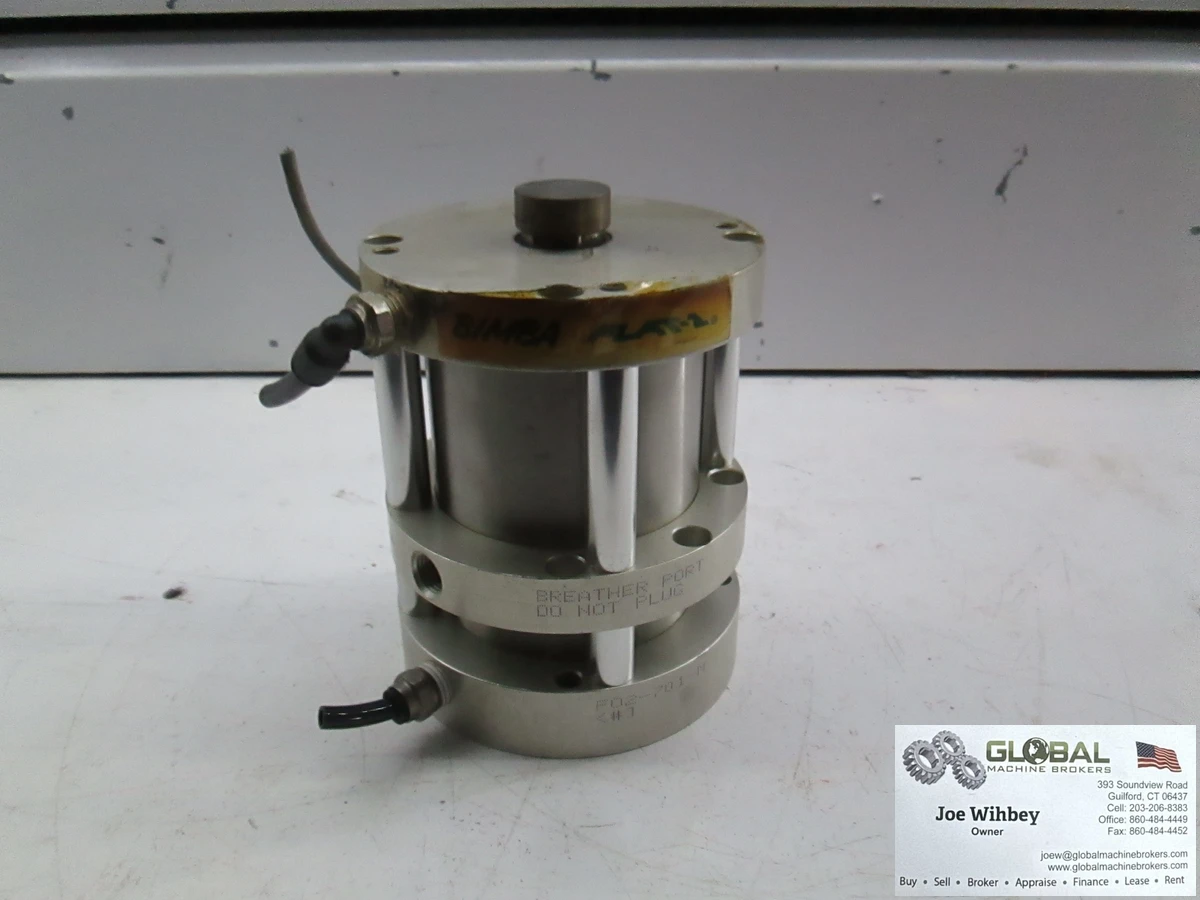

Bimba Flat-1 Model: FO2-701-M Double Acting Pneumatic Cylinder
Have one to sell?
$365.00 USD
ConditionUsed
1 available
Make: Bimba
Model: FO2-701-M
Type: Double-acting pneumatic compact cylinder
Operation: 2-stage extend (for longer extension) / single-stage retract
Rod Type: Single-end rod with magnet (standard track position)
Brand: Bimba
Series: Flat-1 Multiple Power series
Bore Diameter: 3" (B3")
Stroke Length: 1" (S1")
Mounting: Standard threaded mounting holes
Mounting Hole Thread: 5/8-18 UNF (female)
Rod Material: Stainless steel 303
Body Material: Stainless steel 304
Seal Material: Buna-N
Pneumatic Port: 1/4" NPT threaded
Asset In Stock And Available Immediately
Product Series/Family: Flat-1 Multiple Power series
Sub-Range: FO2-70 series
Bore Size: 3" bore (B3")
Stroke Length: 1" stroke (S1")
Functions: Double-acting (2-stage extend; single-stage retract) single-end rod pneumatic compact cylinder
Design: Magnet (standard track position)
Repairable
Maximum Pressure: 100 psi
Connection Type: 1/4" NPT threaded pneumatic port
Threaded Rod: 5/8-18 UNF (female)
Mounting Mode: Standard threaded mounting holes
Material:
Rod: Stainless steel 303
Body: Stainless steel 304
Seals: Buna-N
Head: Anodized Aluminium alloy
Rod Bushing: Oil-impregnated Bronze
Ambient Air Temperature for Operation: -20°F to +150°F / -28°C to +65°C
