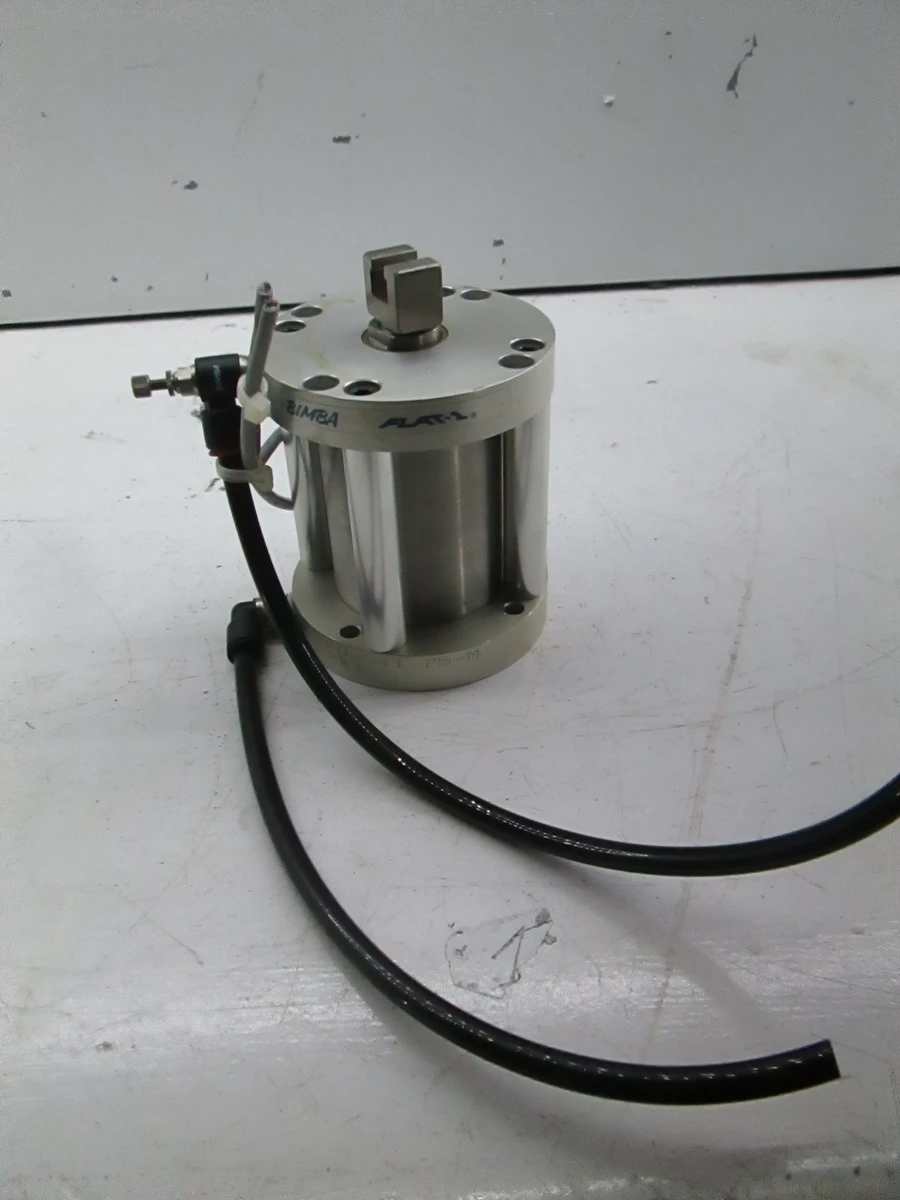

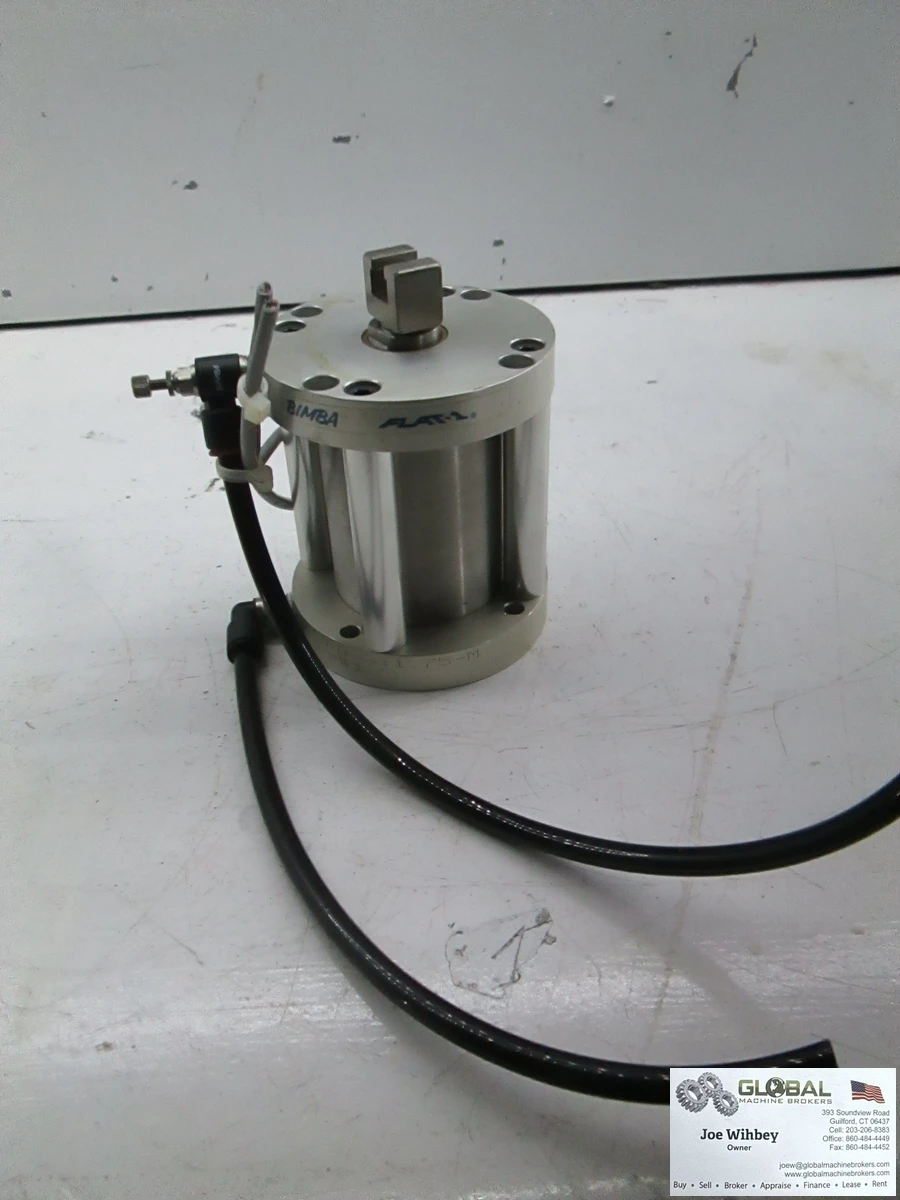

Main Function: Pneumatic cylinder
Product Series/Family Name: Flat-1 series
Sub-Range Name: FO-31 series
Bore Size: 2" bore (B2")
Stroke Length: 1-3/4" stroke (S1-3/4")
Functions: Double-acting single-end rod pneumatic compact cylinder
Design:
Magnetic switch (position 2)
Repairable
Pressure: 200 psi
Connection Type:
2 x 1/8" NPT threaded pneumatic ports
1/2-20 UNF-2B (female) threaded rod
Mounting Mode: Standard counterbored mounting holes (both ends)
Material:
Hard chrome-plated stainless steel 303 rod
Stainless steel 304 body
Buna-N seals
Anodized Aluminium end caps
Oil-impregnated bronze bearings
Ambient Air Temperature for Operation: -20°F to +200°F / -28°C to +93°C
Force: Maximum enclosed spring force of 17.5 lbs
