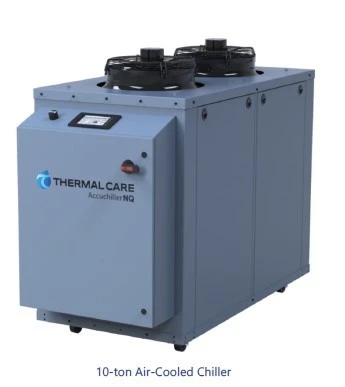

Thermal Care NQA10 Accuchiller Air-Cooled Portable Chiller Voltage - Tank & pump

Description

Thermal Care NQA10 Accuchiller Air-Cooled Portable Chiller Voltage - 460/3/60Hz Tank & pump included
Model - NQA10
Nominal Cooling Capacity - 11 ton at 50°F LWT
Voltage - 460/3/60Hz
Tank/Pump Options - Tank & Pump Included
Pump Size - 2.0 HP Pump
Rotary Non-Fused Disconnect Switch - Rotary Non-Fused Disconnect
Switch provides an integral, lockable disconnect switch.
C-UL508A Control Panel - C-UL508A Control Panel upgrades the control
panel to C-UL508A standards. This is required for units going to Canada.
Lead time extension is required.
Controls - Standard Control
Control Communications - Modbus RTU
Casters or Mounting Feet - Casters
Chiller Location - Indoors
Ambient Conditions - 60°F to 110°F
Alarm Horn with Alarm Dry Contact - Included
Flow and Fluid - Standard Flow with Standard Water
Standard Features
Direct Drive Scroll Compressors: Direct drive hermetically sealed scroll compressors withnproven performance in industrial cooling for reliable, low maintenance, and efficient operation.
Stainless Steel Evaporators: High-efficiency stainless steel plates with copper brazing
provide maximum performance, long life, and an enhanced level of protection from harsh process conditions.
Stainless Steel Pump: Stainless steel pump selected for peak performance with
the utmost in corrosion protection to ensure a long useful life under severe industrial conditions.
Nonferrous Reservoir and Water Lines: The insulated reservoir, fluid lines, pumps, and other components in the process fluid circuit will remain free of rust for maximum corrosion protection.
Evaporator Inlet Strainer: The evaporator inlet strainer removes any debris present in the process fluid to prevent costly downtime and repair due to a clogged chiller evaporator.
Wide Ambient Range: A wide range of indoor-duty air-cooled, water-cooled, or remote air-cooled condensers as well as outdoor aircooled chillers fit a variety of applications.
Easy Access Cabinet: Heavy-gauge machine access doors with industrial grade
tools-free latches provide quick access to all components for easy operation and maintenance.
Compressor Protection Technology: Our compressor protection technology uses start-to-start anti-recycle control logic to limit cycling under low-load operating conditions to extend compressor life.
Compressor and Pump Run Hour Displays: The ability to monitor compressor and pump running hours is an important tool to assist with scheduling maintenance.
Power Monitor: The main power monitoring system protects the chiller from extensive damage to the compressor and pump due to loss of phase or phase reversal in the main supply.
Reservoir Low Level Alarm: Indicates a low process fluid condition and protects the
process pump and chiller from expensive damage caused by a critically low operating level in the reservoir.
Temperature Deviation Warnings and Alarms: A warning alerts the operator of a potential problem before a fault occurs and if the condition gets worse, an alarm stops the chiller to prevent damage.
Adjustable Deviation Alarm Time Delays: Allows for programing a start-up alarm time delay to deactivate the alarms long enough for the process loop to stabilize before activating the alarms.
High-Quality 24 VDC Power Supply: The 24-volt DC power supply ensures dependable control circuit power and isolates the control circuit from static interference to ensure stable and precise operation.
• R-410A energy-efficiency and reliable scroll
compressor
• Nonferrous process fluid circuit
• Evaporator inlet strainer
• Cleanable inlet air filter
• Tools-free easy access cabinet
• Compressor anti-recycle timer protection
• Compressor and pump running hour displays
• Remote start/stop
7" Color touchscreen with PLC control and includes alarms, warnings, and indicators
