Phase-A-Matic CNC PAC-30 220V/460V 30HP Combo Phase Converter- NEW

Description

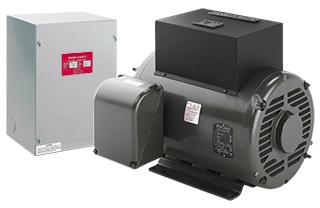

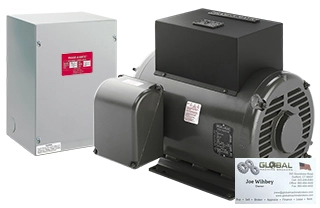

Phase-A-Matic CNC PAC-30 220V/460V 30HP Combo Phase Converter

Package Model: CNC PAC-30 or CNC PAC-H30

Both units are 220V (or 460V with H30 combo)

30 HP rotary converter: Model R-30/RH-30

21"x 18.25"x 19"

30 HP voltage stabilizer: Model VS-30/VSH-30

15"x 10.5"x 7.75"

This rotary phase converter/voltage stabilizer combination is designed specifically for three-phase CNC/PLC machines. Can be used with AC and DC motor drives or voltage sensitive three-phase equipment operating from single-phase power source.

Provides balanced voltages necessary.for dependable operation of voltage-sensitive equipment.

Balance close to + 5% or less between legs.
Keeps output voltage stable during peak loads, helping most CNC/PLC and other voltage sensitive equipment to operate properly.


True three-phase.sine wave power at 120 degree phase angle

Most.CNC/PLC machines require a CNC PAC™ 1-1/2 to 2 times larger than the spindle motor to accommodate the extra amps for starting, instant reversing, and for the servos, hydraulics, etc.

The correct size Rotary Converter.is determined first. In most cases, the Voltage Stabilizer is required to be of the same HP rating, or size.

This true phase converter has a rotary portion built by Baldor Electric. Phase-A-Matic only uses soldered connections on their converters and therefore have minimal circuit board failure and wiring issues. The failure rate is virtually zero because the rotors are designed and manufactured for rotary conversion.

Every converter is tested before shipped and given a serial number.

This is item is a brand-new OEM converter.

Global Machine Brokers is an OEM distributor of Phase-A-Matic.

The team at Global Machine Brokers will do the best we can to secure safe delivery of the machinery
