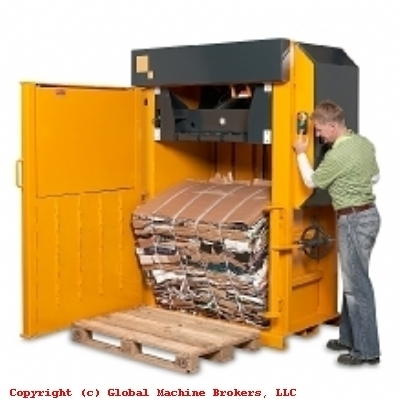

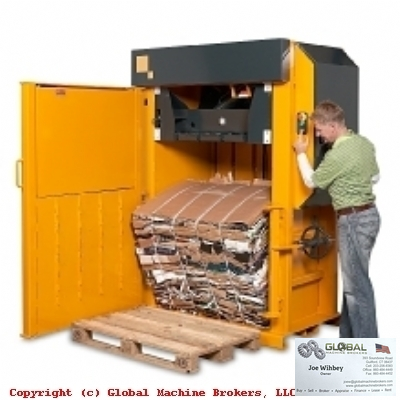

New Bramidan Baler Model X30
Handling bulky waste
The X30 HD is suitable for retail shops and industrial companies with large quantities of waste. It is a compact machine with high capacity and superior press force.
This baler has a wide filling opening for handling larger boxes, making the daily operation as easy as possible. The finished bale can be tied with polyethylene twine or steel wires.
Meets and exceeds ANSI Standards Z245.5 and OSHA Safety Standards. ULå¨ & CULå¨ Approved Control Panel.
Noiseless
Due to an unique hydraulic system
Easy installation
Very low overall height
Safe and steady opening of door
Operated by a strong threaded spindle
Press force (lbs)
66,200
Power supply
208/230/460V 3-phase 60Hz
Motor (HP)
5.5
Noise level (dB)
59-60
Cycle time (sec)
25
Dimensions WxDxH (inch)
69 x 50 x 91
Weight (lbs)
3,800
Feed opening WxH (inch)
43 x 26
Load height (inch)
44
Chamber height (inch)
66
Stroke (inch)
37
Bale size WxDxH (inch)
48 x 30 x 40
Bale weight OCC (lbs)
600-775
Bale weight plastic (lbs)
775-1,000
Weight: 3800
Height: 91
Length: 50
Width: 69
