New Bramidan Baler Model X10 200 Pound Bale 31x24x24

Description

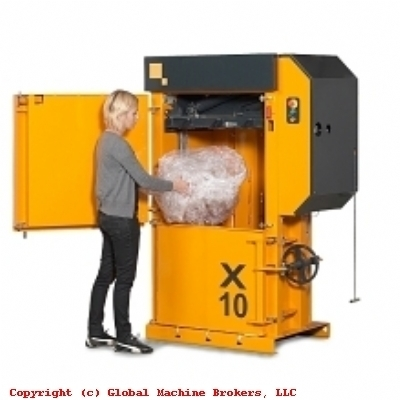

New Bramidan Baler Model X10

Limited space for waste

The X10 HD is suitable for smaller retail shops, industrial companies or other companies, who need a compact baler with high capacity. The compact design makes it ideal where space is limited.

Equipped with cross cylinders, this machine offers superior press force but also a very low overall height. The X10 HD has a relatively large filling opening, making the daily operation as easy as possible.

Meets and exceeds ANSI Standards Z245.5 and OSHA Safety Standards. ULå¨ & CULå¨ Approved Control Panel.

Easy installation

Very low overall height


Safe and steady opening of door

Operated by a strong threaded spindle


Automatic ejection

Two-hand operation ejects the bale.

Press force (lbs)
22,000


Power supply
208/230/460V 3-phase 60Hz (110 volt 60hz, 20 amp also available)


Motor (HP)
5.5


Noise level (dB)
59-60


Cycle time (sec)
12

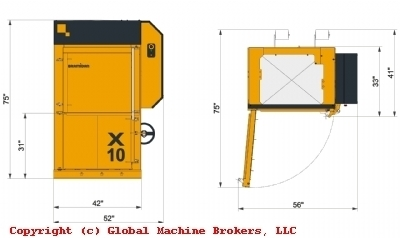

Dimensions WxDxH (inch)
52 x 41 x 75

Weight (lbs)
1,470


Feed opening WxH (inch)
31 x 24


Load height (inch)
31


Chamber height (inch)
51


Stroke (inch)
33


Bale size WxDxH (inch)
30 x 24 x 24


Bale weight OCC (lbs)
150-200


Bale weight plastic (lbs)
175-245
