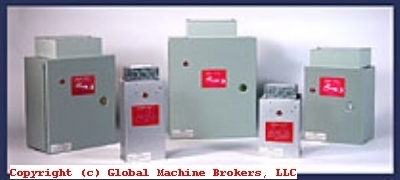

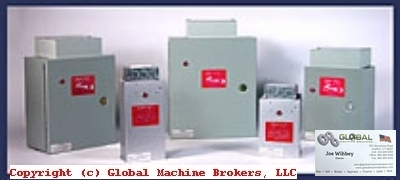

PHASE-A-MATIC Static Phase Converter UL-100HD UL-200HD, UL-300HD, UL-900HD

Description

NEW>>>PHASE-A-MATIC

Static Phase Converter
Inexpensive 3-Phase Power for Home Workshops
Runs 3-Phase Motors From Single-Phase Power at 2/3 Rated HP
Motor Speed is not Changed, Most 2-Speed motors, power feeds, coolant pumps,etc will operate
Motor will instant reverse
All switch gear will work normally
HP Range is determined by the maximum or minimum starting current applied to it at any one time. do not order a larger size thinking it will give you more HP.

NOT FOR USE IN WET OR DAMP LOCATIONS
HEAVY DUTY (HD) SERIES

MODEL NO.
HP RANGE
PRICE
APPROX. WT.
SHIPPING DIMENSIONS
(Shown In Inches)

UL-100HD
1/3 to 3/4
$215.10
3 lbs.
10 x 5 3/4 x 3 1/2

UL-200HD
3/4 to 1 1/2
$234.00
3 lbs.
10 x 5 3/4 x 3 1/2

UL-300HD
1 to 3
$249.30
3 lbs.
10 x 5 3/4 x 3 1/2

UL-600HD
3 to 5
$316.80
4 lbs.
10 x 5 3/4 x 3 1/2

UL-900HD
4 to 8
$345.60
4 lbs.
10 x 5 3/4 x 3 1/2

UL-1200HD
8 to 12
$451.80
5 lbs.
12 1/2 x 5 3/4 x 3 1/2

PAM-1800HDES
12 to 18
$8383.00
12 lbs.
18 x 12 x 12

PAM-3600HDES
20 to 30
$1,266.00
23 lbs.
21 x 14 x 14

PAM-5000HDES
30 to 50
$1,876.00
29 lbs.
21 x 14 x 14

PAM-Stevens Co.0HDES
50 to 75
$2,642.0034 lbs.
25 x 14 x 14

When to use HEAVY DUTY Series Static Converter
Lathes above 3 HP not fitted with a clutch.
Air compressors; the motor pully diameter must also be reduced by 1/3, or a 50% larger motor can be fitted.
Long heavy starting cycles, frequent starting, instant reversing (as in rigid tapping), or unattended motors or equipment.
If jogging is required, or if there is a good chance of the motor being stalled during use.

Prices effective 12/2024 and are subject to change.  Inquire for current quote
