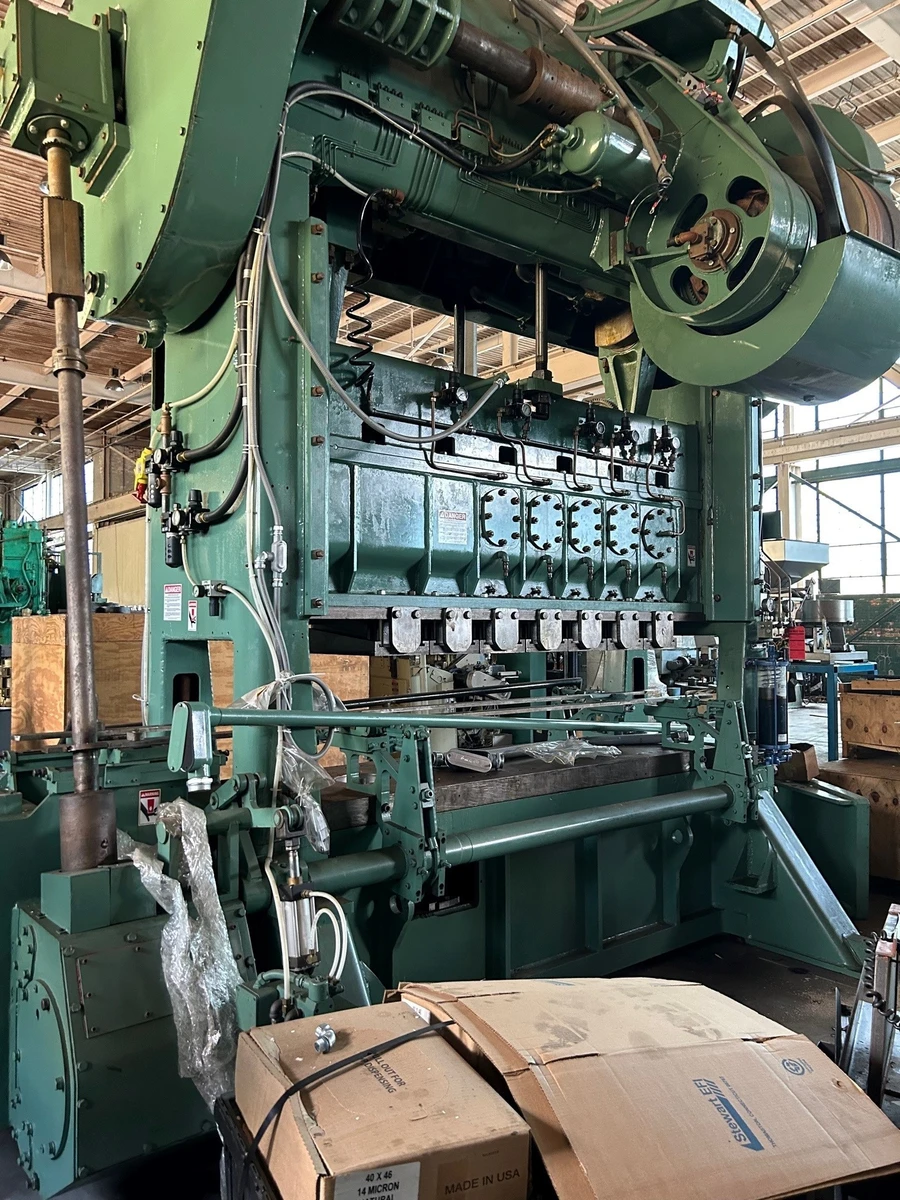

WARCO 100-2-90c ssdc

Description

Press was re-built in 2018 and never ran since then.
Warco press was part of a federal machine. Both were bought out by bcn technical services .
100 ton capacity
15'' total stroke
20/23 spm
sdav=28
90'' bed length
Ai clutch and brake *Twin end drive best in class
All new pneumatic lines
New serviced was oil / bearing oil lines
New electrical lines* No controls though
Mechanical(Pneumatic) Transfer system
Pneumatic cylinders top & bottom of punches/ dies
Die punch holders- pillar to bushing type for precision alignment
Transfer slide included
Pneumatic ram counterbalance
Deep draw 5 inches possibly more
8'' blank max
o.z - 2.0mm metal thickness
8 operations on press now - could add two more.
Currently set up for cut feeding
size: 13 inch table x 13 inch long x 8 inches wide x 40,000 lbs
Press can be split into two for rigging/hauling.
