Keyence SL-R11 Light Curtain Safety Relay SL-C Series 24 Vdc Sl-C16F Sensor Kit
Have one to sell?
ConditionUsed
1 available
$120.00 USD
Weight: 1
Length: 6.0
Width: 4.0
Height: 2.0
Model No: SL-C Series
CE Marked
Kit Includes

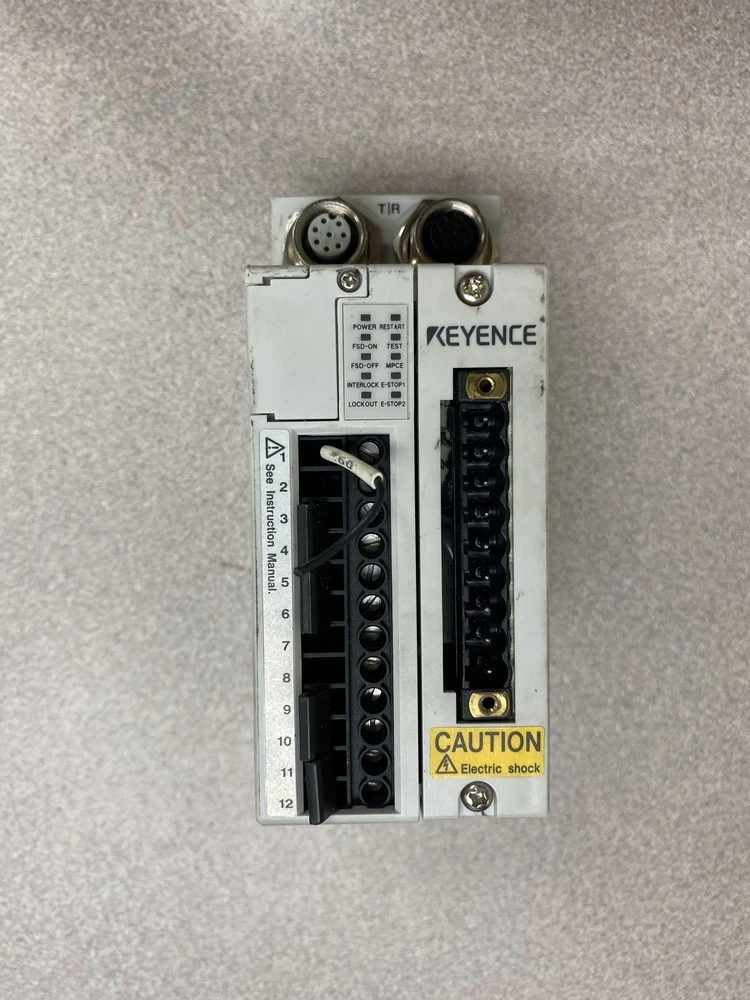

Intelligent Safety Relay Unit Part No: SL-R11
Power Supply Module Part No: SL-U2
Receiver Part NO: SL-C16F-R,
Transmitter Part NO: SL-C16F-T
Receiver Cable Part No: SL-PC10P-R
Transmitter Cable Part NO: SL-PC10P-T
This Keyence SL-C Series Safety Light Curtain Set SL-C16F-R SL-C16F-T SL-R11 Spare is used working surplus. The physical condition is good, but there are signs of previous use and handling.
Model
SL-T11R
Combined light curtain
SL-V Series
Output
FSD1、2
230 VAC/4 A, 30 VDC/2 A (Resistance load)
230 VAC/2 A (COSø = 0.3) (Inductive load)
30 VDC/1 A (COSø = 0.3) (Inductive load)*1
Life-span
Mechanical life: 10 million cycles or more/Electrical life: 0.1 million cycle or more*1
Response time (ms)
ON→OFF
+6 ms
OFF→ON
+15 ms
Approved standards
EMC
EMS
UL61496-1, IEC61496-1, EN61496-1
EMC
FCC Part15B Class A, ICES-003 Class A, EN55011 Class A
Safety
UL61496-1, IEC61496-1, EN61496-1 (Type 4 ESPE), ISO 13849-1: 2015 (Cat 4 PLe), UL508, EN50178
Rating
Power voltage
24 VDC ±10 %, Ripple (P-P) 10 % or less
Current consumption
100 mA or less (at 24 VDC, SL-T11R alone)
Environmental resistance
Enclosure rating
IP20 (IEC60529), Set inside control panel with IP54 or more
Pollution degree
2
Overvoltage category
III
Ambient temperature
-10 to +55 °C 14 to 131 °F (No freezing)
Storage temperature
-25 to +60 °C -13 to 140 °F (No freezing)
Relative humidity
15 to 85 % RH (No condensation)
Storage relative humidity
15 to 95 % RH
Vibration resistance
10 to 55 Hz, Double amplitude 0.7 mm 0.03", 20 sweeps in each of the X, Y, and Z directions
Shock resistance
100 m/s2 (Approx. 10 G), 16 ms pulse, 1,000 times in each of the X, Y, and Z directions
Material
Polycarbonate
Weight
Approx. 330 g
Weight: 1
Length: 6.0
Width: 4.0
Height: 2.0
