<p><u>PA Industries Wire Straightener</u></p>
<p>Model 3/4X14LR</p>
<p>Wire Capacity: 0.030"-0.062"</p>
<p>Number of Horizontal Rolls: 9</p>
<p>Number of Vertical Rolls: 5</p>
<p>Roll Diameter: 0.75"</p>
<p>Rolls can be moved to accomodate different wire diameters</p>
<p>Rolls are easily be adjustable</p>
<p></p>

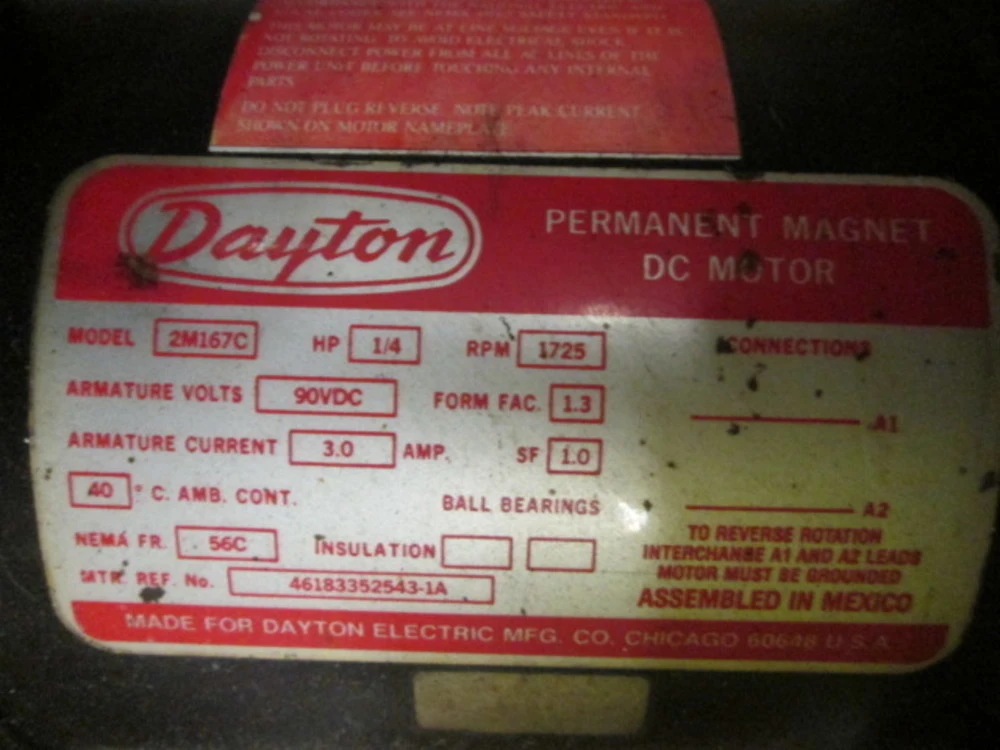

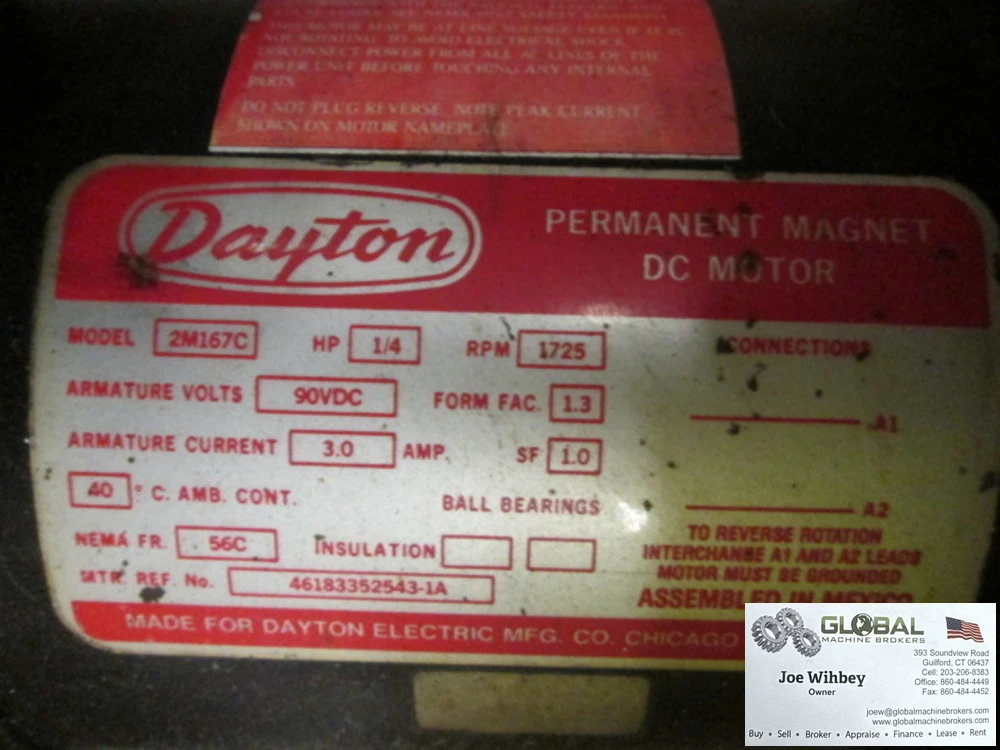

<p><u>Dayton Permanent Magnet DC Motor</u></p>
<p>Model: 2M167C</p>
<p>1/4HP</p>
<p>1725 RPM</p>
<p>Armautre Current: 3.0A</p>
<p>Armature Voltage: 90 VDC</p>
<p>SF 1.0</p>
<p></p>
<p><u>Dayton Speed Reducer</u></p>
<p>Model: 4Z006C</p>
<p>Input JP Max: 0.75</p>
<p>Output Torque: 226 in-lbs</p>
<p>Input Speed: 1725 RPM</p>
<p>Output Speed: 173 RPM</p>
<p>SF 1.0</p>
<p>Ratio: 10.1</p>
<p>Dayton motor and speed reducer work together to drive the wire feeder</p>
<p>Motor speed can be adjusted to raise and lower feeder speed</p>
<p></p>
<p>With the use of a <strong>VL-T Mini Limit Switch</strong> the feeder automatically turns off </p>
<p>when a certain amount of slack in the wire triggers the limit switch</p>
<p></p>
<p>Control box with On/Off switch and speed control knob</p>
<p>Tested and runs</p>
<p>Great condition</p>
<p></p>
<p><u>Machine Overall Dimensions:</u></p>
<p>44" Tall</p>
<p>22" Long</p>
<p>22" Wide</p>
<p></p>
<p>***Shipping and handling not included in unit price***</p>
