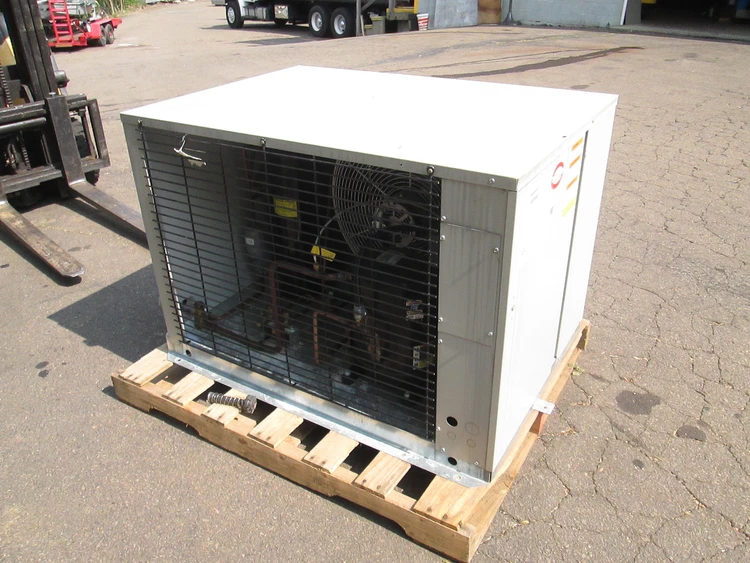

Trenton Outdoor Condensing Unit TEHA030H7HT3CB, Air Cooled, TEHA Line
Condensing Unit| $2,995.00 USD |
• Weatherproof electrical control box with compressor contactor and fused control circuit
• Welded-hermetic compressor
• High efficiency enhanced tube and fin condenser design
• Pre-formed piping
• Quiet fan motor operation
• Energy efficient PSC condenser fan motor
• Electrical control panel away from air flow stream
• Each unit is subjected to a thorough leak test with helium leak-detectors and is run tested
• Units are shipped with helium holding charge
• Receiver with fusible plug and liquid shut off valve
• Fixed high and low pressure control
• Suction service valve
• Copper tubing secured with cushion clamps
• Outdoor painted weather-resistant housing with removable hood
• Flooded head pressure control (non-adjustable)
• Crankcase heater
Application: High Temp
Compressor: CR38K6E-TF5-125
Connection Type: ODS
Feature Key: B
Features: Sealed Liquid Line Filter Drier and sight glass
HP: 3
Maximum Fuse: 20
Amps: 14.5
Oil: Polyol ester
Receiver capacity 90% Full: 25 LBS
Refrigerant: R448A, R407C
Voltage: 208-230/3/60
