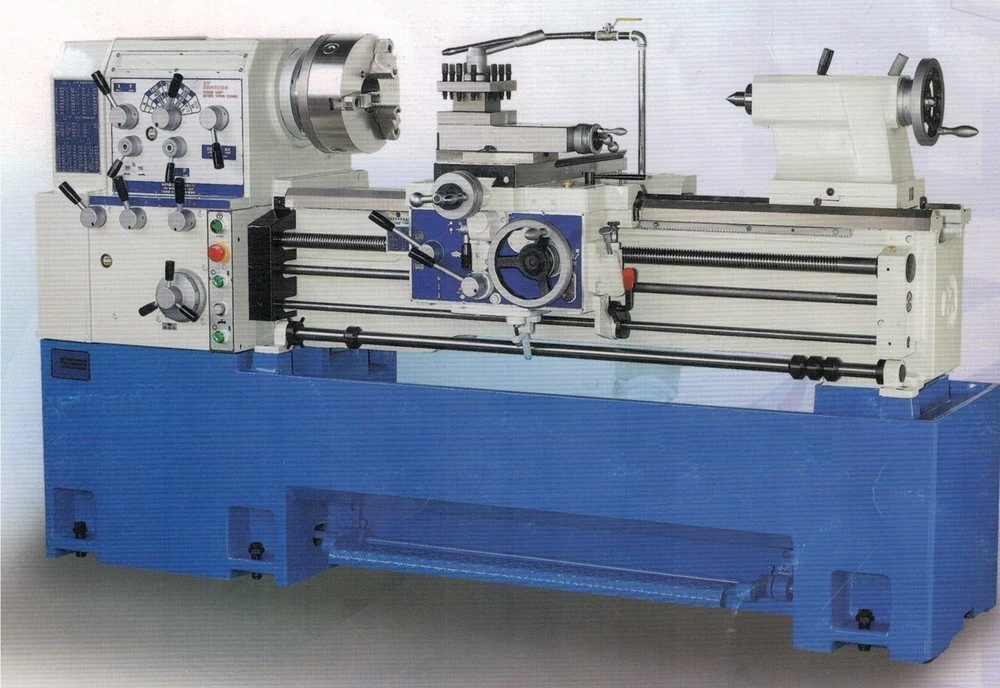

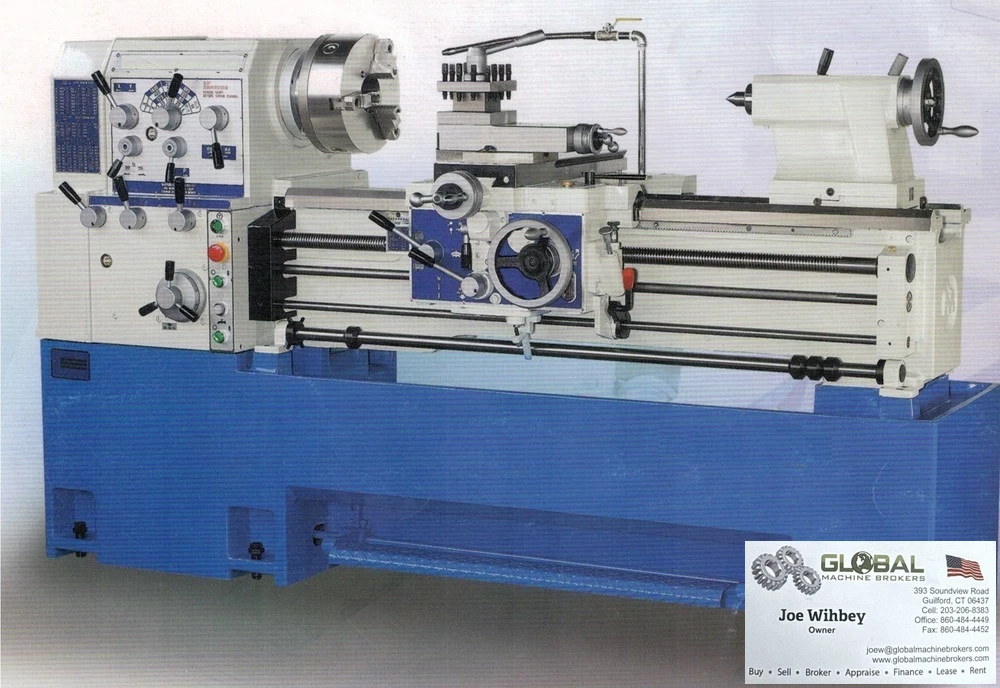

Acer Dynamic 1730S Series Large Bore Engine Lathe D1-8 Nose 20-20k Rpm 7.5 Hp

<p></p> <h1 style="text-align: center;">Acer Dynamic 17S Series Large Bore Engine Lathe D1-8 Nise 20-20k Rpm 7.5 Hp</h1> <ul> <li>Make: Acer</li> <li>Model: 1730S </li> <li>Swing: 17'</li> <li>Swing Over Gap: 25.5"</li> <li>Swing Over Cross Slide: 9.5"</li> <li>Distance Between Centers: 30"</li> <li>Bed Width: 11-4/5"</li> <li>Spindle Bore: 3.1” </li> <li>Spindle Nose:  D1-8</li> <li>Taper Of Spindle Bore: MT#7</li> <li>10” D1-8 3-Jaw Chuck</li> <li>Spindle Speed: 20 ~ 2,000 RPM (12 Spindle Speed)</li> <li>7.5 HP Spindle Motor </li> <li>Compound Rest Travel: 4-7/8"</li> <li>Cross Slide Travel: 9-2/3"</li> <li>Steady Rest – Bronze Tip (0.39” ~ 6.29”)</li> <li>Tail Spindle Travel: 5-7/8"</li> <li>Tail Spindle Diameter: 2-1/4"</li> <li>Inch Threads Range: 4~56 Tpi</li> <li>Metric Threads Range: P 0.5~P7</li> <li>Long Feed Range: 0.05~0.82 MM</li> <li>Cross Feed Range: 0.02~0.4 MM</li> <li>Leadscrew Diameter: 35 MM</li> <li>Leadscrew Pitch: 4 Tpi</li> <li>Auto. Feed &amp; Threading are interlocked to prevent simultaneous functions</li> <li>Hardened and Ground Meehanite Casting Bedway</li> <li>Hardened and Ground Gears and Spindle</li> <li>Thread Chasing Dial &amp; Automatic Longitudinal Multiple Feed Stop</li> <li>Halogen Work Light</li> <li>Center Sleeve</li> <li>Dead Centers x 2pcs</li> <li>Auto-Feed Stopper Ring (4 Position)</li> <li><span style="font-size:11.5pt"><span style='font-family:"Times New Roman",serif'>Built-In Coolant System</span></span></li> <li>Four-Way Tool Post</li> </ul> <p><strong>Optional Accessories Include:</strong></p> <ul> <li>12” 4-Jaw Independent Chuck (D1-8): $ 900.00</li> <li>Follow Rest (Bronze Tip): 0.59” ~ 2.76” Range: $ 450.00</li> <li>16” Face Plate: $ 400.00</li> <li>“ALORIS” Tool Post &amp; 4-Holder Set (#3-BS): $ 1,250.00</li> <li>“ALORIS” Tool Post &amp; 6-Holder Set (#3 Set): $ 1,600.00</li> <li>“DORIAN” Tool Post &amp; 4-Holder Set (SD35CXA-TS): $ P.O.R.</li> <li>Micrometer Stop: $ 275.00</li> <li>Five Position Carriage Stop: $ 350.00</li> <li>5C Collet Closer (Lever-Type): $ 1,600.00</li> <li>5C Collet Set (1/16” to 1-1/16” x 16ths; 17pcs/set): $ 600.00</li> <li>Taper Turning Attachment: $ 1,700.00</li> <li>NEWALL DP700 2-Axis D.R.O. (10” x 30”) $ 2,300</li> <li>MAGNASCALE 2-Axis D.R.O. (10” x 30”) $ 2,500</li> <li>Rear Full Length Splash Guard for 30”: $ 350.00 </li> </ul>
