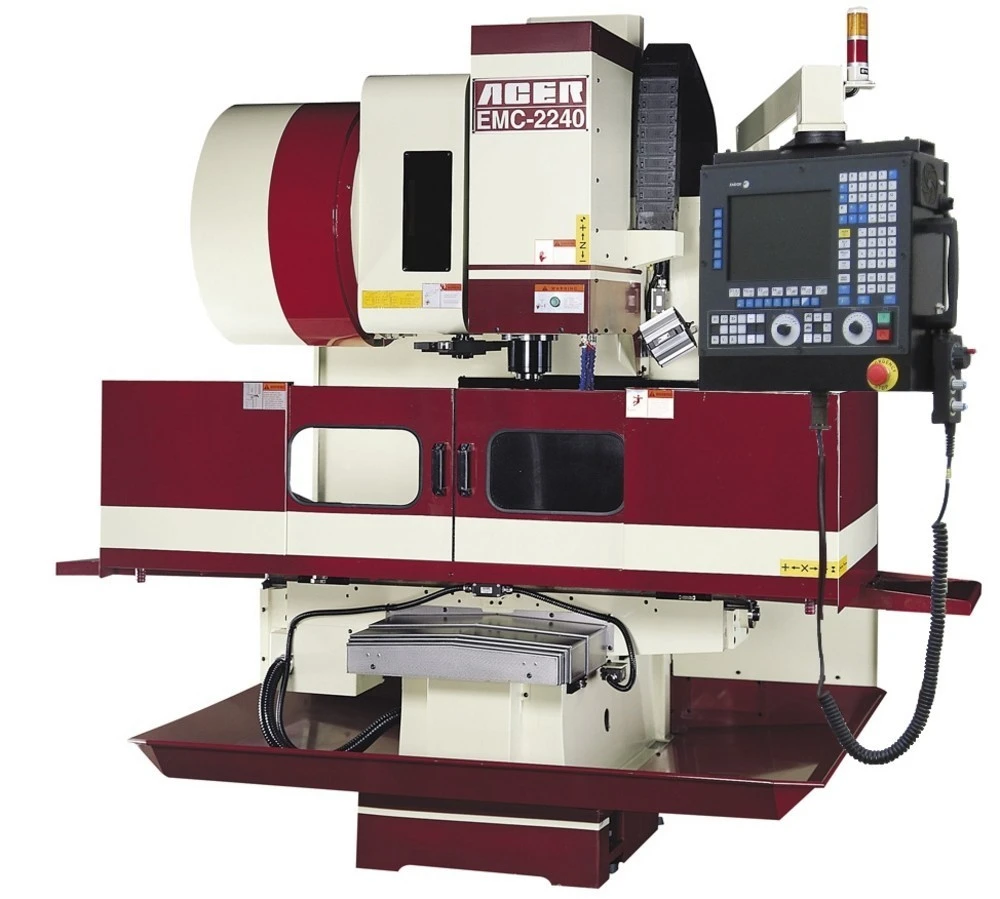

<p>Acer EMC-2240A Machining Center with ATC Featuring FAGOR Control</p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;FAGOR 8055i/A-MC Control<br/>&nbsp;&nbsp;&nbsp;&nbsp;Machining center includes:<br/>&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;Tool clamp/ unclamp button.<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;Halogen light.<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;Four coolant nozzles splash the workpiece.<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;Retractable Z axis roller cover that blocks coolant and chips from entering the side ways.<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;Telescopic steel way cover.<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;Y, Z axes with square ways.<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;Hard stop limit switch which is also the secondary traveling limit.<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;Three axes hardened/ground slideway at Rockwell C 45 degrees.<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;Table splash guard have retractable doors.<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;Column side guard.<br/>&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;FC 30 Castings weigh only 8360 lbs.<br/>&nbsp;&nbsp;&nbsp;&nbsp;2.5 HP German servo motor <br/>&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;joined with C5 ball screw with non-slip HTD timing belt and pulley.<br/>&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;All Acer EMC spindles contain 5 P4 precision angular contact ball bearings (NSK or FAG).<br/>&nbsp;&nbsp;&nbsp;&nbsp;Automatic arm type tool changer. ,<br/>&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;20 tool changer is standard.<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;Optional 16 or 24 tool changer.<br/>&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;10 HP spindle motor made in Germany.<br/>&nbsp;&nbsp;&nbsp;&nbsp;ACER electric cabinet is ready for more expansion.<br/>&nbsp;&nbsp;&nbsp;&nbsp;90 degree swing overhead control arm.</p>
<p>This unit is a brand new OEM machine</p>
<p>Global Machine Brokers is an OEM licensed distributor of ACER machines.</p>
<p> </p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;</p>
<p>The team at Global Machine Brokers will do the best we can to secure safe delivery of the machinery</p><br/><br/><p></p>
<h1 style="text-align: center;">Acer EMC-2240A Machining Center with ATC Featuring FAGOR Control</h1>
<ul>
<li><span style="background-color: initial;">FAGOR 8055i/A-MC Control</span></li>
<li>
<span style="background-color: initial;">Machining center includes:</span>
<ul>
<li><span style="background-color: initial;">Tool clamp/ unclamp button.</span></li>
<li><span style="background-color: initial;">Halogen light.</span></li>
<li>Four coolant nozzles splash the workpiece.</li>
<li>Retractable Z axis roller cover that blocks coolant and chips from entering the side ways.</li>
<li>Telescopic steel way cover.</li>
<li>Y, Z axes with square ways.</li>
<li>Hard stop limit switch which is also the secondary traveling limit.</li>
<li>Three axes hardened/ground slideway at Rockwell C 45 degrees.</li>
<li>Table splash guard have retractable doors.</li>
<li>Column side guard.</li>
</ul>
</li>
<li>FC 30 Castings weigh only 8360 lbs.</li>
<li>2.5 HP German servo motor
<ul>
<li>joined with C5 ball screw with non-slip HTD timing belt and pulley.</li>
</ul>
</li>
<li>All Acer EMC spindles contain 5 P4 precision angular contact ball bearings (NSK or FAG).</li>
<li>Automatic arm type tool changer. ,
<ul>
<li>20 tool changer is standard.</li>
<li>Optional 16 or 24 tool changer.</li>
</ul>
</li>
<li>10 HP spindle motor made in Germany.</li>
<li>ACER electric cabinet is ready for more expansion.</li>
<li>90 degree swing overhead control arm.</li>
</ul>
<p>This unit is a brand new OEM machine</p>
<p>Global Machine Brokers is an OEM licensed distributor of ACER machines.</p>
<p> </p>
<table border="0" cellpadding="0" cellspacing="0" width="436">
<tbody>
<tr>
<td><img border="0" height="500" src="http://www.aceronline.net/acergroup/images/spec/mc-spec01ha.gif" width="265"></td>
<td><img border="0" height="500" src="http://www.aceronline.net/acergroup/images/spec/mc-spemc2240aa.gif" width="171"></td>
</tr>
<tr>
<td><img border="0" height="200" src="http://www.aceronline.net/acergroup/images/spec/mc-spec01hb.gif" width="265"></td>
<td><img border="0" height="200" src="http://www.aceronline.net/acergroup/images/spec/mc-spemc2240ab.gif" width="171"></td>
</tr>
<tr>
<td class="foot" colspan="2">
<p align="justify"><img border="0" height="9" src="http://www.aceronline.net/acergroup/images/note.gif" width="30"> The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.</p>
</td>
</tr>
</tbody>
</table>
<p><meta charset="utf-8"><b id="docs-internal-guid-a2bf8ab6-3d85-3bac-fb5e-cd626ec0f966">The team at Global Machine Brokers will do the best we can to secure safe delivery of the machinery</b></p>
