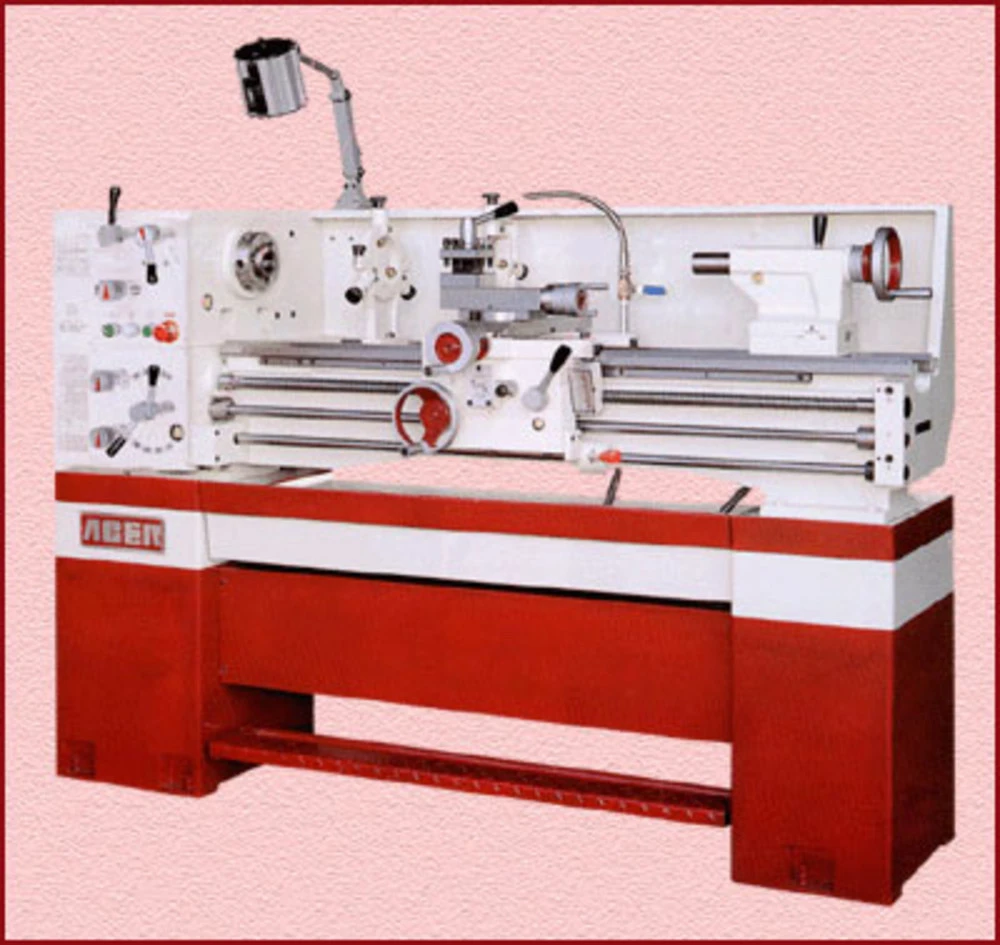

ACER DYNAMIC HIGH SPEED PRECISION LATHE DYNAMIC 1340G, New

Description

ACER DYNAMIC HIGH SPEED
PRECISION LATHE
Model:      DYNAMIC 1340G

HEADSTOCK: All gears are made with chromium molydenum steel and are hardened & ground to its accuracy. A forced lubrication system lubricates all running gears and bearing within the headstock.
• 1-1/2” Spindle Bore & D1-4 Camlock Spindle Nose
• 3HP Spindle Motor
GEAR BOX: Unique two lever universal gear box offers a wide range of cutting capacity. All ranges can be reached by moving two levers and two dials.
• Enclosed Gearbox and Feedscrew w/ Built-In Safety Overload Friction Clutch
• 9-Spindle Speed: 80 ~ 2,000 RPM
• Auto. Feed & Threading are interlocked to prevent simultaneous functions
SPINDLE: 1-1/2″ bored spindle is made from medium carbon steel and is induction hardened & ground to its final accuracy. It also has a two-point support with both bearings being taper roller.
• Spindle is equipped with Precision Taper Roller Bearings
APRON: Automatic feeding and threading in apron are fully interlocked to prevent simultaneous engagement of both functions.
• Hardened and Ground Bedway
TAILSTOCK: Keyed 1-7/16″ diametered quill is hardened to Rockwell C 55° & ground to its inspection accuracy.

- Nine-step speeds.
- Oil level indicator.
-Standard foot brake.
-24 volts safety control circuit.
-Weigh in at 1,320 / 1,380 lbs.
-Safety overload device.
-Forward/stop/reverse lever.
-Chip-pan (Removable type).
-Oil level indicator.
-Precision ground saddle ways.
-Half nut engagement handle.
-Hexagonal bed web.
-Oil lubricated leadscrew.
-7-1/2″ wide bed way with FC-30 casting iron.
-Two-tone automotive paint.

***
Manufacturer reserves the right to modify the design without notice.                                                                     Rev.
Feb. 2025

OPTIONAL ACCESSORIES:
1. 6” 3-Jaw Chuck D1-4……………………………………………………….​$​500.00
2. 8” 4-Jaw Chuck D1-4……………………………………………………….​$​500.00
3. “ALORIS” Tool Post & 4-Holder Set (#2-BS)……………………………..​$​1,080.00
4. “ALORIS” Tool Post & 6-Holder Set (#2 Set)..……………………………​$​1,450.00
5. “DORIAN” Tool Post & 4-Holder Set (SD30BXA-TS)…………………...​$​P.O.R.
6. Four Position Carriage Stop………………………………………………..​$​470.00
7. 5C Lever-Type Collet Closer (Installation Fee: $115 Net)………………...​$​1,495.00
8. 5C Collet Set - 17pcs (1/16” increment; 1/16” ~ 1-1/16”)…………………​$​770.00
9. Taper Turning Attachment (Installation Fee: $220 Net)…………………...​$​1,105.00
10. “NEWALL” 2-Axis D.R.O. (8” x 40” Travel)……………………………..​$​2,885.00
11. “MAGNASCALE” 2-Axis D.R.O. (8” x 40” Travel)……………………...​$​​P.O.R.
12. Installation Fee on NEWALL or MAGNASCALE DRO….………..​​$​495.00
13. Chuck Guard & Safety Switch……………………………………………..​$​450.00
14. Installation Fee on Chuck Guard & Safety Switch…………………...​​$​250.00
​
STANDARD ACCESSORIES:
10” Face Plate​Micrometer Stop
4-Way Tool Post​Rear Splash Guard Full Length​
Steady Rest Brass Tip 0.78” ~ 2.15” ​Built-In Coolant System​
Follow Rest Brass Tip 0.78” ~ 1.97” ​Halogen Work Light​
Foot Brake​Tool Box & Tools​

Shipping not includedShipping weight & Dims1,540 lbs 75" x 30" x 58"H
