Spühl Anderson SS-1BD New In 1998 Great Condition
Make: Spühl Anderson
Model: SS-1BD
230 Volt
3 Ph
60 Hz
3 Amp Circuit
70 CFM At 90 Psi

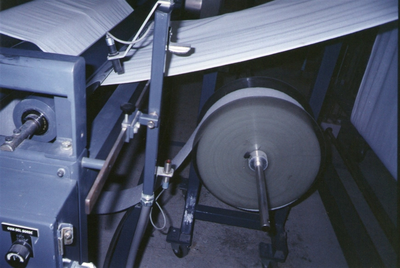

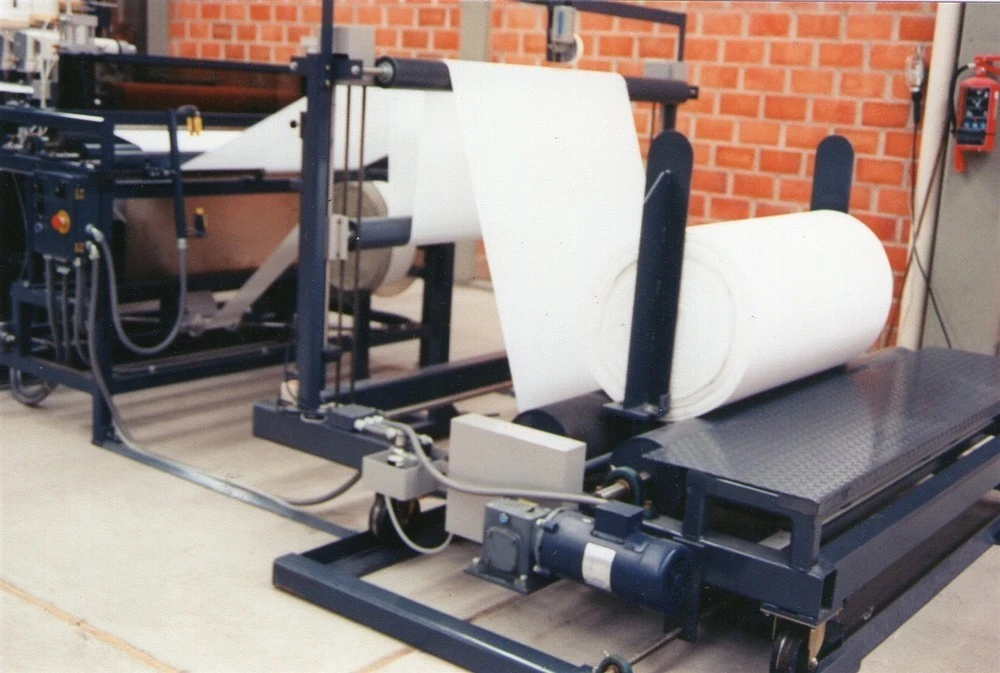

Power Infeed Cradle For One (Master) Roll Of Fabric 48" Max Width & 36" Max Diameter
Power Infeed Cradle For One (Soaker Roll) 6" Max Width, 36" Max Diameter
Edge Guide
Length Folder To Create Overlapping, Continuous Fold With Possibility Of Inserting Soaker
Can Be Entirely Bypassed If Folding Not Required
1st Sewing Station With 2 Right Hand Chain Stitch Sewing Heads(Type 401) To Sew In Fold Place
Dual Stage Pull Rolls Feed From Item 2 Into Dancer-Bar Accumulator
Measuring And Cutoff Station(Traversing Rotary Knife) Cuts Diaper To Length With +/- 1/8" Repeat ability
Outfeed Conveyor With Right Angle Transfer Station For Transfer Of Cut Pieces Into 2nd Sewing Station
2nd Sewing Station With Left And Right Hand Sergers(Type 514) And Upper And Lower Conveyor Belts To Carry The Diaper Between The Sergers
Left And Right Hand Mechanical Chain Cutters To Cut The Thread Chain Between Diapers
Electronic Thread Motion Detectors On All Sewing Heads
Unit Capable Of Pre-Folding Up To 35 Diapers Per Minute
Please Note Machine Located In Mexico; Rigging & Shipping Services Not Included In Asset Price
Weight: 20000
