ACER HIGH PRECISION SURFACE GRINDER AGS-2040AHD w/ Standard Accessories
Have one to sell?
$55,550.00 USD
ConditionNew
1 available
New

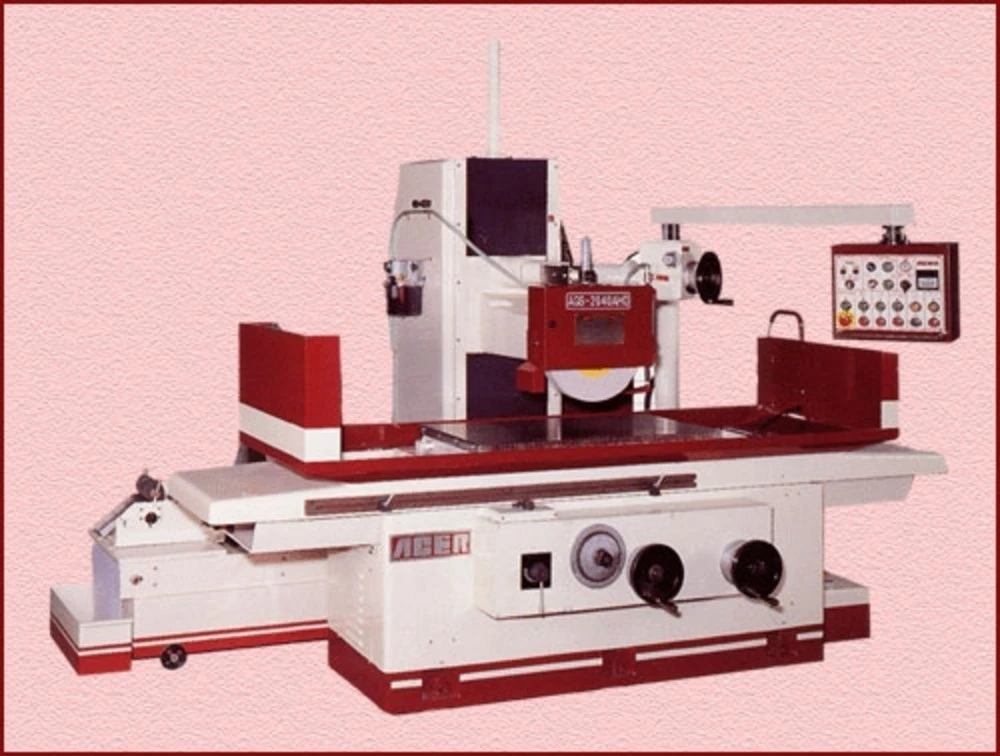

ACER HIGH PRECISION SURFACE GRINDER
Model: AGS-2040AHD w/ Standard Accessories $ 55,550.00
Features: (3-Axis Auto Movement)
Precision “Turcite-B” Ways
Hydraulic Table & Electronic Crossfeed
Crossfeed Column Movement
Auto Incremental Downfeed
Auto Lubricator, Rapid Elevation
Maximum Working Capacity: 20” x 40”
Price Includes:
Coolant System w/ Magnetic Separator & Paper Filter
Parallel Dresser
20” x 40” ACER Electro-Magnetic Chuck
Variable Chuck Control Master
Optional Accessories:
“WALKER” 20” x 40” Electro Fine Pole Chuck & Control $ 31,500.00
Extra Wheel Flange.……………………………………………………………….. $ 600.00
“NEWALL” 2-Axis D.R.O. (24” x 24” Travel, 0.0001” Resolution)..…............... $ 3,200.00
“MAGNESCALE” 2-Axis D.R.O. (24” x 24” Travel, 0.00002” Resolution)…..... $ P.O.R.
Bracket & Installation Fee for D.R.O……………………………………….. Net $ 500.00
Electric Overhead Dresser (Single Axis)…………………………………………. $ 2,500.00
Specifications:
Longitudinal Travel:
44”
Grinding Wheel:
16” x 2” x 5”
Cross Feed Travel:
22”
Vertical Graduation:
0.0001”
Spindle Center to Table:
23-5/8”
Vertical Revolution:
0.02”
Table Size:
20” x 40”
T-Slot:
3” x 9/16”
Wheel Speed:
1,Stevens Co. RPM
Table Speed:
16 - 80 ft./min.
Spindle Motor:
10 HP (V3)
Net Weight:
11,000 lbs.
Auto. Increment Downfeed:
Variable 10 Step (0.0002” - 0.002”)
Standard Accessories:
1 pc. Wheel Balancing Base 1 pc. Wheel Balancing Arbor
1 pc. Grinding Wheel 1 pc. Wheel Flange
1 pc. Manual Diamond Dresser 1 pc. Halogen Work Light
1 set Toolbox w/ Tools 1 set Splash Guard
Weight: 13200
Height: 88
Length: 148
Width: 88
