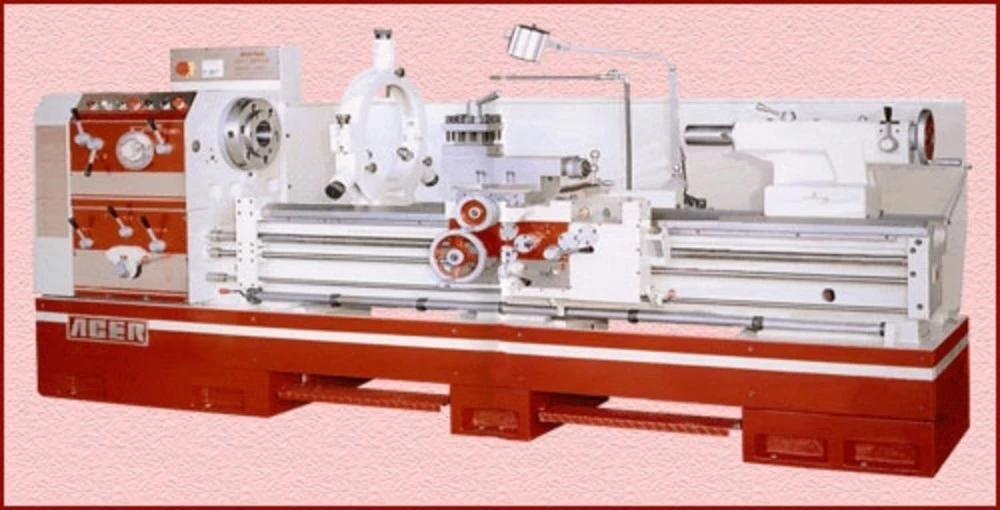

<p>ACER DYNAMIC “29” SERIES HIGH SPEED PRECISION LATHE</p>
<p> </p>
<p> </p>
<p>DYNAMIC 2960G $ 36,900.00 DYNAMIC 29120G $ 42,300.00</p>
<p>DYNAMIC 2980G $ 38,900.00 DYNAMIC 29160G $ 45,800.00</p>
<p> </p>
<p>Features:</p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;4-1/8” Spindle Bore with D1-11 Camlock Spindle Nose<br/>&nbsp;&nbsp;&nbsp;&nbsp;15 HP Spindle Speed Motor for 3 Phase 60HZ Wiring<br/>&nbsp;&nbsp;&nbsp;&nbsp;12-Spindle Speed: 25 ~ 1,200 RPM<br/>&nbsp;&nbsp;&nbsp;&nbsp;Hardened and Ground Meehanite Casting Bedway<br/>&nbsp;&nbsp;&nbsp;&nbsp;Hardened and Ground Gears and Spindle<br/>&nbsp;&nbsp;&nbsp;&nbsp;Headstock with Magnetic Clutch & Electric Brake<br/>&nbsp;&nbsp;&nbsp;&nbsp;Rapid Crossfeed & Carriage Traverse</p>
<p> </p>
<p>Optional Accessories:</p>
<p>1. 24” 4-Jaw Independent Chuck (D1-11) w/ Direct Mount………….. $ 4,520.00</p>
<p>(Made-In-Taiwan)</p>
<p>2. Follow Rest (0.4” ~ 3.4”)…………………………………………... $ 500.00</p>
<p>3. Face Plate ( 24” )………………………………………………........ $ 800.00</p>
<p>4. “ALORIS” Tool Post with 4-Holder Set (#5-BS)...………………... $ 2,000.00</p>
<p>5. “ALORIS” Tool Post with 6-Holder Set (#5-Set)...………………... $ 2,000.00</p>
<p>6. “DORIAN” Tool Post with 4-Holder Set (SD50DA-TS)…………... $ P.O.R.</p>
<p>7. Micrometer Stop……………………………………………………. $ 300.00</p>
<p>8. Six Position Carriage Stop………………………………………….. $ 400.00</p>
<p>9. Taper Turning Attachment………………………………………….. $ 1,850.00</p>
<p>10. Installation Fee for Taper Turning Attachment……………….. Net $ 500.00</p>
<p>11. “NEWALL” 2-Axis D.R.O. (16-1/2” x 60” Travel)……………..... $ 2,850.00</p>
<p>12. (16-1/2” x 80” Travel)………………. $ 3,400.00</p>
<p>13. (16-1/2” x 120” Travel)……………… $ 4,550.00</p>
<p>14. (16-1/2” x 160” Travel)……………… $ 5,550.00</p>
<p>15. “MAGNESCALE” 2-Axis D.R.O. (18” x 60”).……………………. $ P.O.R.</p>
<p>16. (18” x 80”)…..…………………. $ P.O.R.</p>
<p>17. Installation Fee for D.R.O (24” & 29” series)…………………Net $ 500.00</p>
<p> </p>
<p>Standard Accessories:</p>
<p>20” D1-11 Four Jaw Chuck 20” Face Plate</p>
<p>One Steady Rest (Bearing Type) Follow Rest</p>
<p>(3.1”-9.5” Long Tip) Longitudinal Carriage Stop</p>
<p>(7.8”-14.5” Short Tip) 16” Drive Plate</p>
<p>Followable Splash Guard (34” wide) Built-In Coolant System</p>
<p> (60”, 80” w/ Full Length Splash Guard) 4-Way Tool Post</p>
<p>Halogen Work Light Chuck Guard w/ Emergency Stop</p>
<p>12” Adaptor Plate Tool Box w/ Tools</p><br/><br/><p></p>
<p align="center" style="margin-bottom:6.0pt; text-align:center"><b><span style="font-size:14.0pt">ACER DYNAMIC “29” SERIES HIGH SPEED PRECISION LATHE</span></b></p>
<p class="MsoTitle"> </p>
<p class="MsoTitle"> </p>
<p style="margin-left:.5in"><span style="tab-stops:1.5in 153.0pt right 225.0pt left 256.5pt 333.0pt 405.0pt right 495.0pt"><b>DYNAMIC 2960G <u style="text-underline:double">$</u></b><b><u style="text-underline:double"> 36,900.00</u></b><b> DYNAMIC 29120G <u style="text-underline:double">$ 42,300.00</u></b></span></p>
<p style="margin-left:.5in"><span style="tab-stops:1.5in 153.0pt right 225.0pt left 256.5pt 333.0pt 405.0pt right 495.0pt"><b>DYNAMIC 2980G <u style="text-underline:double">$ 38,900.00</u> DYNAMIC 29160G <u style="text-underline:double">$ 45,800.00</u></b></span></p>
<p> </p>
<p style="margin-left:.5in"><b><u>Features:</u></b></p>
<ul>
<li><span style="tab-stops:.5in">4-1/8” Spindle Bore with D1-11 Camlock Spindle Nose</span></li>
<li><span style="tab-stops:.5in">15 HP Spindle Speed Motor for 3 Phase 60HZ Wiring</span></li>
<li><span style="tab-stops:.5in">12-Spindle Speed: 25 ~ 1,200 RPM</span></li>
<li><span style="tab-stops:.5in">Hardened and Ground Meehanite Casting Bedway</span></li>
<li><span style="tab-stops:.5in">Hardened and Ground Gears and Spindle</span></li>
<li><span style="tab-stops:.5in">Headstock with Magnetic Clutch & Electric Brake</span></li>
<li><span style="tab-stops:.5in"><span style="background:yellow">Rapid Crossfeed & Carriage Traverse</span></span></li>
</ul>
<p> </p>
<p style="margin-left:31.0pt"><b><u>Optional Accessories:</u></b></p>
<p style="margin-left:.75in"><span style="tab-stops:76.5pt 405.0pt right 495.0pt">1. 24” 4-Jaw Independent Chuck (D1-11) w/ Direct Mount………….. $ 4,520.00</span></p>
<p style="margin-left:.75in"><span style="tab-stops:76.5pt 405.0pt right 495.0pt">(Made-In-Taiwan)</span></p>
<p style="margin-left:.75in"><span style="tab-stops:76.5pt 405.0pt right 495.0pt">2. Follow Rest (0.4” ~ 3.4”)…………………………………………... $ 500.00</span></p>
<p class="MsoBodyTextIndent" style="margin-left:.75in"><span style="tab-stops:76.5pt 405.0pt right 495.0pt">3. Face Plate ( 24” )………………………………………………........ $ 800.00</span></p>
<p style="margin-left:.75in"><span style="tab-stops:76.5pt 405.0pt right 495.0pt">4. “ALORIS” Tool Post with 4-Holder Set (#5-BS)...………………... $ 2,000.00</span></p>
<p style="margin-left:.75in"><span style="tab-stops:76.5pt 405.0pt right 495.0pt">5. “ALORIS” Tool Post with 6-Holder Set (#5-Set)...………………... $ 2,000.00</span></p>
<p style="margin-left:.75in"><span style="tab-stops:76.5pt 405.0pt right 495.0pt">6. “DORIAN” Tool Post with 4-Holder Set (SD50DA-TS)…………... $ P.O.R.</span></p>
<p style="margin-left:.75in"><span style="tab-stops:76.5pt 405.0pt right 495.0pt">7. Micrometer Stop……………………………………………………. $ 300.00</span></p>
<p style="margin-left:.75in"><span style="tab-stops:76.5pt 405.0pt right 495.0pt">8. Six Position Carriage Stop………………………………………….. $ 400.00</span></p>
<p style="margin-left:.75in"><span style="tab-stops:76.5pt 405.0pt right 495.0pt">9. Taper Turning Attachment………………………………………….. $ 1,850.00</span></p>
<p style="margin-left:.75in"><span style="tab-stops:76.5pt 382.5pt 405.0pt right 495.0pt">10. Installation Fee for Taper Turning Attachment……………….. Net $ 500.00</span></p>
<p style="margin-left:.75in"><span style="tab-stops:76.5pt 405.0pt right 495.0pt">11. “NEWALL” 2-Axis D.R.O. (16-1/2” x 60” Travel)……………..... $ 2,850.00</span></p>
<p style="margin-left:.75in"><span style="tab-stops:211.5pt 405.0pt right 495.0pt">12. (16-1/2” x 80” Travel)………………. $ 3,400.00</span></p>
<p style="margin-left:76.5pt"><span style="tab-stops:211.5pt 405.0pt right 495.0pt">13. (16-1/2” x 120” Travel)……………… $ 4,550.00</span></p>
<p style="margin-left:76.5pt"><span style="tab-stops:211.5pt 405.0pt right 495.0pt">14. (16-1/2” x 160” Travel)……………… $ 5,550.00</span></p>
<p style="margin-left:76.5pt"><span style="tab-stops:2.75in 405.0pt right 495.0pt">15. “MAGNESCALE” 2-Axis D.R.O. (18” x 60”).……………………. $ P.O.R.</span></p>
<p style="margin-left:76.5pt"><span style="tab-stops:243.0pt 405.0pt right 495.0pt">16. (18” x 80”)…..…………………. $ P.O.R.</span></p>
<p style="margin-left:76.5pt"><span style="tab-stops:405.0pt right 495.0pt">17. Installation Fee for D.R.O (24” & 29” series)…………………Net $ 500.00</span></p>
<p><b><u> </u></b></p>
<p style="margin-left:.5in"><b><u>Standard Accessories:</u></b></p>
<p style="margin-left:.5in"><span style="tab-stops:bar -63.0pt left .5in 337.5pt">20” D1-11 Four Jaw Chuck 20” Face Plate</span></p>
<p style="margin-left:.5in"><span style="tab-stops:bar -63.0pt left .5in 337.5pt">One Steady Rest (Bearing Type) Follow Rest</span></p>
<p style="margin-left:.5in"><span style="tab-stops:bar -63.0pt left 112.5pt 337.5pt">(3.1”-9.5” Long Tip) Longitudinal Carriage Stop</span></p>
<p style="margin-left:.5in"><span style="tab-stops:bar -63.0pt left .5in 337.5pt">(7.8”-14.5” Short Tip) 16” Drive Plate</span></p>
<p style="margin-left:.5in"><span style="tab-stops:bar -63.0pt left .5in 337.5pt">Followable Splash Guard (34” wide) Built-In Coolant System</span></p>
<p><span style="tab-stops:bar -63.0pt left .5in 337.5pt"> (60”, 80” w/ Full Length Splash Guard) 4-Way Tool Post</span></p>
<p style="margin-left:.5in"><span style="tab-stops:bar -63.0pt left .5in 337.5pt">Halogen Work Light Chuck Guard w/ Emergency Stop</span></p>
<p style="margin-left:.5in"><span style="tab-stops:bar -63.0pt left .5in 337.5pt">12” Adaptor Plate Tool Box w/ Tools</span></p>
