<p>Acer Dynamic 24120G Lathe</p>
<p> </p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;Ampere meter for indicating power consumption.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Magnetic multiple-disc clutches in the headstock are used for efficient starting and reversing the spindle.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Manual jog button.<br/>&nbsp;&nbsp;&nbsp;&nbsp;12 speeds range from 25 to 1,200 RPM.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Oil flood indicator.<br/>&nbsp;&nbsp;&nbsp;&nbsp;One of the outside gears on the gear box is designed with a safety ring to protect it from damage.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Optional 2nd starting lever.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Drip-proof 15 HP spindle motor.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Magnetic disc brake with foot pedal allows for rapid control of the spindle rotation.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Hardened & ground bedways at Rockwell C 55å¡.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Electro-trochoid pump forces lubrication oil to all running parts outside of the headstock.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Handwheel with direct inch/metric reading micro-collar.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Precision ground cross slideways.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Saddle-lock device for heavy cutting.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Rapid four directional travel.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Safety clutched and longitudinal lead screw.<br/>&nbsp;&nbsp;&nbsp;&nbsp;4 TPI and oil bathed longintudinal lead screw.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Oil level indicator.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Forward/stop/reverse lever with safety device.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Multi-position length stop.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Removable chip pan.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Machine bed with FC-30 casting iron.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Machine weighs in at 7,150 / 7,810 / 8,690 / 9,570 / 7,650 / 8,310 / 9,190 / 10,070 lbs</p>
<p> </p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; <br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp; The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.</p><br/><br/><p></p>

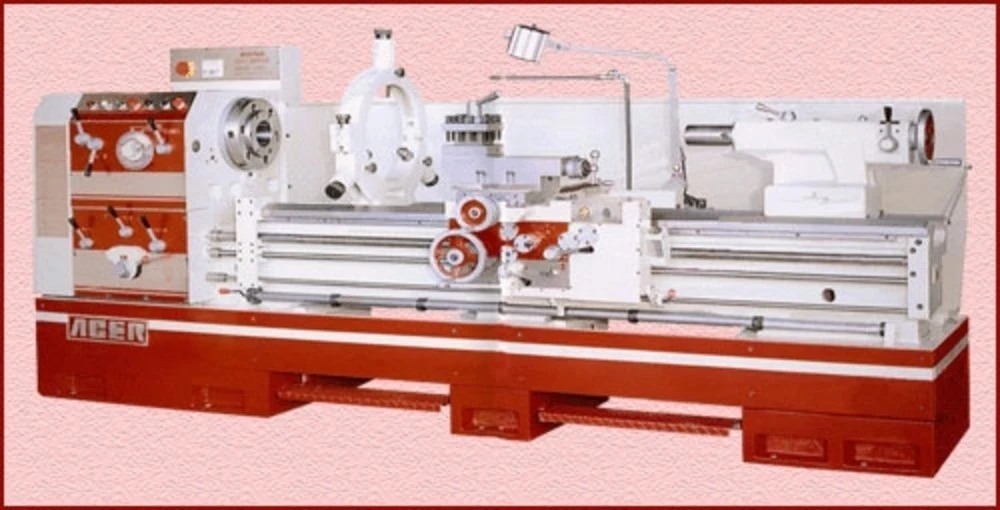

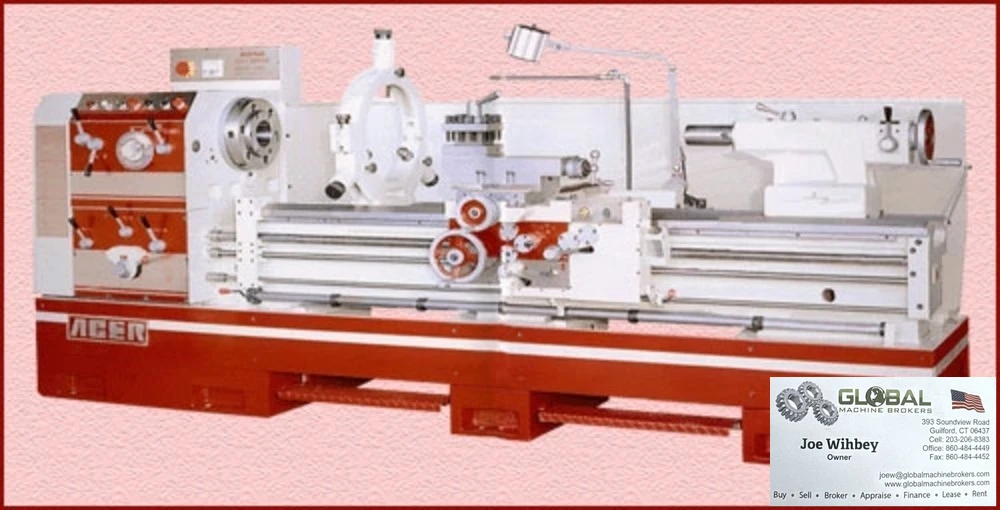

<h1 style="text-align: center;"><span style="background-color: initial;">Acer Dynamic 24120G Lathe</span></h1>
<p> </p>
<ul>
<li><span style="background-color: initial;">Ampere meter for indicating power consumption. </span></li>
<li><span style="background-color: initial;">Magnetic multiple-disc clutches in the headstock are used for efficient starting and reversing the spindle.</span></li>
<li><span style="background-color: initial;">Manual jog button. </span></li>
<li><span style="background-color: initial;">12 speeds range from 25 to 1,200 RPM.</span></li>
<li><span style="background-color: initial;">Oil flood indicator.</span></li>
<li><span style="background-color: initial;">One of the outside gears on the gear box is designed with a safety ring to protect it from damage.</span></li>
<li><span style="background-color: initial;">Optional 2nd starting lever.</span></li>
<li><span style="background-color: initial;">Drip-proof 15 HP spindle motor.</span></li>
<li><span style="background-color: initial;">Magnetic disc brake with foot pedal allows for rapid control of the spindle rotation.</span></li>
<li><span style="background-color: initial;">Hardened & ground bedways at Rockwell C 55å¡.</span></li>
<li><span style="background-color: initial;">Electro-trochoid pump forces lubrication oil to all running parts outside of the headstock.</span></li>
<li><span style="background-color: initial;">Handwheel with direct inch/metric reading micro-collar.</span></li>
<li><span style="background-color: initial;">Precision ground cross slideways.</span></li>
<li><span style="background-color: initial;">Saddle-lock device for heavy cutting. </span></li>
<li><span style="background-color: initial;">Rapid four directional travel.</span></li>
<li><span style="background-color: initial;">Safety clutched and longitudinal lead screw.</span></li>
<li><span style="background-color: initial;">4 TPI and oil bathed longintudinal lead screw.</span></li>
<li><span style="background-color: initial;">Oil level indicator.</span></li>
<li><span style="background-color: initial;">Forward/stop/reverse lever with safety device.</span></li>
<li><span style="background-color: initial;">Multi-position length stop.</span></li>
<li><span style="background-color: initial;">Removable chip pan. </span></li>
<li><span style="background-color: initial;">Machine bed with FC-30 casting iron.</span></li>
<li><span style="background-color: initial;">Machine weighs in at 7,150 / 7,810 / 8,690 / 9,570 / 7,650 / 8,310 / 9,190 / 10,070 lbs</span></li>
</ul>
<p> </p>
<table border="0" cellpadding="0" cellspacing="0" width="436">
<tbody>
<tr>
<td><img border="0" height="504" src="http://www.aceronline.net/acergroup/images/spec/el-spec01ha.gif" width="288"></td>
<td><img border="0" height="504" src="http://www.aceronline.net/acergroup/images/spec/el-spdyn24120ga.gif" width="158"></td>
</tr>
<tr>
<td><img border="0" height="401" src="http://www.aceronline.net/acergroup/images/spec/el-spec01hb.gif" width="288"></td>
<td><img border="0" height="401" src="http://www.aceronline.net/acergroup/images/spec/el-spdyn24120gb.gif" width="158"></td>
</tr>
<tr>
<td class="foot" colspan="2">
<p align="justify"><img border="0" height="9" src="http://www.aceronline.net/acergroup/images/note.gif" width="30"> The manufacturer reserves the right to modify the design, specifications, mechanisms, etc. to improve the performances of the machines without notice. All specifications shown above are for reference only.</p>
