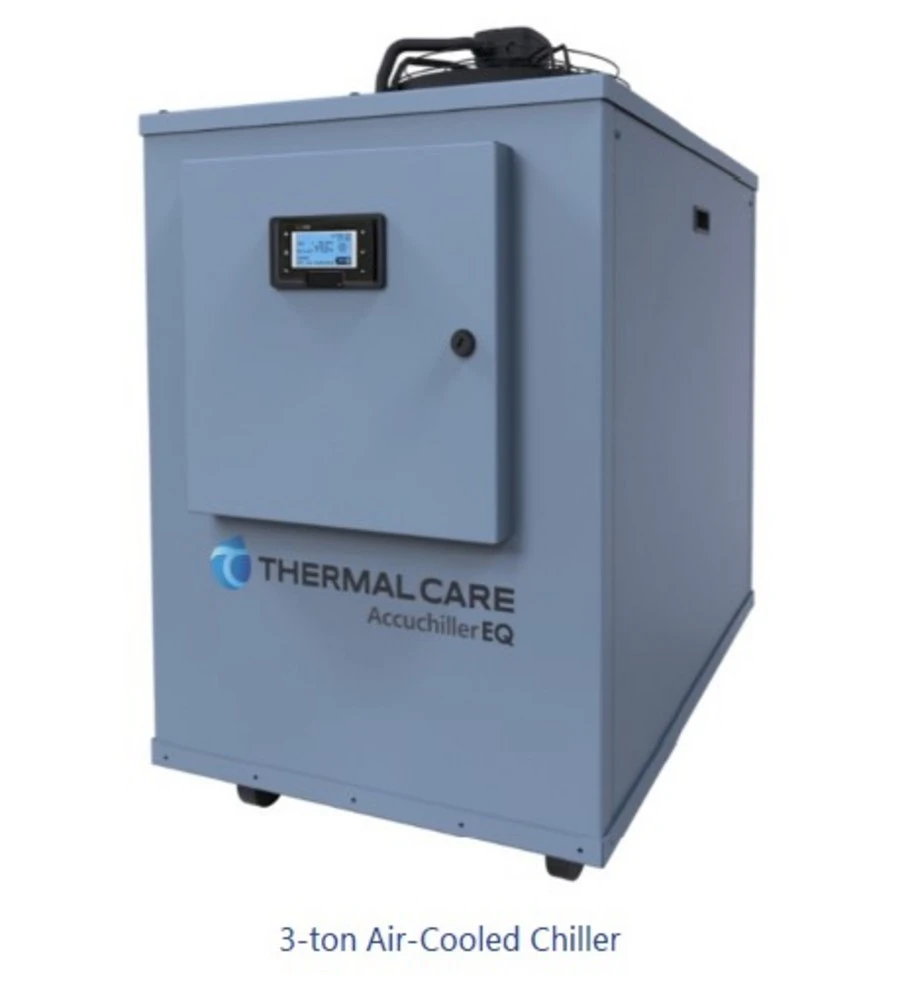

<p>Thermal Care EQ2A03 Accuchiller EQ Portable Chiller Voltage 460/3/60 Hz Tank and pump included</p>
<p>Make: Thermal Care</p>
<p>Model: EQ2A03</p>
<p>Accuchiller EQ Portable Chiller</p>
<p>Voltage - 460/3/60Hz</p>
<p>Nominal Cooling Capacity - 3 ton at 50°F LWT</p>
<p>Tank/Pump Options - Tank & Pump Included</p>
<p>Pump Size - 1.0 HP Pump</p>
<p>Alarm Horn - Included</p>
<p>Communication - Modbus RTU</p>
<p>Rotary Non-Fused Disconnect Switch - Rotary Non-Fused Disconnect Switch provides an integral, lockable disconnect switch.</p>
<p>C-UL508A Control Panel - C-UL508A Control Panel upgrades the control panel to C-UL508A standards. This is required for units going to Canada. Lead time extension is required.</p>
<p>Temperature Deviation Warnings and Alarms: A warning alerts the operator of a potential problem</p>
<p>before a fault occurs and if the condition gets worse, an alarm stops the chiller to prevent damage.</p>
<p>Deviation Alarm Time Delays: Provides an adjustable alarm time delay to deactivate the alarms long enough for the process loop to stabilize before the alarms are active.</p>
<p>Standard Features</p>
<p>Direct-Drive Scroll Compressors: Direct drive hermetically sealed scroll compressors with</p>
<p>proven performance in industrial cooling for reliable, low maintenance, and efficient operation.</p>
<p>Stainless Steel Evaporators: High-efficiency stainless steel plates with copper brazing</p>
<p>provide maximum performance, long life, and an enhanced level of corrosion protection for harsh process conditions.</p>
<p>Stainless Steel Pump: Stainless steel pump selected for peak performance with the utmost in corrosion protection to ensure a long useful life under severe industrial conditions.</p>
<p>Nonferrous Reservoir and Water Lines: The insulated reservoir, fluid lines, pumps, and other</p>
<p>components in the process fluid circuit will remain free of rust to provide maximum corrosion protection.</p>
<p>Evaporator Inlet Strainer: The evaporator inlet strainer removes any debris present in the process fluid to prevent costly downtime and repair due to a clogged chiller evaporator.</p>
<p>Compressor Protection Technology: Our compressor protection technology uses start-to-start</p>
<p>anti-recycle control logic to limit cycling under low-load operating conditions to extend compressor life.</p>
<p>Available Options</p>
<p>• Larger pumps</p>
<p>• Alarm horn</p>
<p>• Automatic make-up</p>
<p>• Rotary non-fused disconnect switch</p>
<p>• Branch circuit fusing</p>
<p>• C-UL508A industrial control panel</p>
<p>• Modbus TCP/IP communications</p>
<p>• High temperature set point (up to 80°F)</p>
<p>• Reservoir low level alarm</p>
<p>• Main power phase monitor and alarm</p>
<p>• Return fluid temperature display</p>
<p>Lead Time: 6-7 3 ton and 21 weeks 10 ton ARO</p>
<p>Warranty - continental U.SA., Canada and Puerto Rico - 12 months parts</p>
<p>Extended 5 Year Compressor Warranty - Extends the compressor parts</p>
<p>warranty for an additional four years. Excludes labor, refrigerant or other</p>
<p>chiller parts. Replacement compressors are shipped FCA, points of origin,</p>
<p>freight collect or freight prepaid and invoiced. $260.00</p><br/><br/><p></p>
