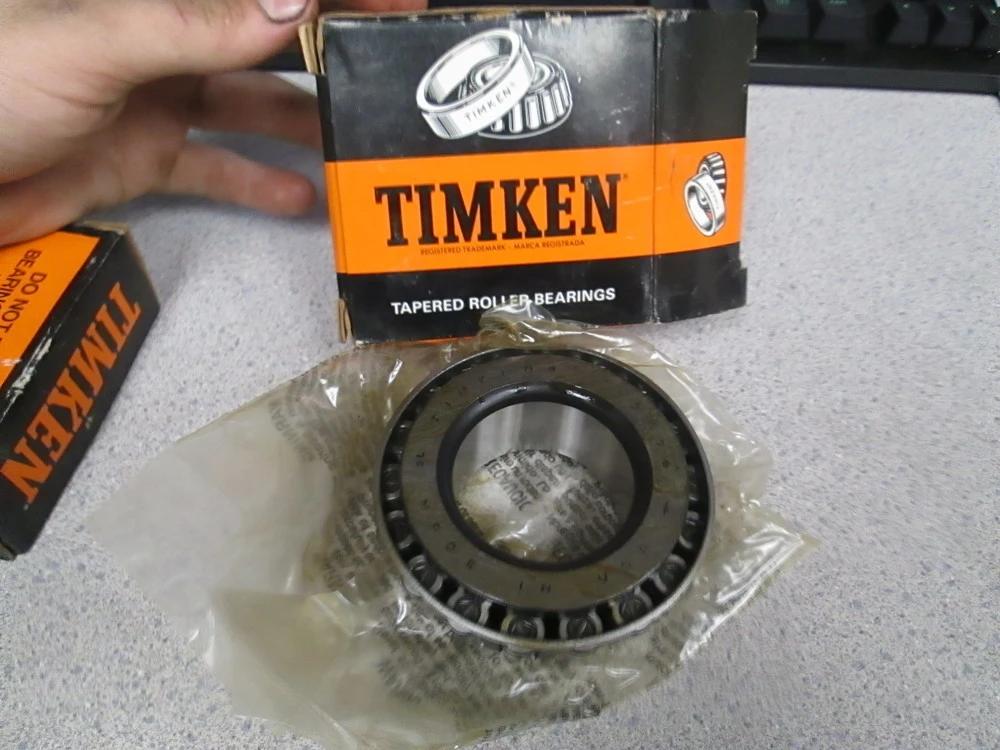

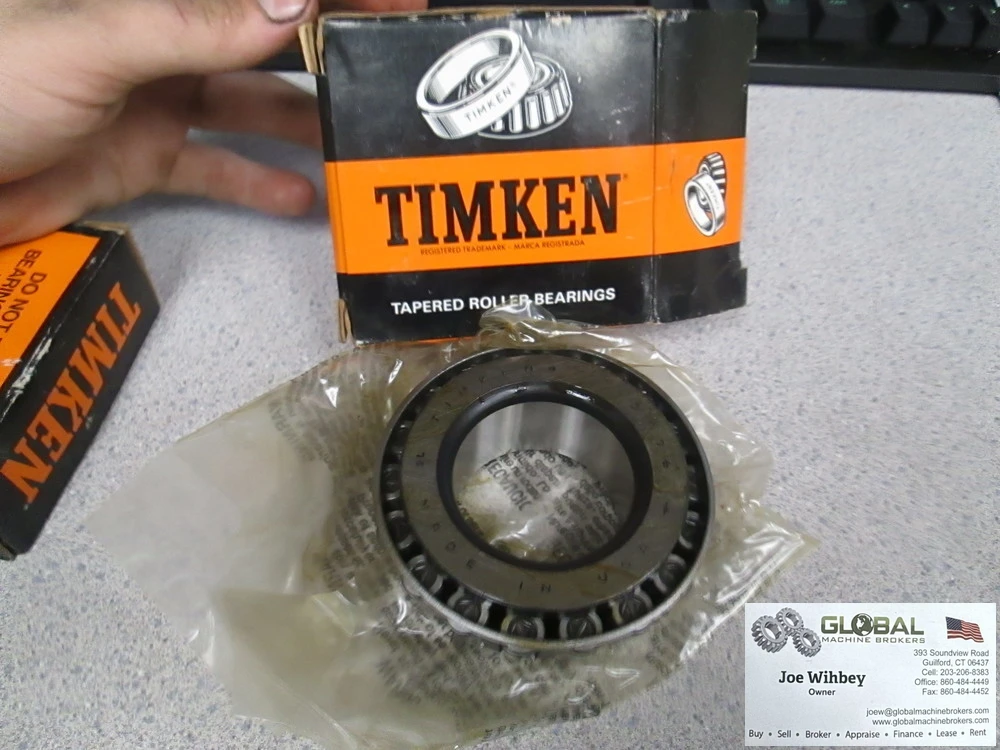

Timken 3776 Tapered Roller Bearings-Single Cones Imperial See Description, New
Have one to sell?
ConditionNew
1 available
$25.00 USD
New
Weight: 2
Height: 2
Length: 4
Width: 4
Make: Timken
Model: 3776
Condition: New
Series: 3700
Made In The USA
Cage Type: Stamped Steel
This Is the most basic and most widely used type of tapered roller bearing. it consists of two main separable parts: the cone (inner Ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft
C1- Dynamic radial rating(Two-Row, 1 million revolutions): 47800LBF 23000N
C90(2) - Dynamic radial rating (two-Row, 90 million Revolutions): 12400LBF 55100N
Dimensions:
D- Cone Bore: 1.7710"
B - Cone Width: 1.1930"
R - Cone Backface "To clear" Radius: 0.140"
Da - Cone Front Face Backing Diameter: 2.90"
Db: Cone Backface Backing Diameter: 2.32"
Ab - Cage- Cone Front Face Clearance: 0.06"
Aa - Cage - Cone Back Face Clearance: 0.06"
A - Effective Center Location: -0.32"
Basic Load Ratings:
C1 Dynamic Radial Rating: 27500Lbf 122000N
C0 Static Radial Rating: 34300LBf 153000N
Ca90 Dynamic Thrust Rating: 4120Lbf 18300N
For Full Information Document Click Here: https://cad.timken.com/Asset/Tapered-Single-Roller-Bearings---TS-Engineering.pdf
2 In Stock And Available Immediately
Imperial
| Dimensions | 4x4x2 |
| Weight | 2 |
Weight: 2
Height: 2
Length: 4
Width: 4
