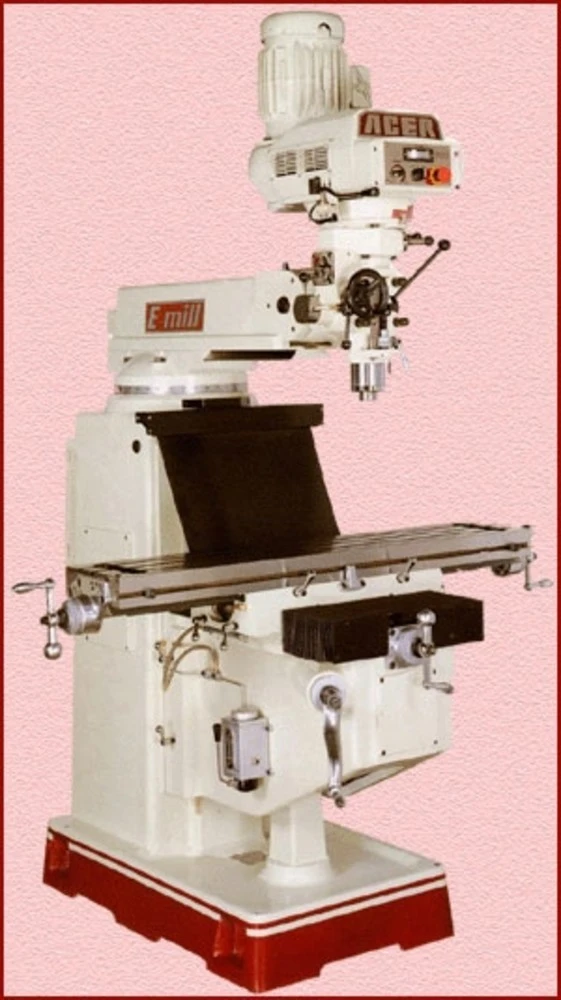

<p>ACER<br>VERTICAL MILLING MACHINE </p>
<p> Model: E-millÔ 3VKH (10” x 50” Table) w/ Standard Accessories $ 15,750 Subject to Ocean Freight Surcharge</p>
<p>Features:<br>3 HP Spindle Inverter Motor & Frequency Inverter Drive<br> <br>Large Digital Spindle RPM Display<br><br>Spindle is designed not to turn on automatically when<br>power is restored after power failure<br> <br>Precision<br>Grinding Head Housing & Rigid Meehanite GA-50 Casting<br><br>Precision R8 Spindle with ABEC-7 Bearings<br><br>Precision X, Y Axes & Knee by Hardened & Ground Square Ways to HRC 52° </p>
<p>Optional Accessories:</p>
<p>1. <br>“NEWALL” 2-Axis DRO<br>(16”x36” travel, .0002” Res. Scale)..…………… $ 2,945.00<br>Installation: $245.00</p>
<p>2. Longitudinal/Cross/Knee Power Feed……………..…… $785.00/900.00/900.00</p>
<p>3.“SERVO” Longitudinal Feed (M-9121-140 / M-9108-150X)… $ 1,710.00</p>
<p>4. “SERVO” Cross Feed (M-9521-140 / M-9521-150)….......... $2,185.00</p>
<p>5.“SERVO” Knee Feed (M-9811-200).…………………................. $1,575.00</p>
<p>6. Installation Fee: Cross Feed / Knee Feed……………………. Net $200.00/300.00</p>
<p>7. 12” Rotary Table (Vertical & Horizontal) ………………………………….. $1235.00</p>
<p>8. Coolant System (Not Installed); Installation Fee:$100...………$750.00</p>
<p>9. Chip Pan (52” x 35” x 6”, 55 LBS)…………………………………………. $550.00</p>
<p>10. Clamping Kits (52 pieces.)………………………………………………….. $250.00</p>
<p>11. R-8 Collet Set (11pcs/set with 1/8” increment; 1/8” ~3/4”). $285.00</p>
<p>12. 6” Angle Lock Milling Vise………………………………………………… $725.00</p>
<p>13. Horizontal Milling Attachment……………………………………………… $1,685.00</p>
<p>14. “Maxi-Torque” Auto-Air Power Draw Bar (Not Installed)….…………$940.00</p>
<p>15. Installation Fee for Auto-Air Power Draw Bar………………………… $130.00</p>
<p>16. N.S.T. #30 Spindle Taper (Replace R-8 Spindle)…………………………… $825.00</p>
<p>17. Riser Block (4”/6”/8”) Installation Fee: $250………………$800.00/900.00/900.00</p>
<p>18. Halogen or LED-L95 Work Light…………………….……………………. $350.00</p>
<p>19. 10” x 54” Table Upgrade………………………………………………. $440.00</p>
<p>20. Upgrade Frequency Inverter 440V / 3-Phase………….………………..$480.00</p>
<p>21. Upgrade to UL Conformity Electric Cabinet…………………………... $1050.00 </p>
<p>Specifications:</p>
<p>Table Size: 10” x 50” (10” x 54”) <br>Quill Power Rate: 0.0015” 0.003”, 0.006” / Rev.<br>Longitudinal Traverse: 32-1/2” (or 36-1/2”)<br>Cross Traverse: 17”<br>Spindle Taper: R-8<br>Ram Traverse: 20”<br>Spindle Motor: 3 HP Inverter Motor<br>Vertical Traverse: 19”<br>Spindle Speed:<br>Variable Speed 0 ~ 500 ~ 4,500 RPM<br>Quill Travel: 5”<br>Quill Diameter Chromed: 3-3/8”<br>Net Weight: 3,300 lbs. <br> Ø Special Package Price $ 18,850.00</p>
<p>Includes:<br> 3VKH E-millÔ + “NEWALL” 2-Axis DRO (16” x 36” Travel, 0.0002” Scale) and “A CLASS”<br>Longitudinal Power Feed Installed at ACER Warehouse.</p>
<p> *** Machine is subject to ocean freight surcharge.</p>
<p>*** Above Prices are based on F.O.B. Piscataway, N.J.</p>
<p>*** Prices and designs are subject to change without notice.</p>
<p>*** Manufacturer reserves the right to modify the design without notice. <b><u><span style="font-size:11.0pt">Features:</span></u></b><br></p>
<p><span style="font-size:11.0pt;font-family:
Wingdings;mso-fareast-font-family:Wingdings;mso-bidi-font-family:Wingdings">§<span style="font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 7pt; line-height: normal; font-family: "Times New Roman";">
</span></span><!--[endif]--><b><span style="font-size:11.0pt">3 HP Spindle Inverter Motor & Frequency Inverter
Drive</span></b></p>
<p><!--[if !supportLists]--><span style="font-size:11.0pt;font-family:
Wingdings;mso-fareast-font-family:Wingdings;mso-bidi-font-family:Wingdings">§<span style="font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 7pt; line-height: normal; font-family: "Times New Roman";">
</span></span><!--[endif]--><b><span style="font-size:11.0pt">Large Digital Spindle RPM Display</span></b></p>
<p><!--[if !supportLists]--><span style="font-size:11.0pt;
font-family:Wingdings;mso-fareast-font-family:Wingdings;mso-bidi-font-family:
Wingdings">§<span style="font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 7pt; line-height: normal; font-family: "Times New Roman";">
</span></span><!--[endif]--><b><span style="font-size:11.0pt">Spindle is designed not to turn on automatically when
power is restored after power failure</span></b></p>
<p><!--[if !supportLists]--><span style="font-size:11.0pt;font-family:
Wingdings;mso-fareast-font-family:Wingdings;mso-bidi-font-family:Wingdings">§<span style="font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 7pt; line-height: normal; font-family: "Times New Roman";">
</span></span><!--[endif]--><span style="font-size:11.0pt">Precision
Grinding Head Housing & Rigid Meehanite GA-50 Casting</span></p>
<p><!--[if !supportLists]--><span style="font-size:11.0pt;font-family:
Wingdings;mso-fareast-font-family:Wingdings;mso-bidi-font-family:Wingdings">§<span style="font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 7pt; line-height: normal; font-family: "Times New Roman";">
</span></span><!--[endif]--><span style="font-size:11.0pt">Precision <b>R8 Spindle</b> with ABEC-7 Bearings</span></p>
<p><!--[if !supportLists]--><span style="font-size:11.0pt;font-family:
Wingdings;mso-fareast-font-family:Wingdings;mso-bidi-font-family:Wingdings">§<span style="font-variant-numeric: normal; font-variant-east-asian: normal; font-stretch: normal; font-size: 7pt; line-height: normal; font-family: "Times New Roman";">
</span></span><!--[endif]--><span style="font-size:11.0pt">Precision X, Y
Axes & Knee by Hardened & Ground Square Ways to <stockticker w:st="on">HRC</stockticker>
52</span><span style="font-size:11.0pt;font-family:Symbol">°</span><span style="font-size:11.0pt"></span></p>
