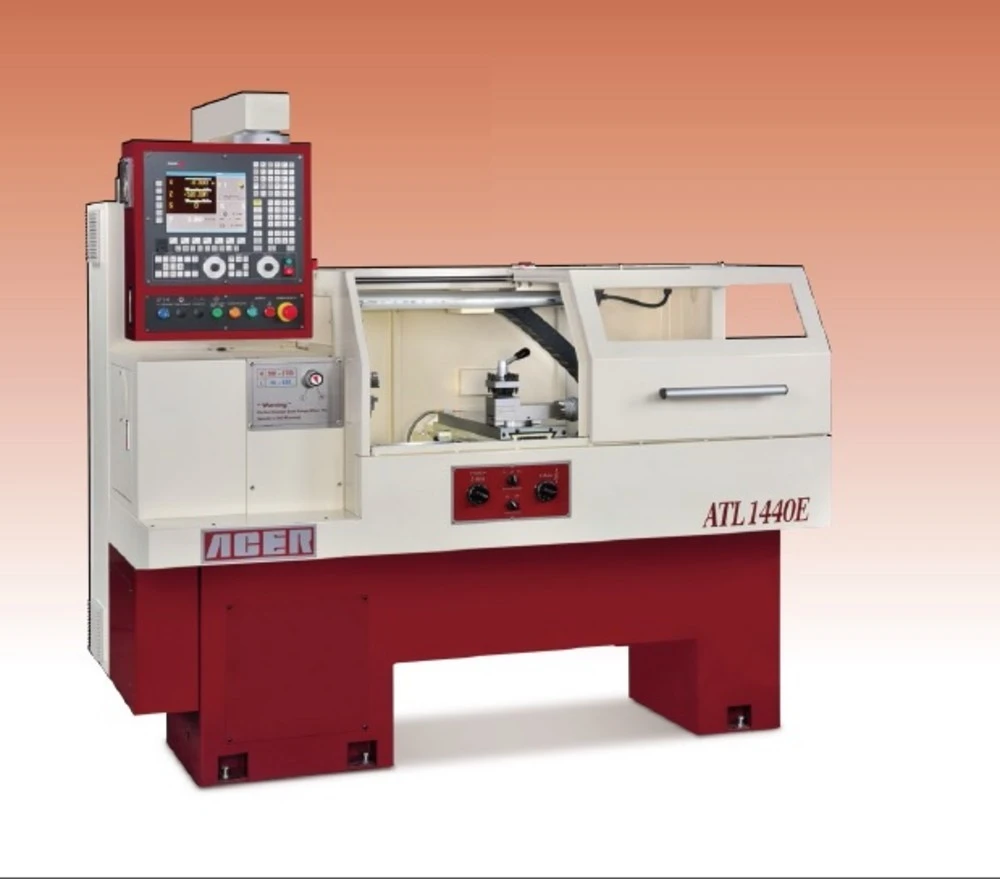

<h1 style="text-align: center;">Acer ATL-1440E 14"Swing Flat Bed CNC Teach Lathe W/Fagor 8055 i/A-TC Control</h1>
<p>Make: Acer</p>
<p>Model: ATL-1440E</p>
<p>Controls: Fagor 8055 i/A-TC</p>
<p>Swing Over Bed: 14"</p>
<p>Swing Over Cross Slide: 8-3/4"</p>
<p>Swing Over Saddle Wings: 14.17"</p>
<p>Height Of Centers: 7"</p>
<p>Distance Between Centers: 39.37"</p>
<p>Spindle Nose: D1-4 Or A1-5</p>
<p>Spindle Taper: MT#5</p>
<p>Spindle Dia At Front Bearing: 2.77"</p>
<p>Spindle Through Hole: 1-9/16"</p>
<p>Taper In Reduction Sleeve: MT#3</p>
<p>Number Of Spindle Bearing: 2</p>
<p>Number Of Speed Range: 2</p>
<p>Spindle Speed Range Rpm: 60-650/300-2700</p>
<p>Cross Slide Travel: 7.87"</p>
<p>Compound Rest Travel" 3.94"</p>
<p>Tool Section Max: 3/4" X 3/4"</p>
<p>Bed Length: 54"</p>
<p>Width Of Bed: 9"</p>
<p>Height Of Bed: 10.63"</p>
<p>Slideway Surface Hardness: HRC 48</p>
<p>Quill Outer Diameter: 1-9/16"</p>
<p>Quill Travel: 4"</p>
<p>Taper Of Center: MT#3</p>
<p>Max Rapid Feed Z (IPM) 400 Ipm</p>
<p>Max Rapid Feed X (IPM) 400 Ipm</p>
<p>Spindle Motor Brake W/Servo Motor</p>
<p>Splash Lube Headstock Lubrication</p>
<p>Coolant Tank Capacity: 5.78 Gal</p>
<p>1/8 Hp Coolant Pump Motor</p>
<p>5 Hp Spindle Motor/ 7.5 Hp (30 Min)</p>
<p>Power Requirements: 230/460V</p>
<p>3Ph</p>
<h2>Standard Accessories:</h2>
<ul>
<li>5HP Servo Drive Spindle Motor</li>
<li>High-Low Speed Range Selection</li>
<li>Canned Cycles</li>
<li>Semi-enclosure Splash Guard</li>
<li>Coolant System</li>
<li>Tailstock</li>
<li>Dead Centers</li>
<li>Leveling Pads with Screws</li>
<li>Tool Box with tools</li>
<li>Operational Manual</li>
<li>Dual Manual Pulse Generator</li>
<li>Halogen Light</li>
</ul>
<h2>Optional Accessories:</h2>
<ul>
<li>6” 3 Jaw Chuck</li>
<li>8”/10” 4 Jaw Chuck</li>
<li>Roller Follow Rest</li>
<li>Roller Steady Rest</li>
<li>Faceplate: 10”, 12”</li>
<li>5C Collet Closer</li>
<li>Quick Change Tool Post</li>
<li>Remote Stop/Go Switch (Must be installed at factory!)</li>
<li>Electric 4 Way Tool Post (Must be installed at factory!)</li>
<li>Full Enclosure Splash Guard (Must be installed at factory!)</li>
</ul>
