ACER HIGH PRECISION SURFACE GRINDER AGS-2448AHD w/ Standard Accessories
Have one to sell?
$108,600.00 USD
ConditionNew
1 available
New

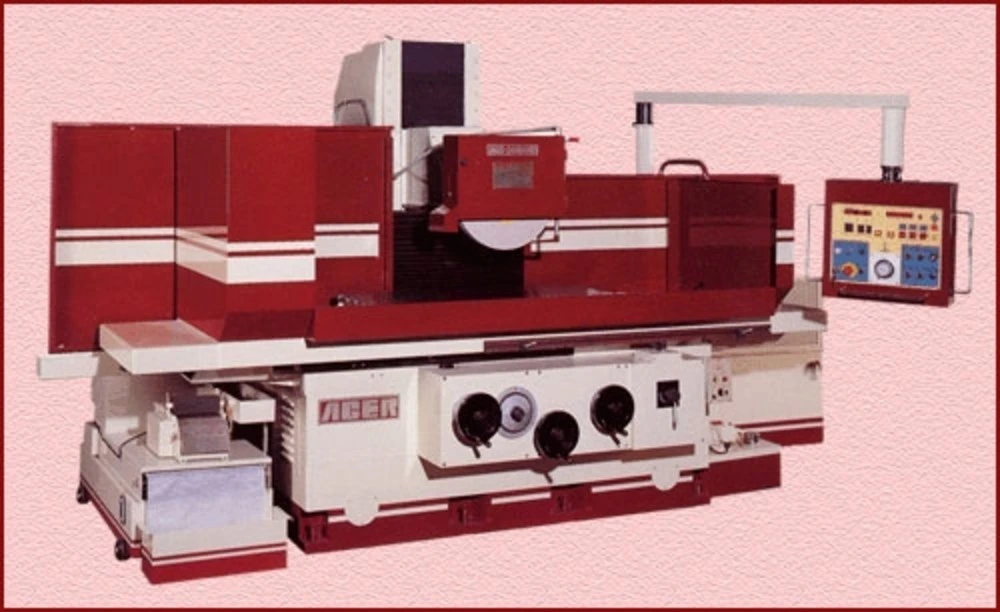

ACER HIGH PRECISION SURFACE GRINDER
Model: AGS-2448AHD w/ Standard Accessories $ 108,600.00
Features: (3-Axis Auto Movement)
Precision “Turcite-B” Ways; Column Movement
Double-Vee X, Y Ways
Hydraulic Table & Electronic Crossfeed w/ Ball Screw
Auto Incremental Downfeed
Auto Lubricator, Rapid Elevation
Maximum Working Capacity: 24” x 48”
w/ NC Downfeed
Price Includes:
Coolant System w/ Magnetic Separator & Paper Filter
23-1/2” x 47-1/4” Electro-Magnetic Chuck
Variable Chuck Control Master
Optional Accessories:
1. Extra Wheel Flange………………………………………………………………... $ 700.00
2. Electric Overhead Dresser (2-Axis / Factory Installed Only……………………… $ 4,800.00
3. Hydraulic Overhead Dresser (1-Axis / Factory Installed Only………….….......... $ 2,000.00
4. “NEWALL” 2-Axis D.R.O. (28” x 34” Travel, 0.0001” resolution)……………… $ 3,400.00
5. “MAGNESCALE” 2-Axis D.R.O. (28” x 34” Travel, 0.00002” resolution)……... $ P.O.R.
6. Bracket & Installation Fee for D.R.O…………………………….…………. Net $ 550.00
Specifications:
Longitudinal Travel:
52”
Grinding Wheel:
20” x 2” x 5”
Cross Feed Travel:
24-1/2”
Vertical Graduation:
0.0005”
Spindle Center to Table:
33”
Vertical Revolution:
0.05”
Table Size:
24” x 48”
T-Slot:
1” x 9/16”
Spindle RPM
1,150 RPM
Table Speed: Hydraulic
16 - 80 ft./min.
Spindle Motor:
15 HP (V3)
Net Weight:
15,070 lbs.
Standard Accessories:
1 pc. Wheel Balancing Base 1 pc. Wheel Balancing Arbor
1 pc. Grinding Wheel 1 pc. Wheel Flange
1 pc. Manual Diamond Dresser 1 pc. Halogen Work Light
1 set Toolbox w/ Tools 1 set Splash Guard
Weight: 16500
Height: 103
Length: 138
Width: 119
