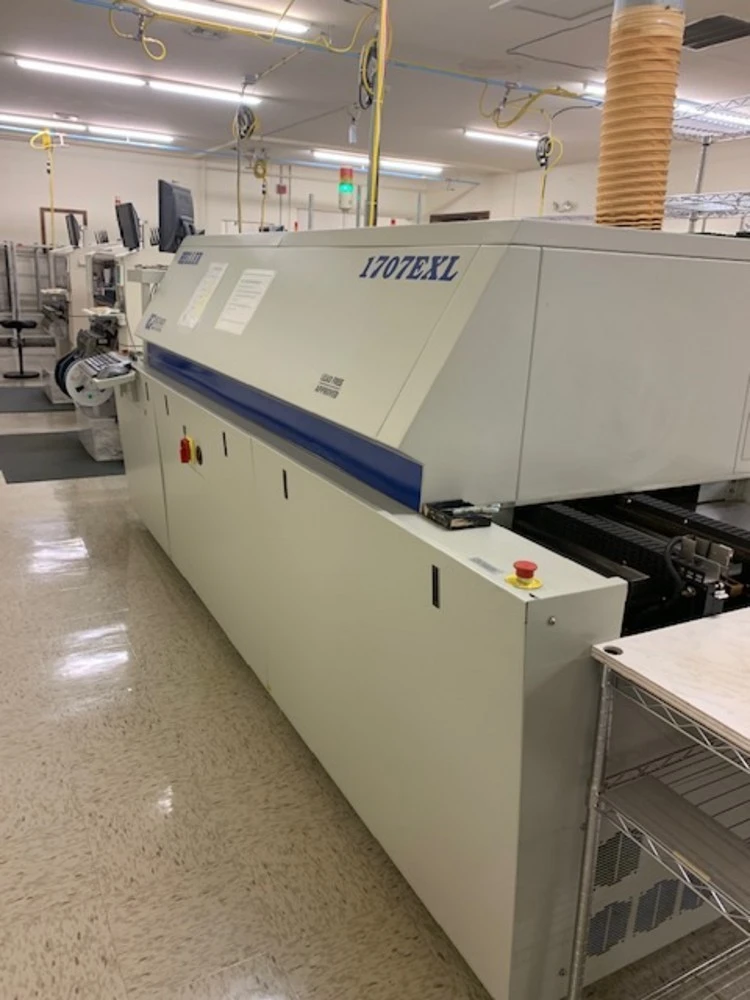

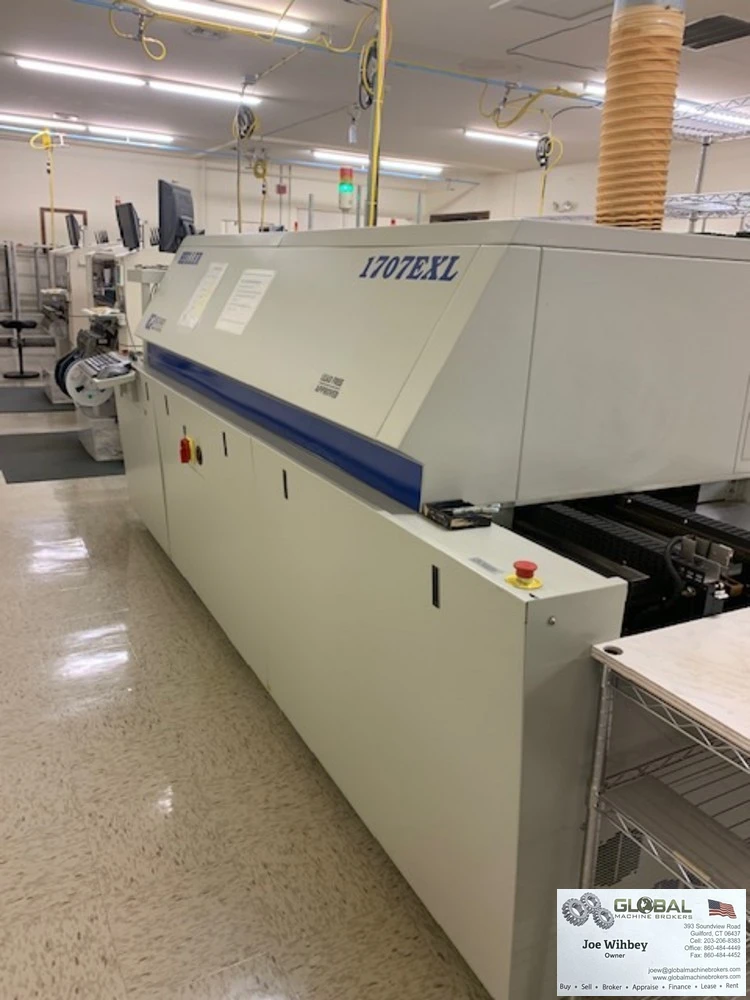

Heller 1707EXL Lead Free Reflow Oven

Address: 393 Soundview Road,, Guilford, CT, 06437, US
Telephone: 860-484-4449

Have one to sell?

1-860-484-4449

joew@globalmachinebrokers.com

$19,500.00 USD

ConditionUsed

Quantity

1 available

Heller 1707EXL Ovens & Furnaces | Global Machine Brokers, LLC (1)

Heller 1707EXL Ovens & Furnaces | Global Machine Brokers, LLC (2)

Heller 1707EXL Ovens & Furnaces | Global Machine Brokers, LLC (3)

Heller 1707EXL Ovens & Furnaces | Global Machine Brokers, LLC (4)

Heller 1707EXL Ovens & Furnaces | Global Machine Brokers, LLC (5)

Heller 1707EXL Ovens & Furnaces | Global Machine Brokers, LLC (6)

Heller 1707EXL Ovens & Furnaces | Global Machine Brokers, LLC (7)

Heller 1707EXL Ovens & Furnaces | Global Machine Brokers, LLC (8)

Heller 1707EXL Ovens & Furnaces | Global Machine Brokers, LLC (9)

Heller 1707EXL Ovens & Furnaces | Global Machine Brokers, LLC (10)

Heller 1707EXL Ovens & Furnaces | Global Machine Brokers, LLC

Have one to sell?

Overview

Type:

Ovens & Furnaces

Manufacturer:

Heller

Model:

1707EXL

Condition:

Good

Stock #:

20890

Status:

For Sale

Description

Heller 1707EXL Lead Free Reflow OvenMake: HellerModel 1707EXL208-240 V70 Amps3 Phase50/60 HzLargest heater load 25 AShort Circuit InteruptingCapacity 5000 AManufactured Aug 2008Assembled in ChinaCorporate Headquarters New Jersey USAComing offline in April 2023 and still under power and in use!
Specifications taken from the internet and need to be verified:Heller 1707-EXL Specifications:

*Power Input (3 Phase)
- Standard 208/240 VAC
*Breaker Size
- 100 amps @ 208/240 VAC
*Optional Power Inputs Available
- 380/400/415/480 VAC

Overall Length - 134"
Overall Width - 54"
Overall Height - 63"
Typical Net Weight - 3000 lbs.
Operating System - Windows XP®
Waterless Cooling w/ Flux Separation System - Optional
Typical Nitrogen Consumption - 700 to 900 SCFH*

Center Board Support - Optional
Height from Floor – Standard 35.5" ± 2.0"
Clearance Above Conveyor Pins - 1.15"
Clearance Below Conveyor Pins - 1.15"
Length of PCB Support Pins - .187"
Minimum/Maximum Board Width - 2" - 20"
Power Width Adjustment - Standard
Computer Controlled Width Adjust - Optional
Auto Lubrication System - Standard
Top Heating Zones - Seven (7)
Bottom Heating Zones - Seven (7)
Number of Cooling Zones - One Standard
Heater Type - Instant Response Open Coil
Heater Material - Nichrome
Temperature Range - 25-350° C - Standard
High Temperature Up to 450° C - Optional

The 1707 EXL supports high mix / medium volume throughput… at speeds up to 24 inches
(60 centimeters) per minute, while conserving valuable factory floor space. Rapid response
times and precise temperature controls assure process uniformity, regardless of component
density or board loading, with identical profile performance in either air or nitrogen.
The Model 1707 EXL combines sophisticated design elements with the engineering expertise and
reflow technology leadership you've come to expect from Heller Industries:
Highest Yields and Tight Process Control
• The most efficient heat transfer from extra high volume, high-velocity, heating
modules, producing heater module response of less than one second to
temperature changes of less than 0.1°C, thereby maintaining profile integrity for
heavy board loads.
• Wide process window for "universal profiling" — allows many different boards to
be run on a single temperature profile
• Included with every system:
• Advanced 3 thermocouple PCB profiling and process parameter logging
capability with the capacity to store up to 500 temperature recipes and 500
profile graphs
• Cpk software — “real-time” Cpk calculation shows oven performance and
repeatability and gives Cpk data for each zone and the entire oven — a Heller
exclusive!
Lowest Cost of Ownership
• Computer-controlled automatic lubrication system for "hands-off" maintenance
• Optional flux separation system removes up to 95% of flux from the oven
tunnel — virtually eliminating maintenance and protecting the environment
• Pure forced convection design saves nitrogen — with consumption levels as
low as 700 SCFH at 500 PPM*
• Low KW design saves electricity and reduces warm up and profile changeover time

Long Description

<h1>Heller 1707EXL Lead Free Reflow Oven</h1> Make: Heller Model 1707EXL 208-240 V 70 Amps 3 Phase 50/60 Hz Largest heater load 25 A Short Circuit Interupting Capacity 5000 A Manufactured Aug 2008 Assembled in China Corporate Headquarters New Jersey USA Coming offline in April 2023 and still under power and in use! Specifications taken from the internet and need to be verified: Heller 1707-EXL Specifications: *Power Input (3 Phase) - Standard 208/240 VAC *Breaker Size - 100 amps @ 208/240 VAC *Optional Power Inputs Available - 380/400/415/480 VAC Overall Length - 134" Overall Width - 54" Overall Height - 63" Typical Net Weight - 3000 lbs. Operating System - Windows XP® Waterless Cooling w/ Flux Separation System - Optional Typical Nitrogen Consumption - 700 to 900 SCFH* Center Board Support - Optional Height from Floor – Standard 35.5" ± 2.0" Clearance Above Conveyor Pins - 1.15" Clearance Below Conveyor Pins - 1.15" Length of PCB Support Pins - .187" Minimum/Maximum Board Width - 2" - 20" Power Width Adjustment - Standard Computer Controlled Width Adjust - Optional Auto Lubrication System - Standard Top Heating Zones - Seven (7) Bottom Heating Zones - Seven (7) Number of Cooling Zones - One Standard Heater Type - Instant Response Open Coil Heater Material - Nichrome Temperature Range - 25-350° C - Standard High Temperature Up to 450° C - Optional The 1707 EXL supports high mix / medium volume throughput… at speeds up to 24 inches (60 centimeters) per minute, while conserving valuable factory floor space. Rapid response times and precise temperature controls assure process uniformity, regardless of component density or board loading, with identical profile performance in either air or nitrogen. The Model 1707 EXL combines sophisticated design elements with the engineering expertise and reflow technology leadership you've come to expect from Heller Industries: Highest Yields and Tight Process Control • The most efficient heat transfer from extra high volume, high-velocity, heating modules, producing heater module response of less than one second to temperature changes of less than 0.1°C, thereby maintaining profile integrity for heavy board loads. • Wide process window for "universal profiling" — allows many different boards to be run on a single temperature profile • Included with every system: • Advanced 3 thermocouple PCB profiling and process parameter logging capability with the capacity to store up to 500 temperature recipes and 500 profile graphs • Cpk software — “real-time” Cpk calculation shows oven performance and repeatability and gives Cpk data for each zone and the entire oven — a Heller exclusive! Lowest Cost of Ownership • Computer-controlled automatic lubrication system for "hands-off" maintenance • Optional flux separation system removes up to 95% of flux from the oven tunnel — virtually eliminating maintenance and protecting the environment • Pure forced convection design saves nitrogen — with consumption levels as low as 700 SCFH at 500 PPM* • Low KW design saves electricity and reduces warm up and profile changeover time

Specifications

Weight: 3000
Height: 63
Length: 134
Width: 54
