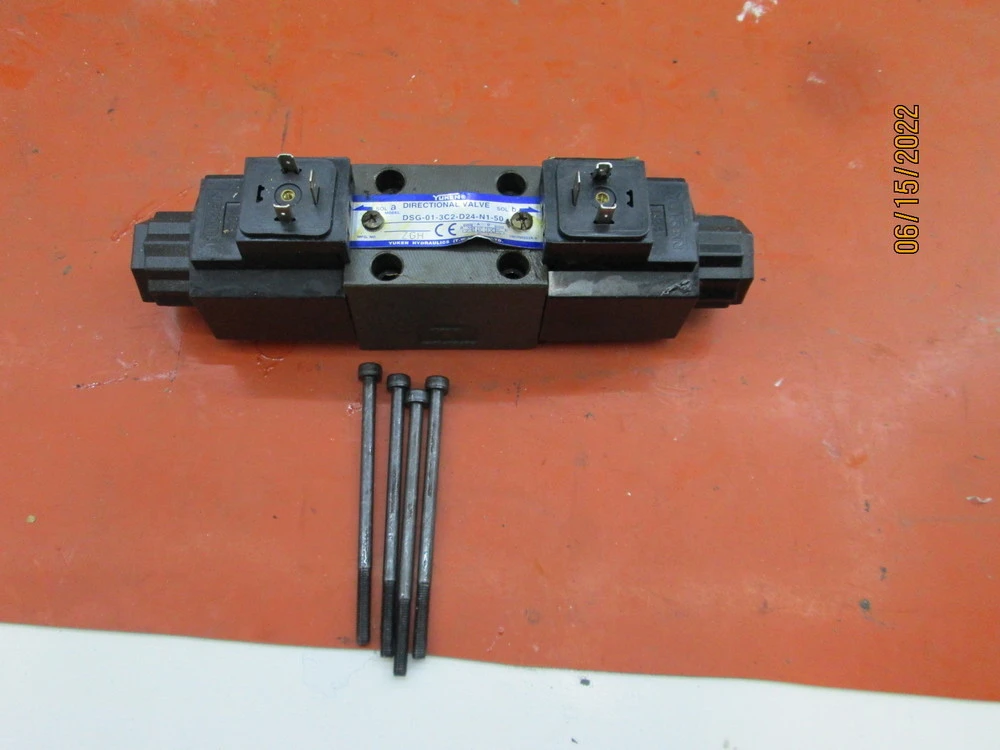

Yuken Directional Valve Model: DSG-01-3C2-D24-N1-50, 4 way solenoid operated Valve

<p></p> <h1 style="text-align: center; ">Yuken Directional Valve Model: DSG-01-3C2-D24-N1-50, 4 way solenoid operated Valve </h1> <p style="text-align: left;">Make: Yuken</p> <p style="text-align: left;">Model:  DSG-01-3C2-D24-N1-50</p> <p style="text-align: left;">MFG No: ZGH </p> <p style="text-align: left;">Direct Acting, Solenoid- Operated, 4 Way, 3 position spool valve is sping centered to the neutral position. when coil A IS energized,  the flow is from port 3 (P) to port 2 (a) And From 4 (b) to port 1 (T). When Coil B Is Energized, the flow is from port 3 to port 4 and from port to to port 1 </p> <p style="text-align: left;">Max Flow: 63 IPM</p> <p style="text-align: left;">Max Pressure: 315 Bar</p> <p style="text-align: left;">Coil Voltage: 24 VDC</p> <p style="text-align: left;">Configuration: All Port Blocked </p> <p style="text-align: left;">IP65: Equivalent Dust And Water Resistant </p> <p style="text-align: left;">Cetop 03/NG65/ ISO 03</p> <p style="text-align: left;">Asset In Stock And Available immediately </p>
