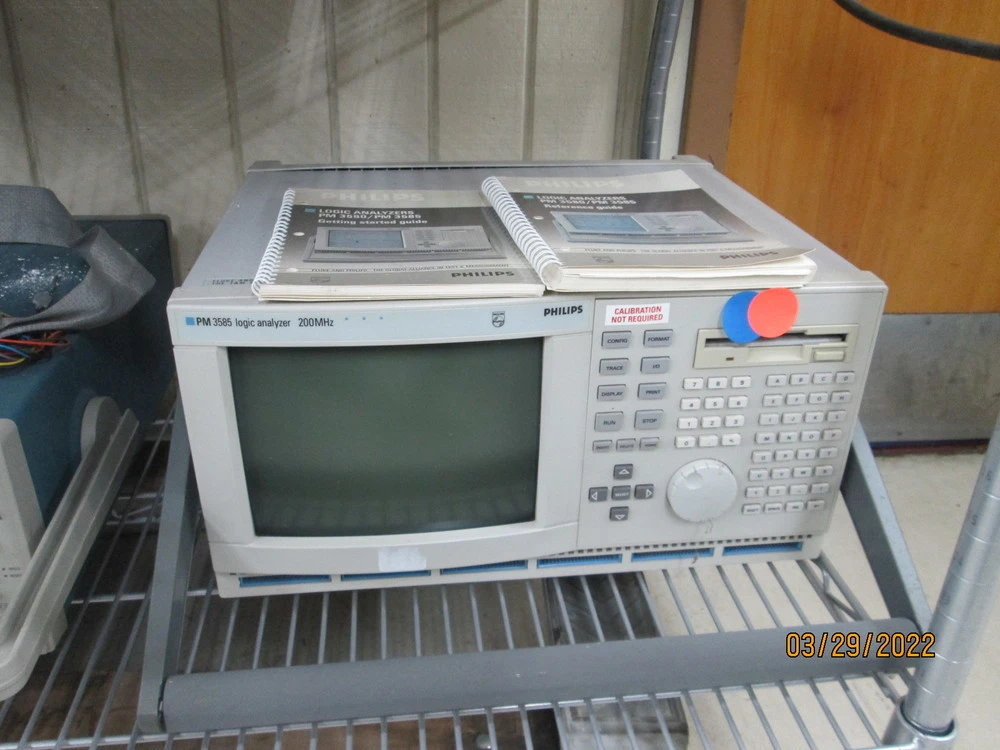

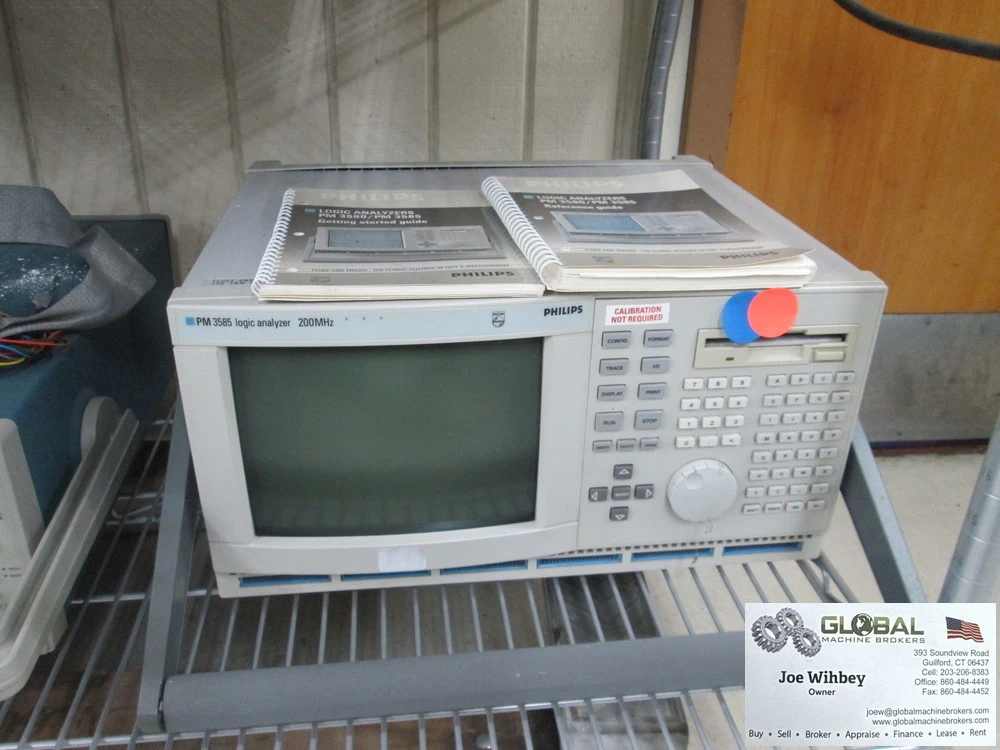

<h1 style="text-align: center; ">Phillips Logic Analyzer PM3585, 20-0 MHz, 96 State/Timing Channels </h1>
<p style="text-align: left;">Make: Phillips</p>
<p style="text-align: left;">Model: PM3585</p>
<p style="text-align: left;">Serial No: DA569801</p>
<p style="text-align: left;">Condition: Used Overall In Great Shape</p>
<ul>
<li style="text-align: left;">96 state/timing channels</li>
<li style="text-align: left;">Timing analysis up to 200 MHz</li>
<li style="text-align: left;">State analysis up to 50 MHz</li>
<li style="text-align: left;">Glitch capture down to 3 ns</li>
<li style="text-align: left;">Six 16 Channel Pods</li>
<li style="text-align: left;">Data Memory: 2Kb/Channel</li>
<li style="text-align: left;">Probe Impedance: 200k O/7 pF</li>
<li style="text-align: left;">Thresholds Per 8 ch: TTL, ECL or Variable </li>
<li style="text-align: left;">Threshold Accuracy: 150 mV or 3% of selected threshold value, Which Ever Is Greater</li>
<li style="text-align: left;">Minimum input overdrive: 250 mV or 25% of swing, which ever is greater</li>
<li style="text-align: left;">Minimum Swing: 500 mV</li>
<li style="text-align: left;">Maximum Input Voltage: +/-50 V peak</li>
<li style="text-align: left;">Channel to channel skew: <4 ns</li>
<li style="text-align: left;">Unique dual-analyzer-per-pin architecture </li>
<li style="text-align: left;">combined state and timing date in a single acquisition</li>
<li style="text-align: left;">Ms/Dos utilities For Graphics and postprocessing </li>
<li style="text-align: left;">Display Modes: single screen or dual screen. Each screen section can contain data of and type of source </li>
<li style="text-align: left;">Data type: Timing waveform or state list </li>
<li style="text-align: left;">Data source: new measurement, reference measurement or comparison of new and reference measurements</li>
<li style="text-align: left;">Display labels: any label defined in format, displayed in any order. also relative to trigger point and/or time difference and clock (state lists)</li>
<li style="text-align: left;">level display: Current levels in trigger sequence are displayed </li>
<li style="text-align: left;">Measurement cursors: R and S</li>
</ul>
<p style="text-align: left;">Asset In Stock And Available Immediately </p>
