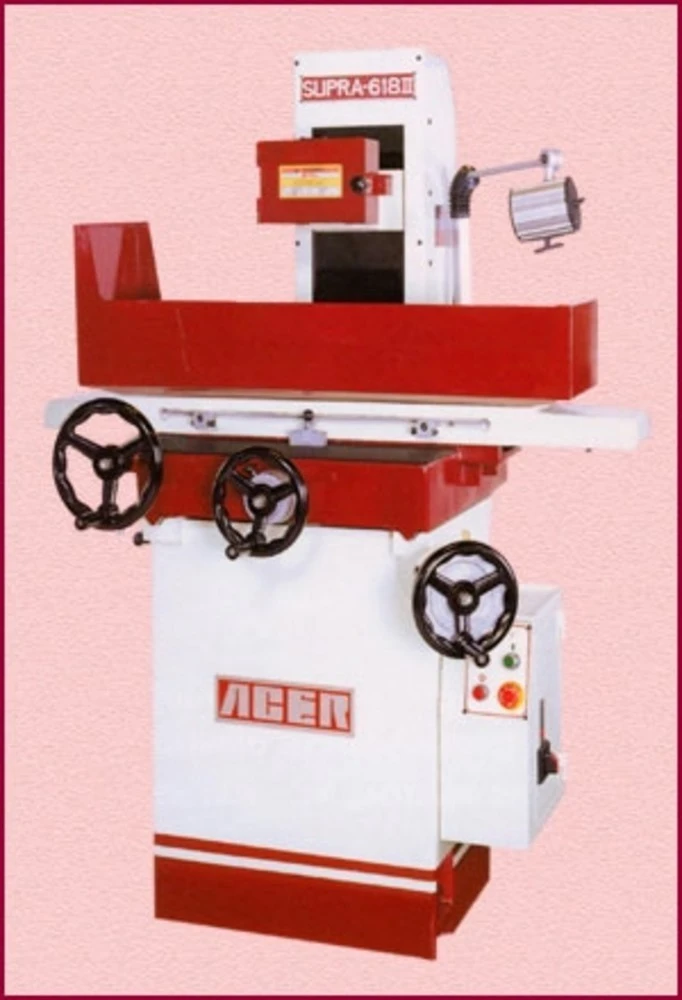

ACER HIGH PRECISION SURFACE GRINDER Supra-618-II w/ Standard Accessories
Have one to sell?
$10,575.00 USD
ConditionNew
1 available
New
ACER HIGH PRECISION SURFACE
GRINDER
Model: Supra-618-II w/ Standard Accessories $ 10,575.00
Subject to Ocean Freight
Surcharge $800 as of May 2022
Features:
·
Elevating
Handwheel at Machine Base
·
Ball Rolling
Table; Belt Drive
·
Auto Lubricator; High
Tensile Meehanite Casting
·
Cast Iron
Base: Double V “Turcite-B” Crossfeed Way
·
Indexible Table
Handwheel; Waist-side Downfeed Mechanism
·
CE Standard
Electric
·
Working Capacity:
6” x 18”
Optional Accessories:
1.
“ACER” 6” x 18”
Permanent Magnetic Chuck (Regular Pole)……………….. $ 1,075.00
2.
“ACER” 6” x 18”
Permanent Magnetic Chuck (Fine Pole).………………….. $ 1,600.00
3.
“ACER” 6” x 18”
Electro Fine Pole Chuck w/ Control………………..……... $ 1,965.00
4.
“WALKER” 6” x 18”
Permanent Magnetic Chuck (Fine Pole)…….………… $ P.O.R.
5.
“WALKER” 6” x 18”
Electro Fine Pole Chuck w/ Control………………….. $ P.O.R.
6.
Parallel Dresser
(overhead manual)…………………………………………… $ 645.00
7.
Coolant
System………………………………………………………………... $ 680.00
8.
Dust Suction
& Coolant System…………………………………………......... $ 1,285.00
9.
Coolant System w/
Paper Filter……………………………………………….. $ 1,840.00
10.
Coolant System w/
Magnetic Separator & Paper Filter………………………. $ 2,495.00
11.
Extra Wheel
Flange…………………………………………………………… $ 145.00
12.
“NEWALL” 2-Axis
D.R.O. (8” x 18” Travel, 0.0001” Resolution)…………. $ 3,235.00
13.
“MAGNESCALE”
2-Axis D.R.O. (8” x 18” Travel, 0.00002” Resolution)…. $ 3,340.00
14.
Bracket &
Installation Fee for D.R.O…………………………………….. Net $ 410.00
15.
Micro Downfeed
System……………………………………………………… $ 1,045.00
Specifications:
Longitudinal Travel:
20”
Grinding Wheel:
8”(OD) x 1/2”(W) x 1-1/4”(ID)
Cross Feed Travel:
7-1/2”
Vertical Graduation:
0.0001” (Direct Dial)
Spindle Center to Table:
19-5/16”
Spindle Motor:
3 HP (V3)
Table Size:
6” x 18”
T-Slot:
1” x 3/8”
Spindle RPM:
3,450 RPM
Net Weight:
1,584 lbs.
Standard Accessories:
1 pc. Wheel Balancing Base 1 pc.
Wheel Balancing Arbor
1 pc. Grinding Wheel 1
pc. Wheel Flange
1 pc. Table Mount Wheel Dresser 1 pc. Halogen Work
Light
1 set Toolbox w/ Tools 1
pc. Table Mount Splash Guard
***Machine is subject to ocean freight surcharge.
*** Above
Prices are based on F.O.B. Piscataway, N.J.
*** Prices and designs are subject to change without
notice.
*** Manufacturer
reserves the right to modify the design without notice. REV. Feb. 2022
Weight: 1910
Height: 77
Length: 58
Width: 44
