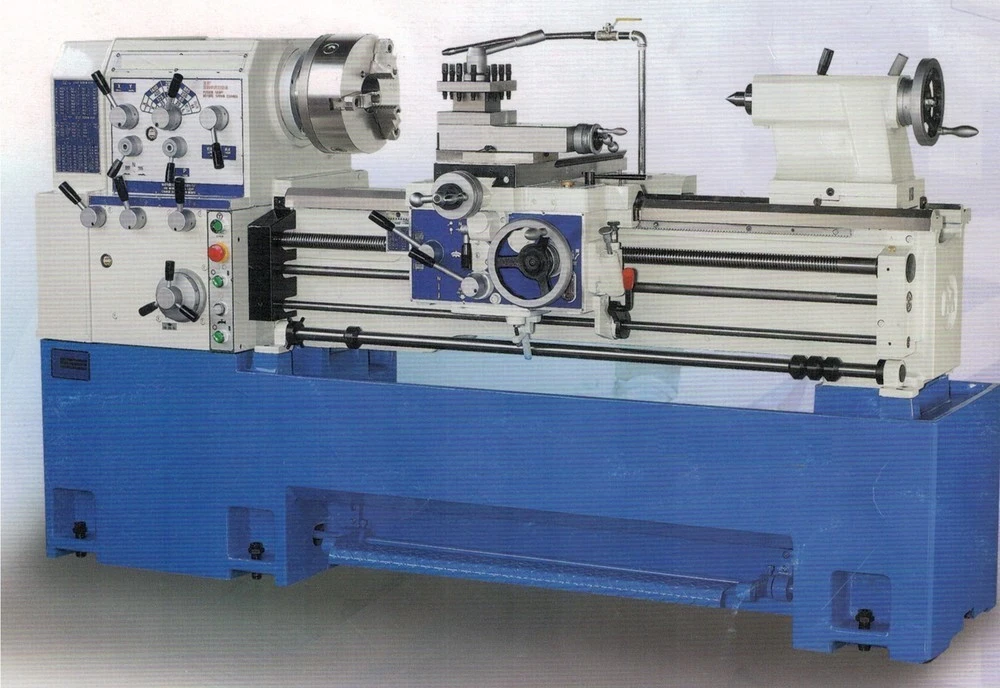

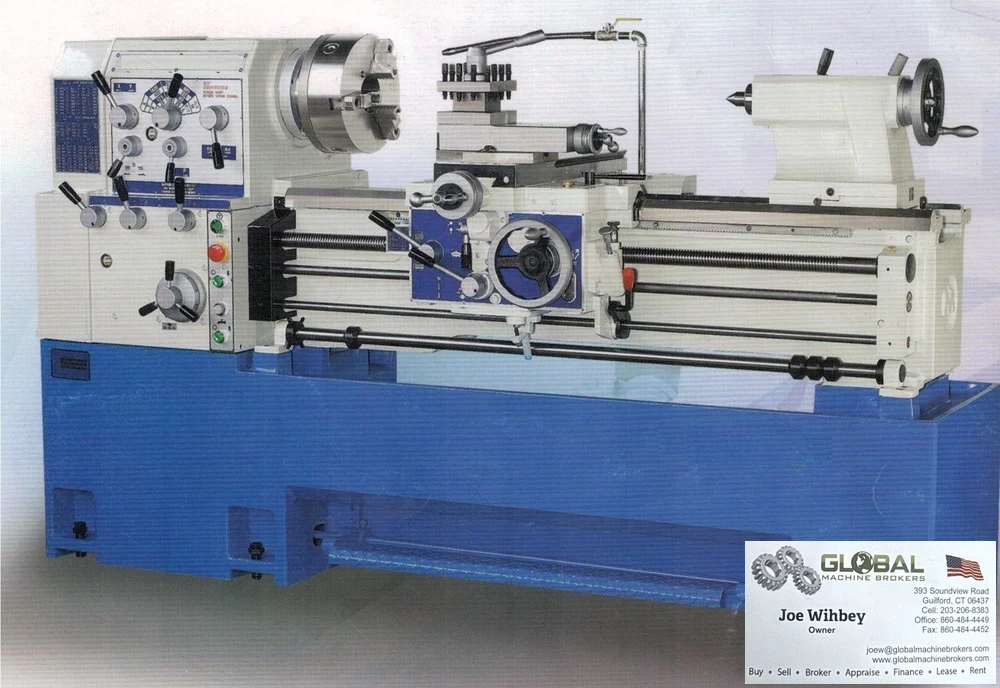

Acer Dynamic 1740S Series Large Bore Engine Lathe D1-8 Nose 20-20k Rpm 7.5 Hp
Have one to sell?
$18,200.00 USD
ConditionNew
1 available
New
Acer Dynamic 1740S Series Large Bore Engine Lathe D1-8 Nose 20-20k Rpm 7.5 Hp
Make: Acer
Model: 1740S
Swing: 17'
Swing Over Gap: 25.5"
Swing Over Cross Slide: 9.5"
Distance Between Centers: 40"
Bed Width: 11-4/5"
Spindle Bore: 3.1”
Spindle Nose: D1-8
Taper Of Spindle Bore: MT#7
10” D1-8 3-Jaw Chuck
Spindle Speed: 20 ~ 2,000 RPM (12 Spindle Speed)
7.5 HP Spindle Motor
Compound Rest Travel: 4-7/8"
Cross Slide Travel: 9-2/3"
Steady Rest – Bronze Tip (0.39” ~ 6.29”)
Tail Spindle Travel: 5-7/8"
Tail Spindle Diameter: 2-1/4"
Inch Threads Range: 4~56 Tpi
Metric Threads Range: P 0.5~P7
Long Feed Range: 0.05~0.82 MM
Cross Feed Range: 0.02~0.4 MM
Leadscrew Diameter: 35 MM
Leadscrew Pitch: 4 Tpi
Auto. Feed & Threading are interlocked to prevent simultaneous functions
Hardened and Ground Meehanite Casting Bedway
Hardened and Ground Gears and Spindle
Thread Chasing Dial & Automatic Longitudinal Multiple Feed Stop
Halogen Work Light
Center Sleeve
Dead Centers x 2pcs
Auto-Feed Stopper Ring (4 Position)
Built-In Coolant System
Four-Way Tool Post
Optional Accessories Include:
12” 4-Jaw Independent Chuck (D1-8): $ 900.00
Follow Rest (Bronze Tip): 0.59” ~ 2.76” Range: $ 450.00
16” Face Plate: $ 400.00
“ALORIS” Tool Post & 4-Holder Set (#3-BS): $ 1,250.00
“ALORIS” Tool Post & 6-Holder Set (#3 Set): $ 1,600.00
“DORIAN” Tool Post & 4-Holder Set (SD35CXA-TS): $ P.O.R.
Micrometer Stop: $ 275.00
Five Position Carriage Stop: $ 350.00
5C Collet Closer (Lever-Type): $ 1,600.00
5C Collet Set (1/16” to 1-1/16” x 16ths; 17pcs/set): $ 600.00
Taper Turning Attachment: $ 1,700.00
NEWALL DP700 2-Axis D.R.O. (10” x 40”) $ 2,300
MAGNASCALE 2-Axis D.R.O. (10” x 40”) $ 2,500
Rear Full Length Splash Guard for 40”: $ 400.00
Weight: 3880
Height: 47
Length: 85
Width: 32
