<p>30 Foot Didion Rotary Reverberatory Furnace Rotates 310 Degrees 14 Tons/Day 30 Million BTU </p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;30 Foot Didion Rotary Reverbatory Furnace Unit Rotates 310 Degrees Of Full Circle During Melt Stages<br/>&nbsp;&nbsp;&nbsp;&nbsp;30 ft. Long Outer Tube, .75 Steel<br/>&nbsp;&nbsp;&nbsp;&nbsp;O.D. 7 8<br/>&nbsp;&nbsp;&nbsp;&nbsp;I.D. 5 5<br/>&nbsp;&nbsp;&nbsp;&nbsp;Liner In Unit Is 12 Thick & Rated To 3200 Degrees Tube Is 30,000 lbs. w/o High Alumina Refractory, 80,000 With Liner In Place Forced Air & Gas, 15 Million To 30 Million BTUs Per Hour<br/>&nbsp;&nbsp;&nbsp;&nbsp;Emergency Shut Off w/Power Loss Sensors Includes Natural Gas Manifold, Injector & Fan<br/>&nbsp;&nbsp;&nbsp;&nbsp;14 Slag Pots w/Water Jacket Pot Cooler<br/>&nbsp;&nbsp;&nbsp;&nbsp;Furnace Control Panel<br/>&nbsp;&nbsp;&nbsp;&nbsp;Stanchions Frame Cradle Bearing Rotation Motor Chassis = 30,000 lbs. Total<br/>&nbsp;&nbsp;&nbsp;&nbsp;Standard Havens Alpha/Mark ll Bag House<br/>&nbsp;&nbsp;&nbsp;&nbsp;714 Bags & Cages In Bag House<br/>&nbsp;&nbsp;&nbsp;&nbsp;Horizontal Platform On Trailer Chassis<br/>&nbsp;&nbsp;&nbsp;&nbsp;Blower w/ 40 H.P. Motor<br/>&nbsp;&nbsp;&nbsp;&nbsp;Gas Engine Compressor w/100 Gallon Positive Pressure Tank<br/>&nbsp;&nbsp;&nbsp;&nbsp;42 10 ft. Long Manifolds Servicing 17 Bags & Cages Each Sequence Board Controls Air Blast<br/>&nbsp;&nbsp;&nbsp;&nbsp;11 ft. Wide X 70 ft. Long X 10 ft. 6 in. Tall<br/>&nbsp;&nbsp;&nbsp;&nbsp;30,000 CFM Thru Put Max.<br/>&nbsp;&nbsp;&nbsp;&nbsp;The Unit Is Fully Operational At The Current Time. However Not Being Used.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Furnace Needs To Leave Current Facility In 90 To 120 Days.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Furnace & Furnace Accessories, Emissions Cleaning Equipment Included. $675,000.00<br/>&nbsp;&nbsp;&nbsp;&nbsp;Please Note Break Down / Disassembly & Loading Outbound Trucks Additional $35,000.00</p>
<p>Manufactured in the U.S. by Dideon as a calcining unit. With limited modifications such as removing inner helix/paddle lifters, rail track adjustable gas air injection and the addition of a cast able high alumina content refractory</p>
<p>liner, this unit can now process 14 tons of precious metal bearing slags with every 24 hours of operation. Maximum operating temperature with current gas/air injection system is approximately 2,800 degrees Fahrenheit. This can be achieved in 35 to 40 minutes after loading and ignition.</p>
<p>The high temperature refractory liner inside of this furnace is the best than can be obtained at any cost. The Cast able mix was composed with 90% alumina and rated for continuous operation at 3,200 degrees Fahrenheit. The value of the refractory mix alone exceeds a quarter of a million dollars U.S.</p><br/><br/><p></p>
<h1 style="text-align: center;">30 Foot Didion Rotary Reverberatory Furnace Rotates 310 Degrees 14 Tons/Day 30 Million BTU </h1>
<ul>

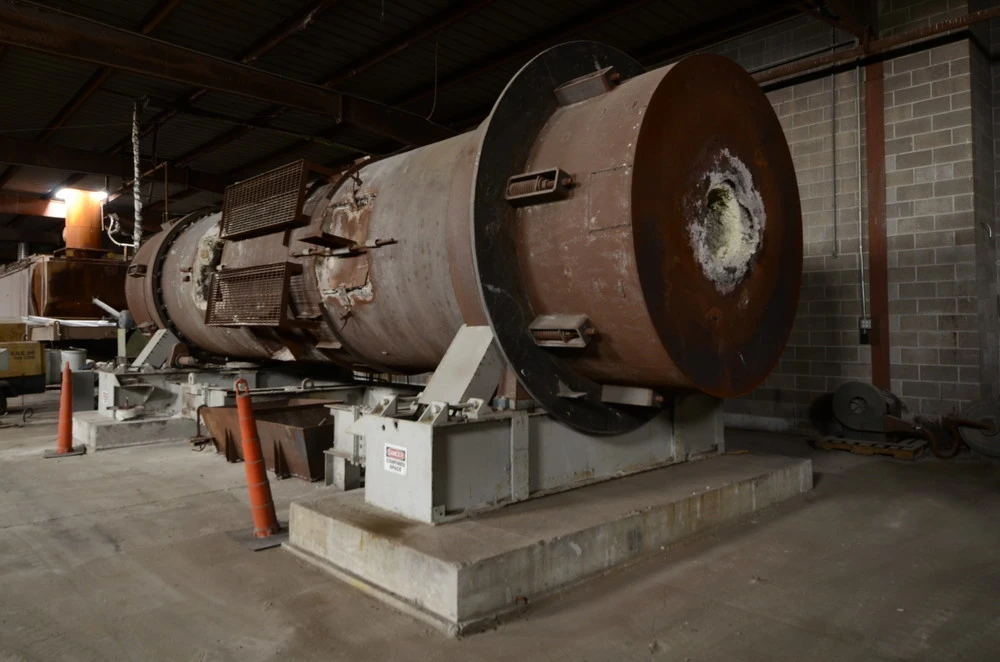

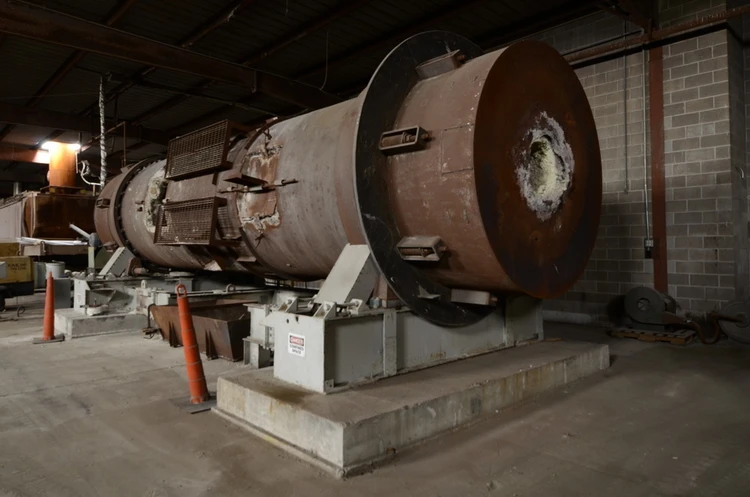

<li>30 Foot Didion Rotary Reverbatory Furnace Unit Rotates 310 Degrees Of Full Circle During Melt Stages</li>
<li>30 ft. Long Outer Tube, .75 Steel</li>
<li>O.D. 7 8</li>
<li>I.D. 5 5</li>
<li>Liner In Unit Is 12 Thick & Rated To 3200 Degrees Tube Is 30,000 lbs. w/o High Alumina Refractory, 80,000 With Liner In Place Forced Air & Gas, 15 Million To 30 Million BTUs Per Hour</li>
<li>Emergency Shut Off w/Power Loss Sensors Includes Natural Gas Manifold, Injector & Fan</li>

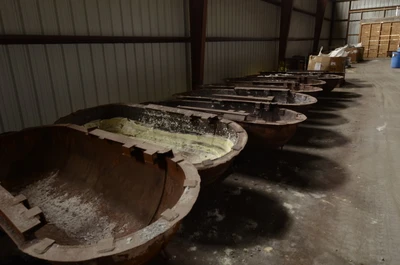

<li>14 Slag Pots w/Water Jacket Pot Cooler</li>
<li>Furnace Control Panel</li>
<li>Stanchions Frame Cradle Bearing Rotation Motor Chassis = 30,000 lbs. Total</li>
<li>Standard Havens Alpha/Mark ll Bag House</li>
<li>714 Bags & Cages In Bag House</li>
<li>Horizontal Platform On Trailer Chassis</li>
<li>Blower w/ 40 H.P. Motor</li>
<li>Gas Engine Compressor w/100 Gallon Positive Pressure Tank</li>
<li>42 10 ft. Long Manifolds Servicing 17 Bags & Cages Each Sequence Board Controls Air Blast</li>
<li>11 ft. Wide X 70 ft. Long X 10 ft. 6 in. Tall</li>
<li>30,000 CFM Thru Put Max.</li>
<li>The Unit Is Fully Operational At The Current Time. However Not Being Used.</li>
<li>Furnace Needs To Leave Current Facility In 90 To 120 Days.</li>
<li>Furnace & Furnace Accessories, Emissions Cleaning Equipment Included. $675,000.00</li>
<li>Please Note <span style="color:#ff0000;">Break Down / Disassembly & Loading Outbound Trucks <strong>Additional</strong> <strong>$35,000.00</strong></span>
</li>
</ul>
<p>Manufactured in the U.S. by Dideon as a calcining unit. With limited modifications such as removing inner helix/paddle lifters, rail track adjustable gas air injection and the addition of a cast able high alumina content refractory<br>
liner, this unit can now process 14 tons of precious metal bearing slags with every 24 hours of operation. Maximum operating temperature with current gas/air injection system is approximately 2,800 degrees Fahrenheit. This can be achieved in 35 to 40 minutes after loading and ignition.</p>
<p>The high temperature refractory liner inside of this furnace is the best than can be obtained at any cost. The Cast able mix was composed with 90% alumina and rated for continuous operation at 3,200 degrees Fahrenheit. The value of the refractory mix alone exceeds a quarter of a million dollars U.S.</p>
