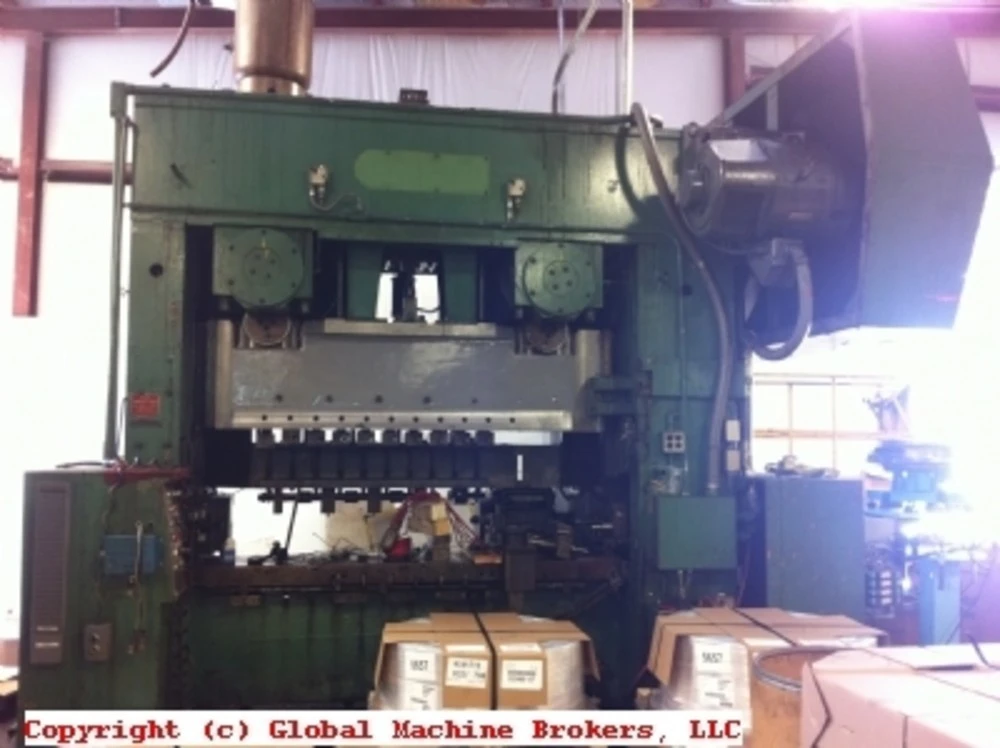

Waterbury Farrel PC112 Transfer Press 9" Stroke

Description

Waterbury Farrel PC112 Transfer Press - Rare Machine!

* Brand new Gate, Rolls and Pins - From Waterbury Farrell factory in Canada

* 5.25" Transfer Distance

* 7" Maximum Blank Size

* 9" Stroke - Huge!

* 12 Full Operations to draw with

* Strip & Release System

* Oscilating 2 Row Feed and Chopper

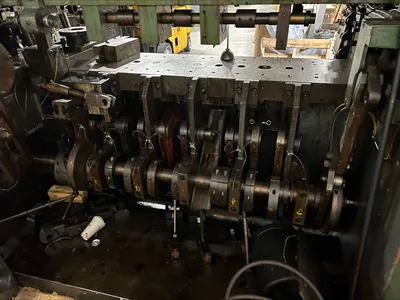

* Complete Cam System for KO in Bed

* Press is Complete - All parts accounted for and included

* GE Eddy Current Motor 50 hp 480 Volt Stevens Co.-2400 RPM 87 Amps

* ISB Die Protection

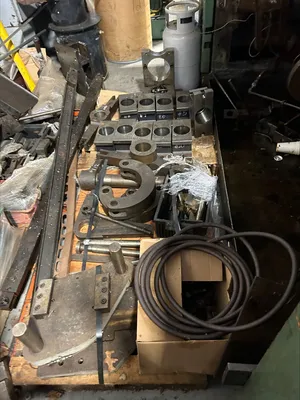

* All Die Shoes, Stripper Forks, and Slide included

* Blank & Cup assemblies included

* 14' wide x 7' deep x 13' tall x 40,000 lbs approximately

* Minster Brake Clutch Combo
Info:

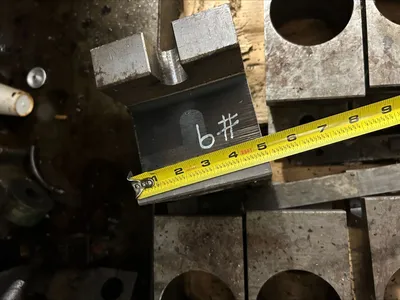

Die holders are 4.50 ID x 4.25 ID shoulder x 5.50” tall
Machine has a 2 row mechanical stagger feed
2 Blank die holders – one regular and one huge
Bronze hand scraped gibbs
Press height:
As is on shop floor = 148” tall including flywheel guards and Anti Vibration feet
No guard = 130” tall
No guard, no feet risers = 125” tall
Probably can ship out as one piece at 10’6” tall.
Weights 40,000 pounds. Crane had a scale built in when they brought it in.
It will cost $2500 just for the crane to load it in an open top container
It will cost $2500 for the riggers to get it to the garage door to be craned out.
Those are preliminary rigging numbers. I would get real costs but they should be close.

If you have a big job for a transfer press, this is the only one. This is a very rare press with a lot of capability.
