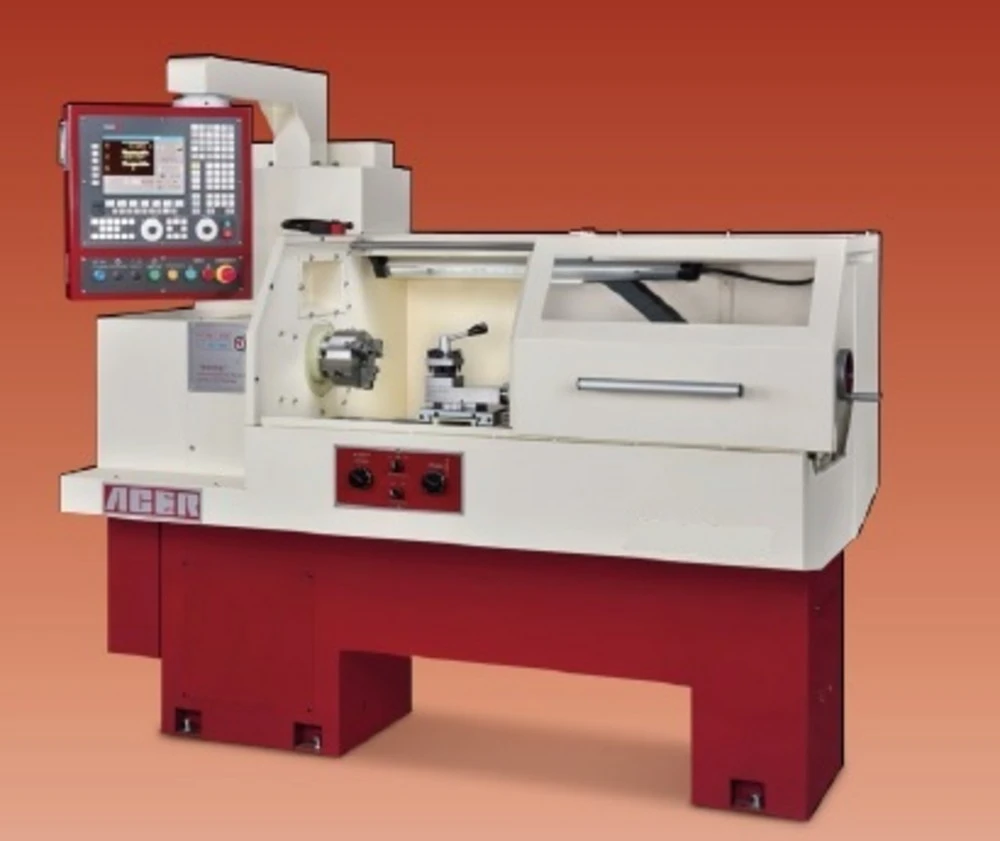

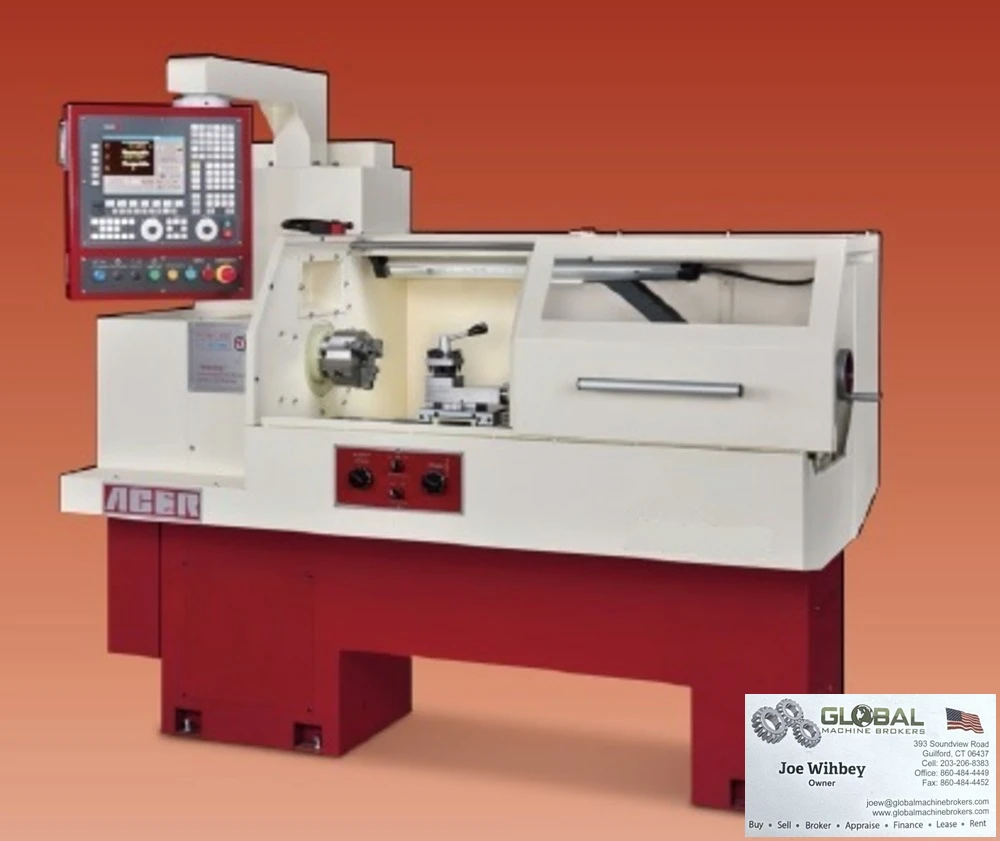

<p>Acer ATL-1740E 17"Swing Flat Bed CNC Teach Lathe W/Fagor 8055 i/A-TC Control</p>
<p>Make: Acer</p>
<p>Model: ATL-1740</p>
<p>Control: Fagor 8055 i/A-TC</p>
<p>Swing: 17"</p>
<p>2.16" Spindle Bore W/D1-6 Camlock Spindle Nose</p>
<p>7.5 Hp Spindle Motor For 3Ph 60 Hz Wiring</p>
<p>Hardend And Ground Meehanite Casting Bedway, Ground Gears & Spindle</p>
<p>2 Speed Range: Low 50-355 Rpm/ High 352-2500 Rpm</p>
<p>Constant Surface Speed</p>
<p>Manual-Teach- CNC Modes</p>
<p>Dual MPG Handwheel</p>
<p>C3 Ball Screw On X-Axis, C5 Ball Screw On Z-Axis & Laser Calibration On All Axes</p>
<p>Control Capabilities:</p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;Use as a D.R.O. In Manual Mode<br/>&nbsp;&nbsp;&nbsp;&nbsp;Powerful CNC Full Auto Mode<br/>&nbsp;&nbsp;&nbsp;&nbsp;Electric Handwheel for Semi-Auto Mode<br/>&nbsp;&nbsp;&nbsp;&nbsp;No Programming Experience Required<br/>&nbsp;&nbsp;&nbsp;&nbsp;Program in Teach Mode Conversational or G-Code Programming<br/>&nbsp;&nbsp;&nbsp;&nbsp;Program w/ Canned Cycles<br/>&nbsp;&nbsp;&nbsp;&nbsp;Minimum Set-Up Time</p>
<p>Standard Accessories: </p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;Halogen Work Light<br/>&nbsp;&nbsp;&nbsp;&nbsp;Coolant System<br/>&nbsp;&nbsp;&nbsp;&nbsp;Tool Box w/ Tools<br/>&nbsp;&nbsp;&nbsp;&nbsp;Automatic Lubrication System<br/>&nbsp;&nbsp;&nbsp;&nbsp;Fully Enclosed Splash Guard<br/>&nbsp;&nbsp;&nbsp;&nbsp;Manual Tailstock</p>
<p>Optional Accessories: </p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;10” 3-Jaw Independent Chuck (D1-6) w/ Direct Mount: $ 800.00<br/>&nbsp;&nbsp;&nbsp;&nbsp;12” 4-Jaw Independent Chuck (D1-6) w/ Direct Mount: $ 850.00 <br/>&nbsp;&nbsp;&nbsp;&nbsp;Steady Rest w/ Rollers: $ 450.00<br/>&nbsp;&nbsp;&nbsp;&nbsp;Follow Rest: $ 300.00<br/>&nbsp;&nbsp;&nbsp;&nbsp;Face Plate 16”: $ 500.00<br/>&nbsp;&nbsp;&nbsp;&nbsp;ALORIS Tool Post & 4-Holder (#3-BS): $ 1,050.00<br/>&nbsp;&nbsp;&nbsp;&nbsp;ALORIS Tool Post & 6-Holder (#3-Set): $ 1,300.00<br/>&nbsp;&nbsp;&nbsp;&nbsp;DORIAN Tool Post & 4-Holder: $ 1,050.00<br/>&nbsp;&nbsp;&nbsp;&nbsp;Four Way Tool Post: $ 500.00<br/>&nbsp;&nbsp;&nbsp;&nbsp;H4 Electric Tool Post: $ 2,100.00<br/>&nbsp;&nbsp;&nbsp;&nbsp;Upgrade to 440V / 3-Phase Inverter Drive: Net $ 800.00<br/>&nbsp;&nbsp;&nbsp;&nbsp;Program Training (Accommodation & Transportation excluded): Net $ 950/Day</p><br/><br/><p></p>
<h1 style="text-align: center;">Acer ATL-1740E 17"Swing Flat Bed CNC Teach Lathe W/Fagor 8055 i/A-TC Control</h1>
<p>Make: Acer</p>
<p>Model: ATL-1740</p>
<p>Control: Fagor 8055 i/A-TC</p>
<p>Swing: 17"</p>
<p>2.16" Spindle Bore W/D1-6 Camlock Spindle Nose</p>
<p>7.5 Hp Spindle Motor For 3Ph 60 Hz Wiring</p>
<p>Hardend And Ground Meehanite Casting Bedway, Ground Gears & Spindle</p>
<p>2 Speed Range: Low 50-355 Rpm/ High 352-2500 Rpm</p>
<p>Constant Surface Speed</p>
<p>Manual-Teach- CNC Modes</p>
<p>Dual MPG Handwheel</p>
<p>C3 Ball Screw On X-Axis, C5 Ball Screw On Z-Axis & Laser Calibration On All Axes</p>
<h2>Control Capabilities:</h2>
<ul>
<li>Use as a D.R.O. In Manual Mode</li>
<li>Powerful CNC Full Auto Mode</li>
<li>Electric Handwheel for Semi-Auto Mode</li>
<li>No Programming Experience Required</li>
<li>Program in Teach Mode Conversational or G-Code Programming</li>
<li>Program w/ Canned Cycles</li>
<li>Minimum Set-Up Time</li>
</ul>
<h2>Standard Accessories: </h2>
<ul>
<li>Halogen Work Light</li>
<li>Coolant System</li>
<li>Tool Box w/ Tools</li>
<li>Automatic Lubrication System</li>
<li>Fully Enclosed Splash Guard</li>
<li>Manual Tailstock</li>
</ul>
<h2>Optional Accessories: </h2>
<ul>
<li>10” 3-Jaw Independent Chuck (D1-6) w/ Direct Mount: $ 800.00</li>
<li>12” 4-Jaw Independent Chuck (D1-6) w/ Direct Mount: $ 850.00 </li>
<li>Steady Rest w/ Rollers: $ 450.00</li>
<li>Follow Rest: $ 300.00</li>
<li>Face Plate 16”: $ 500.00</li>
<li>ALORIS Tool Post & 4-Holder (#3-BS): $ 1,050.00</li>
<li>ALORIS Tool Post & 6-Holder (#3-Set): $ 1,300.00</li>
<li>DORIAN Tool Post & 4-Holder: $ 1,050.00</li>
<li>Four Way Tool Post: $ 500.00</li>
<li>H4 Electric Tool Post: $ 2,100.00</li>
<li>Upgrade to 440V / 3-Phase Inverter Drive: Net $ 800.00</li>
<li>Program Training (Accommodation & Transportation excluded): Net $ 950/Day</li>
</ul>
