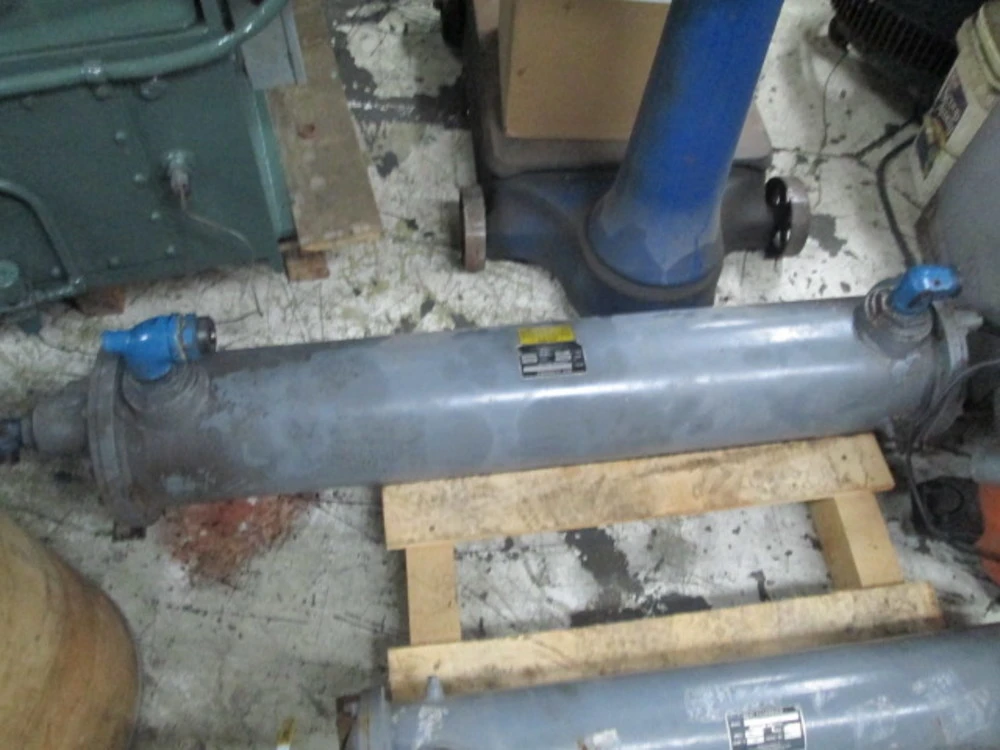

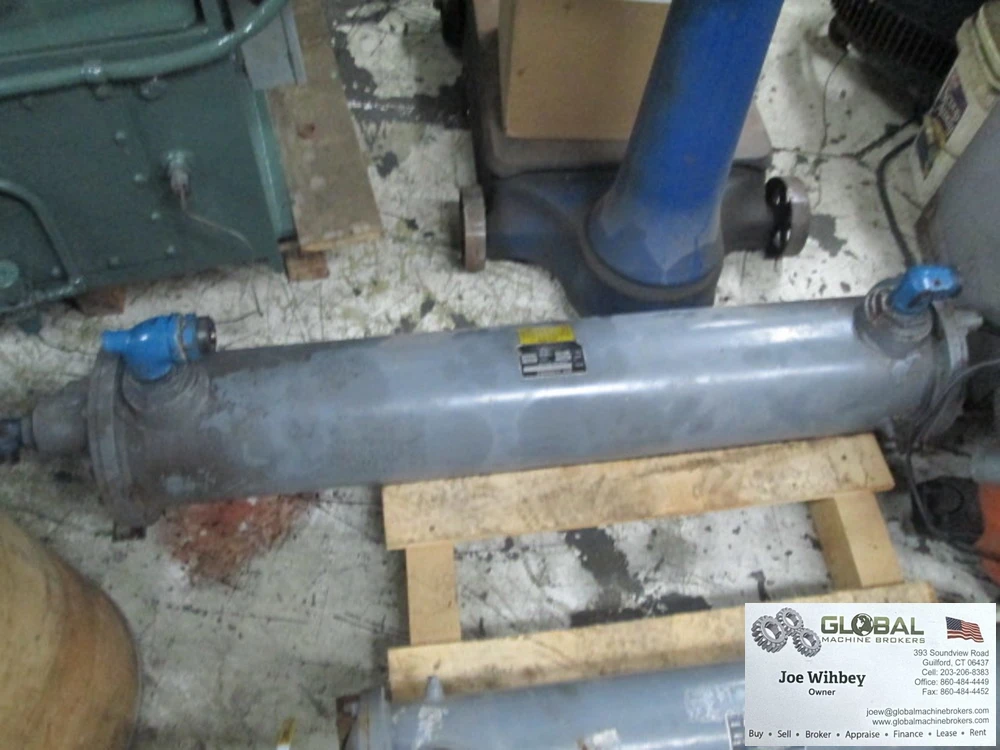

<p>Thermal Transfer Shell And Tube Heat Universal Heat Exchange C-1748-3.5-6-FMake: Thermal Transfer Model: C-1748-3.5-6-FSerial No: R55176Series: CCondition: Used, Overall In Great ShapeCompatible Hydraulic Automatic Transmission  Fluid, Hydraulic Motor OilDimensions: 54.07 In LFlow Rate: 125 GPM, 116 GPMHP Heat Removed: Up To 500 HPMaximum Oil Pressure: 300 PSIMaximum Water Pressure: 150 PSIMounting Type: FeetOil Cooler Material: SteelOil Inlet Port Connection Type: NPTOil Output Port Size: 3&quot;Operating Size: Temperature: 300 FWater Inlet Port Connection Type: NPTWater Inlet Port Size: 2-1/2Water Outlet Port Connection: NPTWater Outlet Port Size: 2-1/2&quot;Up to +500HP Of Heat Removal From Hydraulic Oil Round Tube Copper Brass Steel Brazed Aluminum Plate And Bar Extruded Aluminum/Steel Fin Construction Aluminum/ Steel Fin Construction All aluminum brazedSteel, copper, copper/nickel or stainless steel constructionBrazed plate constructionInternal finsDiameters up to 10 inLengths up to 12 ft3/8 in tube size3-1/2 in baffle spacingFour pass tubesideCopper cooling tube materialCast iron end bonnet materialSteel tubesheet materialAsset In Stock And Available Immediately</p><br/><br/><p></p> <h1 style="text-align: center; ">Thermal Transfer Shell And Tube Heat Universal Heat Exchange C-1748-3.5-6-F</h1> <p style="text-align: left;">Make: Thermal Transfer </p> <p style="text-align: left;">Model: C-1748-3.5-6-F</p> <p style="text-align: left;">Serial No: R55176</p> <p style="text-align: left;">Series: C</p> <p style="text-align: left;">Condition: Used, Overall In Great Shape</p> <p style="text-align: left;">Compatible Hydraulic Automatic Transmission  Fluid, Hydraulic Motor Oil</p> <p style="text-align: left;">Dimensions: 54.07 In L</p> <p style="text-align: left;">Flow Rate: 125 GPM, 116 GPM</p> <p style="text-align: left;">HP Heat Removed: Up To 500 HP</p> <p style="text-align: left;">Maximum Oil Pressure: 300 PSI</p> <p style="text-align: left;">Maximum Water Pressure: 150 PSI</p> <p style="text-align: left;">Mounting Type: Feet</p> <p style="text-align: left;">Oil Cooler Material: Steel</p> <p style="text-align: left;">Oil Inlet Port Connection Type: NPT</p> <p style="text-align: left;">Oil Output Port Size: 3"</p> <p style="text-align: left;">Operating Size: Temperature: 300 F</p> <p style="text-align: left;">Water Inlet Port Connection Type: NPT</p> <p style="text-align: left;">Water Inlet Port Size: 2-1/2</p> <p style="text-align: left;">Water Outlet Port Connection: NPT</p> <p style="text-align: left;">Water Outlet Port Size: 2-1/2"</p> <p style="text-align: left;">Up to +500HP Of Heat Removal From Hydraulic Oil </p> <p style="text-align: left;">Round Tube Copper Brass Steel </p> <p style="text-align: left;">Brazed Aluminum Plate And Bar </p> <p style="text-align: left;">Extruded Aluminum/Steel Fin Construction </p> <p style="text-align: left;">Aluminum/ Steel Fin Construction </p> <p style="text-align: left;">All aluminum brazed</p> <p style="text-align: left;">Steel, copper, copper/nickel or stainless steel construction</p> <p style="text-align: left;">Brazed plate construction</p> <p style="text-align: left;">Internal fins</p> <p style="text-align: left;">Diameters up to 10 in</p> <p style="text-align: left;">Lengths up to 12 ft</p> <p style="text-align: left;">3/8 in tube size</p> <p style="text-align: left;">3-1/2 in baffle spacing</p> <p style="text-align: left;">Four pass tubeside</p> <p style="text-align: left;">Copper cooling tube material</p> <p style="text-align: left;">Cast iron end bonnet material</p> <p style="text-align: left;">Steel tubesheet material</p> <p style="">Asset In Stock And Available Immediately </p> <p style=""><br></p> <p style="text-align: left;"><br></p>
