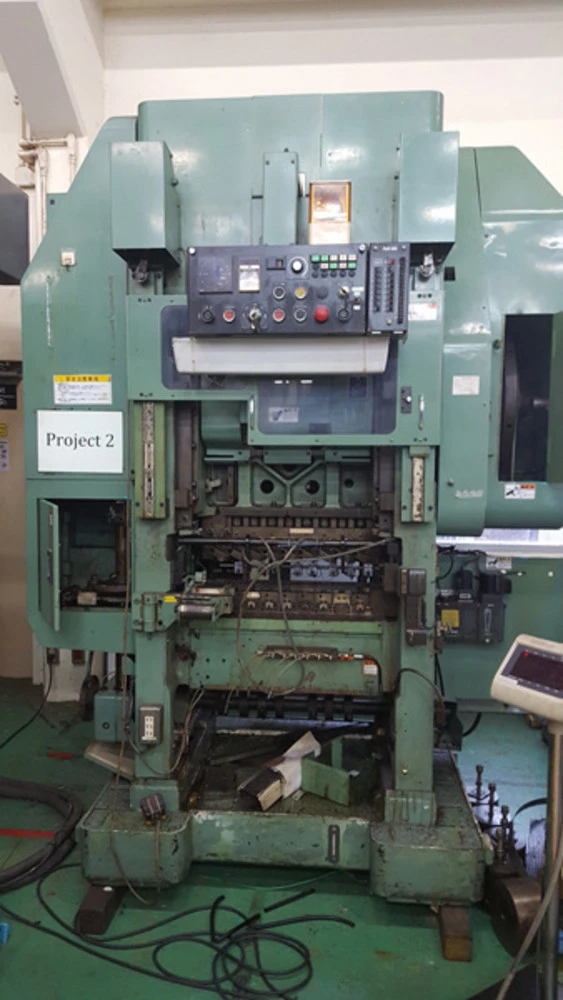

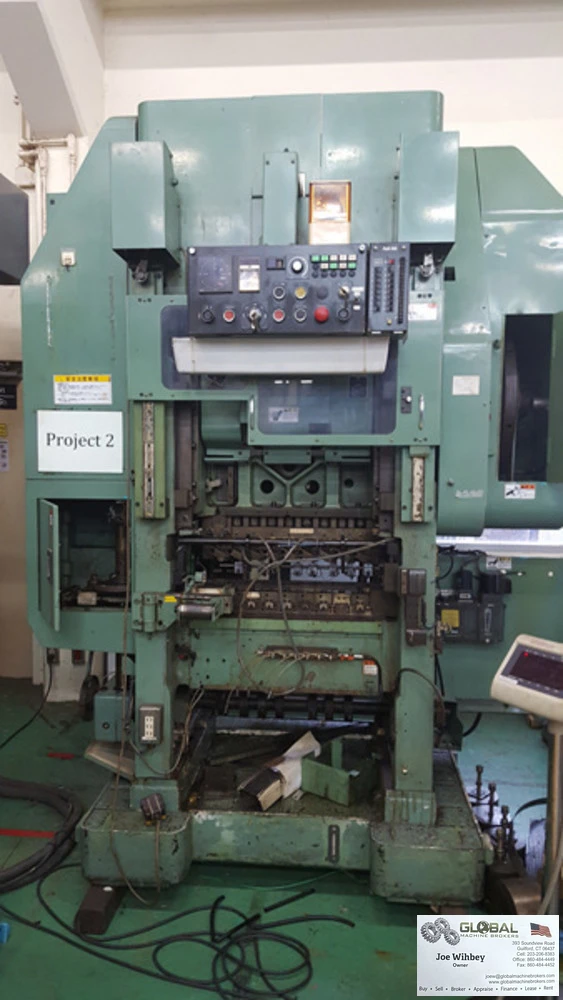

Asahi Seiki STP-25 Transfer Press 52mm Stroke New 1997 W/Air Clutch & Brake
Make: Asahi Seiki
Model: STP-25
Serial: 12096
Capacity: 25 Tons
Shut Height: 295 MM
Stroke: 52 MM (2.047")
Max Draw: 20.6 MM
9 Operation Die Set
Machine Speed: 50-200 Spm
Air Clutch & Brake
Roll Feed
Asahi Seiki Die Protection System
Lower Knock Out System- Bottom Shaft W/Rockers & Cams
Pull Through Roll Feed
Bijur Electric Oil System
AC Inverter/Speed Control
Built In Sound Enclosure
Press Is In Excellent Operating Condition, We Have Gone Through The Press & Have It Under Power For Demonstration
This Is A Higher Accuracu Transfer Press With The 6 Pt Straight Side Type Gib/Frame. You Run It At Higher Speeds & Tonnage For An Asahi Seiki TP25 /US Baird 325. It Is Not Rated For More Tonnage But It Can Operate Using More Of The Machines Rated Capacity At Rated Speed More Accurately
Weight: 9600
