<p>Leeson M1135244.00, DC Parallel Shaft Gearmotor, PE350 Series, 1/4 HP, 12 Volts, 21.0 Amps, 60 Hz, 42 RPMMake: Leeson Model: CM34D25NZ155ACat No: M1135244.00Condition: Used Overall In Excellent ConditionPermanent Magnet D.C Gearmotor Motor Specifications: Volts: 12AMPS: 21HP: 1/4Frame: 34Duty: ContinuousRPM: 42Type: DNTorque: 325Output: 0.19KWShaft Diameter: 0.Stevens Co."Shaft Extension Location: 1.625"Shaft Rotation: ReversibleShaft Type: ParallelRugged die cast aluminum gear housing for maximum gear and bearing support Precision machined gearing, hardened for maximum load capability All gearing designed and rated to AGMA class 9 standards and to withstand momentary shock overload of 200%Oversized output bearing for greater overhung load capacity and long life High carbon alloy output shaft provides maximum strength and rigidity All needle bearing journals are precision ground after heat treating to provide maximum fit and finishheavy duty industrial oil seals keeps lubricant in and dirt outGears and bearing are splash lubricated with permanents, heavy duty gear oilAsset In Stock And Available Immediately</p><br/><br/><p></p>

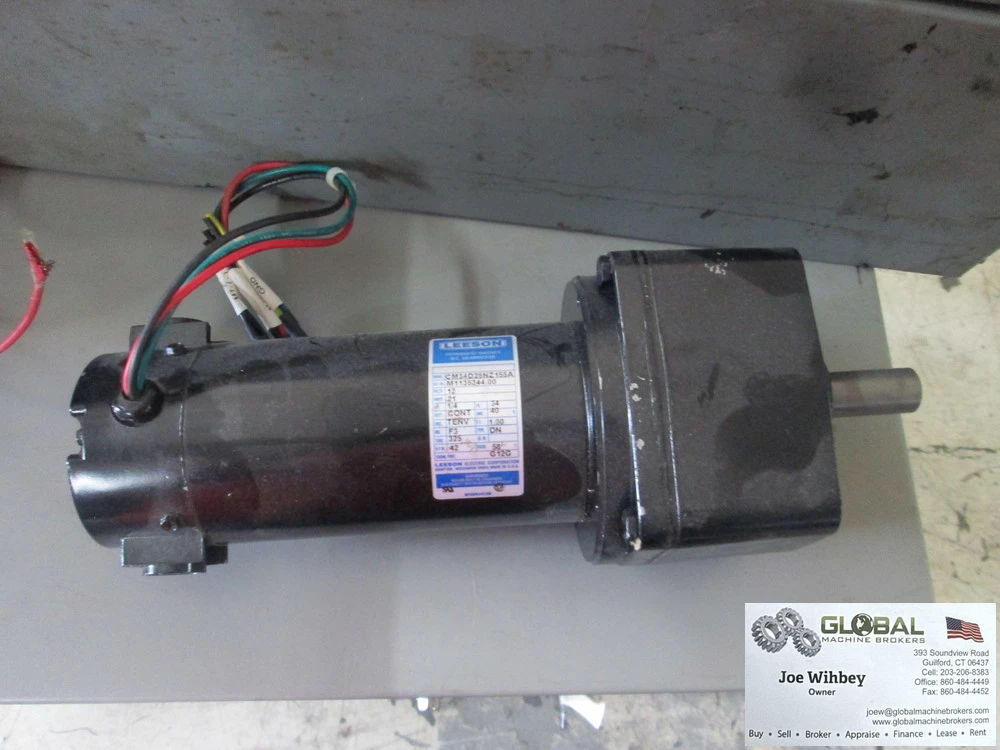

<h1 style="text-align: center; ">Leeson M1135244.00, DC Parallel Shaft Gearmotor, PE350 Series, 1/4 HP, 12 Volts, 21.0 Amps, 60 Hz, 42 RPM</h1>
<p style="text-align: left;">Make: Leeson </p>
<p style="text-align: left;">Model: CM34D25NZ155A</p>
<p style="text-align: left;">Cat No: M1135244.00</p>
<p style="text-align: left;">Condition: Used Overall In Excellent Condition</p>
<p style="text-align: left;">Permanent Magnet D.C Gearmotor </p>
<p style="text-align: left;">Motor Specifications: </p>
<ul>
<li style="text-align: left;">Volts: 12</li>
<li style="text-align: left;">AMPS: 21</li>
<li style="text-align: left;">HP: 1/4</li>
<li style="text-align: left;">Frame: 34</li>
<li style="text-align: left;">Duty: Continuous</li>
<li style="text-align: left;">RPM: 42</li>
<li style="text-align: left;">Type: DN</li>
<li style="text-align: left;">Torque: 325</li>
<li style="text-align: left;">Output: 0.19KW</li>
<li style="text-align: left;">Shaft Diameter: 0.750"</li>
<li style="text-align: left;">Shaft Extension Location: 1.625"</li>
<li style="text-align: left;">Shaft Rotation: Reversible</li>
<li style="text-align: left;">Shaft Type: Parallel</li>
</ul>
<p style="text-align: left;">Rugged die cast aluminum gear housing for maximum gear and bearing support </p>
<p style="text-align: left;">Precision machined gearing, hardened for maximum load capability </p>
<p style="text-align: left;">All gearing designed and rated to AGMA class 9 standards and to withstand momentary shock overload of 200%</p>
<p style="text-align: left;">Oversized output bearing for greater overhung load capacity and long life </p>
<p style="text-align: left;">High carbon alloy output shaft provides maximum strength and rigidity </p>
<p style="text-align: left;">All needle bearing journals are precision ground after heat treating to provide maximum fit and finish</p>
<p style="text-align: left;">heavy duty industrial oil seals keeps lubricant in and dirt out</p>
<p style="text-align: left;">Gears and bearing are splash lubricated with permanents, heavy duty gear oil</p>
<p style="text-align: left;">Asset In Stock And Available Immediately </p>
