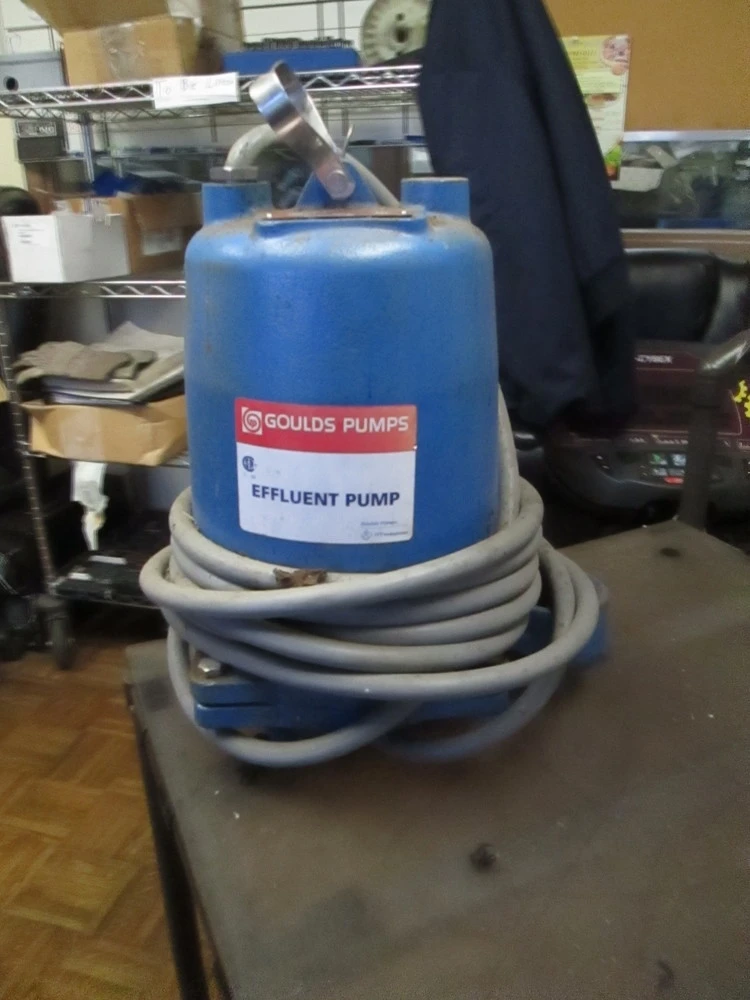

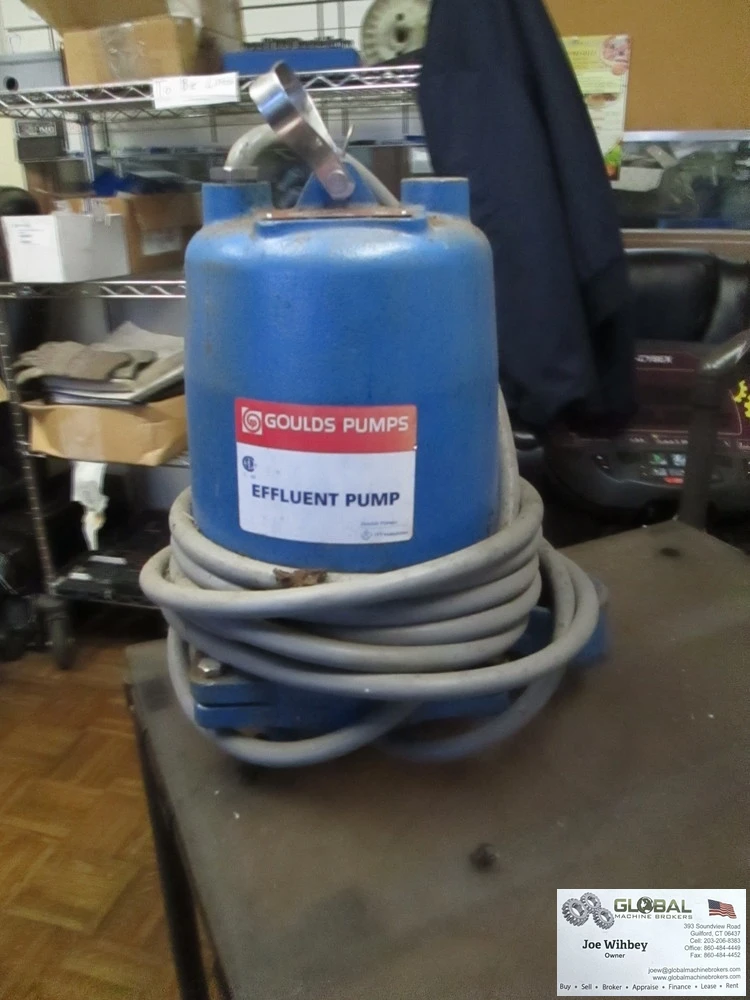

Goulds WE0532HS Submersible Effluent Pump, 1/2 HP, Three Phase, 230 Volt, 3.3 Max Amps
Have one to sell?
$820.00 USD
ConditionUsed
1 available
Goulds WE0532HS Submersible Effluent Pump, 1/2 HP, Three Phase, 230 Volt, 3.3 Max AmpsMake: GouldsModel: WE0532HSSerial No: A0159612Condition: Used, Overall In Good ShapeStyle: Submersible Material: Cast Iron Flow Rate: 80 Gallons Per min2" NPT Integral Vertical Discharge and is capable of handling effluent containing up to 3/4 Inch non abrasive solidsFeatures: Cast Iron, Semi Open Impeller, non clog with pump out vanes for mechanical seal protection. Balanced for smooth operation Mechanical Seal with silicone carbide vs silicon carbide sealing facesstainless steel metal partsLocknut to guard against component damage on accidental reverse rotation 300 Series Stainless Steel Fasteners Capable of Running dry without damage to componentsSpecifications: Product Type: Submersible Effluent PumpSeries: WEApplication: Wastewater Treatment Horsepower: 1/2Voltage: 230 Phase: 3 Frequency: 60 HZSpeed: 3450 RPMImpeller Type: Semi Open with pump out vanesImpeller Diameter: 3.56"Discharge Size: 2" NPTMaximum Flow 80 GPMMaximum Head: 45ftMaximum Solids Handling: 3/4"Maximum Current: 3.3 AmpsFlow At 10ft: 78GPMFlow at 25 Ft: 48 GPMFlow at 15 Ft: 70 GPMFlow At 30 Ft: 35 GPMFlow At 20 ft: 60 GPMFlow At 35 ft: 22 GPMPump Casing: cast iron Motor insulation: Class Bpower cord Length: 20ftLocked Rotor Current: 18.8 AmpsKVA Code: RFull Load Motor Efficiency: 70%Weight: 60lbsDimensions: 18" x 14" x 18" Weight: 60 Lbs
Weight: 60
Height: 18
Length: 18
Width: 14
