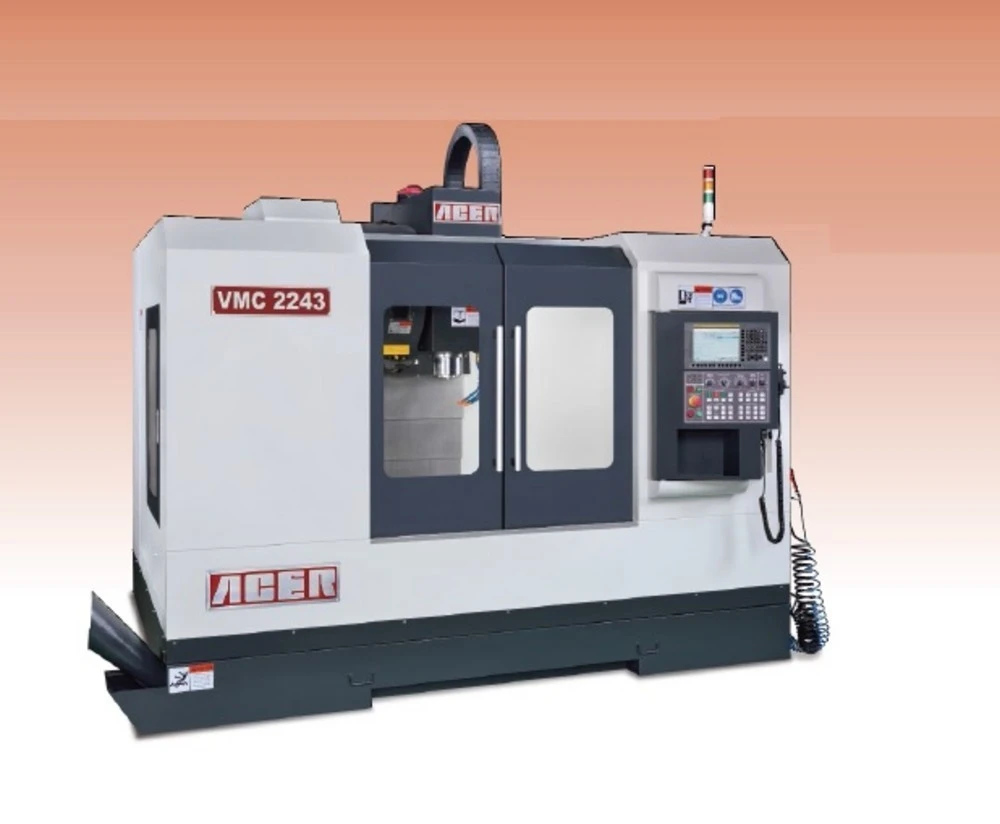

Acer VMC-2243 47"X 23" Table 10K Rpm Vert Machining Center W/Fanuc 0i-MF Control
Make: Acer
Model: VMC-2243
Control: Fanuc 0i-MF
Max X-Axis Travel: 43.31"
Max Y-Axis Travel: 23.62"
Max Z-Axis Travel: 24.02"
Table Size: 47.24" X 23.62"
Spindle Nose To Table Top: 4.92" To 23.62"
Max Table Load: 2,640 Lbs
Spindle Center To Slideways Of Column: 22.44"
Spindle Taper: CAT 40 (BT 40 Option)
Main Spindle Drive: 10 Hp/15Hp (30 Min)
Spindle Rpm: 10,000 (12,000 Option As Well As Other Speeds)
Belt Driven Servo Drive
Spindle ID: 2.56"
Rapid Traverse Rate: 1181.1"/Min All Axes
Cuting Feed Rate: 0-400 ipm
Leadscrew Diameter: 1.57" (40 mm) X,Y & X Axes
Linear Guideway Width: 1.77" All Axes
Direct Drive Servos
Tool Capacity: 24 Tool Arm Type Tool Changer (30 Tool Optional)
Tool To Tool Time: 5.5 Sec
Chip To Chip: 7.5 Sec
Positioning Accuracy: ±0.0002"
Repeatability Accuracy: ±0.00012"
230 Volt
3Ph
60 Hz
Required Air Pressure: 85 Psi
Standard Accessories:
Full Enclosure Splash Guard
Rotational Control Panel
XYZ W/Telescopic Way Cover
XYZ W/Linear Guideways and
C3 Precision Ball Screws
10,000 RPM Spindle At 15HP
24 Tool Side Mount Automatic
Tool Changer
Coolant System W/Coolant Pump
Rear Flush Coolant System
Air and Coolant Gun for Parts
Screw Type Chip Conveyer System W/Cart (Chip Auger)
Spindle Air Blast System
LED Work Light
Three Color Warning Light
Rigid Tapping
Spiral Chip Removal Ability
Forward Read Work Program Ability
M30 Command
RJ 45 Adapter
RS232 Adapter
CF Card Reader
Manual Pulse Generator
10.4” LCD Display
Operation Manual
Leveling Screws & Pads
Tool W/Tool Box
Automatic Lubrication System
Heat Exchanger Within Electric
Cabinet
Tool Change Floating Device
Optional Accessories:
20 Bar Thru Spindle Coolant System
12,000 RPM Spindle (Other Spindle Speeds Upon Request!)
Chain Type Chip Conveyer System
Tool and Workpiece Probe
Oil Skimmer
Extra 8 M Codes
4th Axis
Main Power Transformer
30 Tools Side Mount Automatic Tool Changer
Three Axes Digital Scale
Ring Splash Coolant System
Spindle Oil Chiller (Cooler) System
Manual Guide i
Data Server
AICC II
Upgrade 20HP Spindle Motor
Weight: 14300
Height: 112
Length: 119
Width: 89
