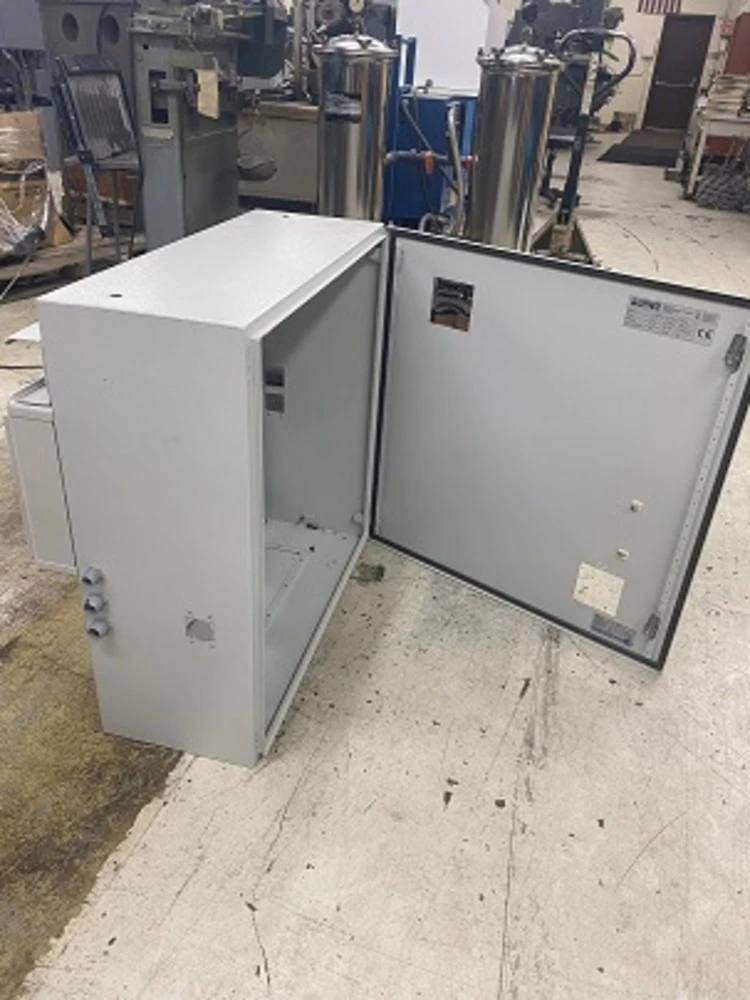

Compact enclosures AE Model No. AE 1073.500
Electrical| $399.00 USD |
Compact enclosures AE Model No. AE 1073.500
Material:
Enclosure: Sheet steel
Door: Sheet steel, all-round foamed-in PU seal
Surface finish:
Enclosure and door: Dipcoat primed, powder-coated on the outside, textured paint
Mounting plate: Zinc-plated
Colour:
RAL 7035
Protection category IP to IEC 60 529:
IP 66
Protection category NEMA:
NEMA 4
IK Code:
IK08
Supply includes:
Enclosure with hinged door(s), of all-round solid construction
Gland plate(s) in enclosure base
Mounting plate
Lock: 3 mm double-bit
Basic material:
Sheet steel
Dimensions:
Width: 760 mm
Height: 760 mm
Depth: 300 mm
Material thickness:
Enclosure: 1.5 mm
Door: 2 mm
Mounting plate: 3 mm
Mounting plate:
Width: 704 mm
Height: 730 mm
Number of doors:
1
Door hinged on the right, may be swapped to the left:
yes
Lock version:
Cam
Number of locks:
2
Lock insert:
3 mm double-bit
Gland plate, size:
5
Gland plate, qty.:
1
Packs of:
1 pc(s).
Weight/pack:
44.5 kg
EAN:
4028177252349
Customs tariff number:
94032080
ETIM 7.0:
EC000261
ETIM 6.0:
EC000261
eCl@ss 8.0/8.1:
27180101
eCl@ss 6.0/6.1:
27180101
Product description:
AE Compact enclosure, WHD: 760x760x300 mm, Sheet steel, with mounting plate, single-door, with two cam locks
Info Taken from the Web
Weight: 90
Height: 11
Length: 30
Width: 30
