<p>NEW Dayton 6A855 Multi-Function Solid State Time Delay Relay, 11 Pins Relay, 120VACMake: Dayton Model: 6A855Serial No: 9817Condition: NewMulti function timing relaySpecifications: Coil Volts: 120 VACAC Contact Rating: 10A @240VDC Contact Rating: 10A @ 30VBase Type: Octal Plug in relayNumber Of Pins Relay: 11Mounting Relay: 11Power Consumption: 3VATimer Adjustment Method: Push Button, Rotary KnobMin Time Setting: .05 Sec Max Time Setting: 41 Day and 15 HrStatus Indicator: LEDContact Material Silver Nickel Body Height 2.9"Body Width: 2.4"Body Depth: 1.7"Overall Height: 3"Electrical Connection: Socket (1EGP2,1EGP4,6X156Hz: 50/60Overview:This programmable time delay relay offers an easy and accurate way to select one of 10 functions and any time delay between 50ms and 999 hours. Programming is accomplished by using a pushbutton thumbwheel to select one of the ten built-in functions, one of seven built-in time ranges and to digitally set the time delay required. An LED indicates timing mode and time-out condition. Functions include On Delay, Interval On, Off Delay, Single Shot, On/Off Delay, Flasher (ON First), Flasher (OFF First), Triggered On Delay, Watchdog and Single Shot Falling Edge.2 in Stock And Available Immediately $125 Each</p><br/><br/><p></p>

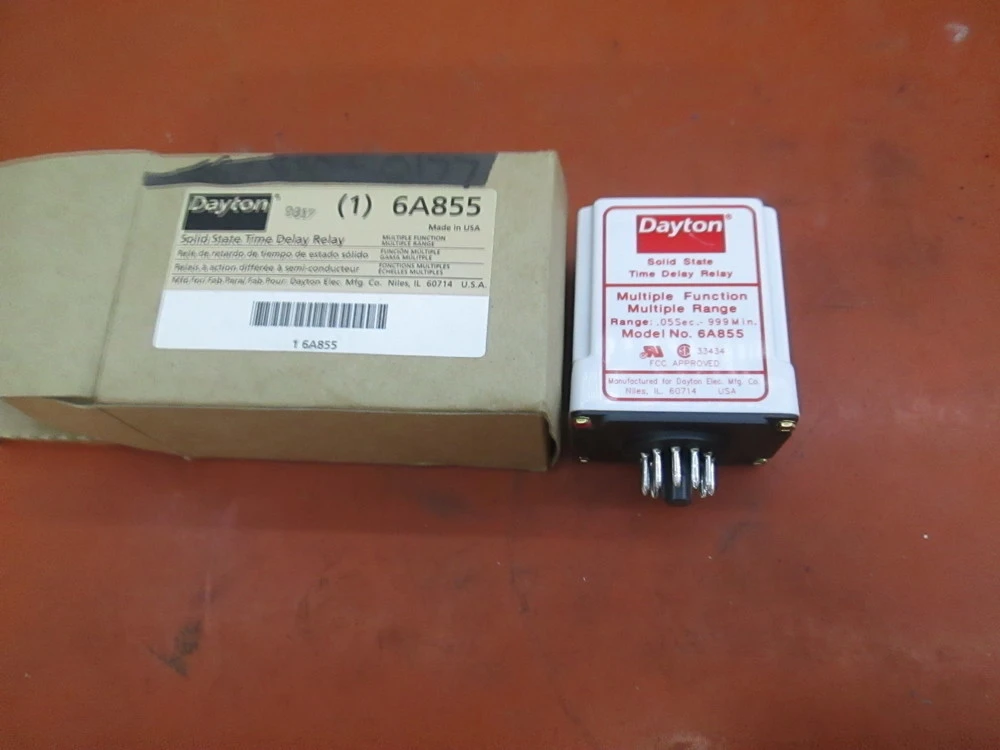

<h1 style="text-align: center;">NEW Dayton 6A855 Multi-Function Solid State Time Delay Relay, 11 Pins Relay, 120VAC</h1>
<p style="text-align: left;">Make: Dayton </p>
<p style="text-align: left;">Model: 6A855</p>
<p style="text-align: left;">Serial No: 9817</p>
<p style="text-align: left;">Condition: New</p>
<p style="text-align: left;">Multi function timing relay</p>
<p style="text-align: left;"><b>Specifications: </b></p>
<ul>
<li style="text-align: left;">Coil Volts: 120 VAC</li>
<li style="text-align: left;">AC Contact Rating: 10A @240V</li>
<li style="text-align: left;">DC Contact Rating: 10A @ 30V</li>
<li style="text-align: left;">Base Type: Octal Plug in relay</li>
<li style="text-align: left;">Number Of Pins Relay: 11</li>
<li style="text-align: left;">Mounting Relay: 11</li>
<li style="text-align: left;">Power Consumption: 3VA</li>
<li style="text-align: left;">Timer Adjustment Method: Push Button, Rotary Knob</li>
<li style="text-align: left;">Min Time Setting: .05 Sec </li>
<li style="text-align: left;">Max Time Setting: 41 Day and 15 Hr</li>
<li style="text-align: left;">Status Indicator: LED</li>
<li style="text-align: left;">Contact Material Silver Nickel </li>
<li style="text-align: left;">Body Height 2.9"</li>
<li style="text-align: left;">Body Width: 2.4"</li>
<li style="text-align: left;">Body Depth: 1.7"</li>
<li style="text-align: left;">Overall Height: 3"</li>
<li style="text-align: left;">Electrical Connection: Socket (1EGP2,1EGP4,6X156</li>
<li style="text-align: left;">Hz: 50/60</li>
</ul>
<p style="text-align: left;"><b>Overview:</b></p>
<p style="text-align: left;"></p>
<div class="description description__container--small " style="line-height: 1.5; margin-bottom: 24px; width: 589px;"></div>
<p></p>
<ul><li style="line-height: 1.5; margin-bottom: 0px; height: auto;">This programmable time delay relay offers an easy and accurate way to select one of 10 functions and any time delay between 50ms and 999 hours. Programming is accomplished by using a pushbutton thumbwheel to select one of the ten built-in functions, one of seven built-in time ranges and to digitally set the time delay required. An LED indicates timing mode and time-out condition. Functions include On Delay, Interval On, Off Delay, Single Shot, On/Off Delay, Flasher (ON First), Flasher (OFF First), Triggered On Delay, Watchdog and Single Shot Falling Edge.</li></ul>
<p style="line-height: 1.5; margin-bottom: 0px; height: auto;">2 in Stock And Available Immediately </p>
<p style="line-height: 1.5; margin-bottom: 0px; height: auto;">$125 Each</p>
