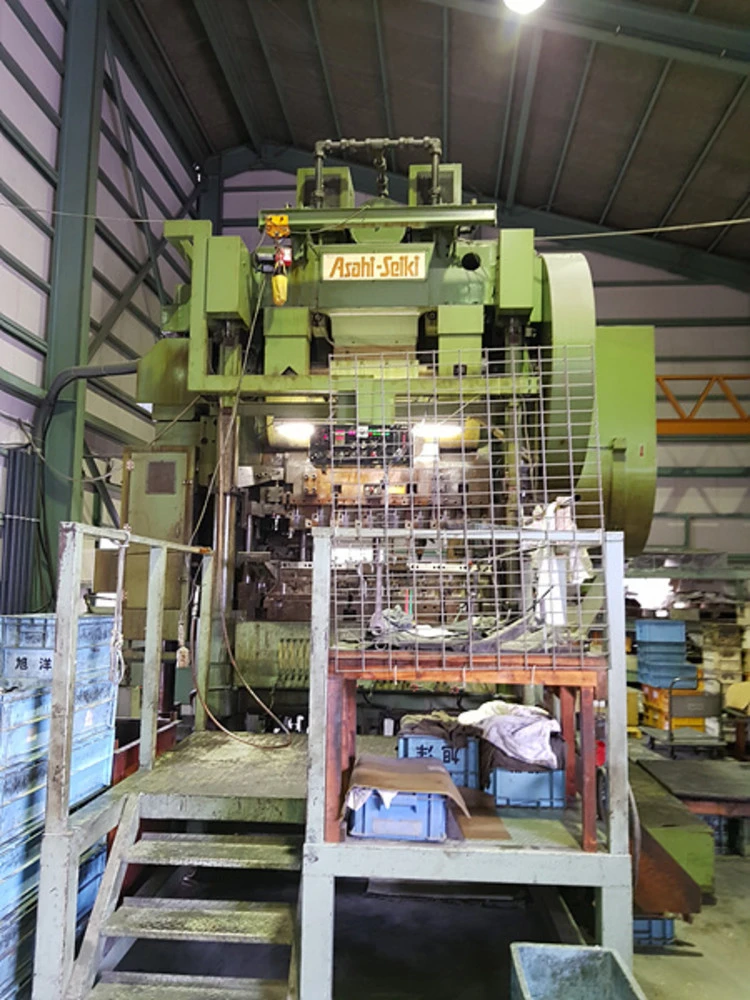

<p>Asahi Seiki TP-150 (#11936 / 1993. 11)</p>
<p>Capacity : 150ton</p>
<p>Stroke : 152mm</p>
<p>Shut height : 765mm</p>
<p>Speed : 20-60spm</p>
<p>No. of stations : 9</p>
<p>Pitch : 173mm</p>
<p>Max Blank: 119mm</p>
<p>With die set, transfer slide, die & punch holders for all stations</p>
<p>New AC inverter, sequencer & cam positioner by Asahi-Seiki. </p>
<p>There is DIMAC feeder on this press but, this feeder is out of order. Feed does not work.</p>
<p>Regarding on shut height, shut height is shown different than nameplate. The reason is that</p>
<p>with this TP-150, a bolster plate is located between the bolster and the die bed (lower die),</p>
<p> and a top plate is there between bottom surface of ram and punch plate (upper die) respectively.</p>
<p> These plates are there so that shut height is different between nameplate & original shut height. Asahi-Seiki confirmed. This plate was installed by current user. It can all be removed to return to original shut height. </p>
<p> We have a drawing for reference. Inquire if you want an email copy.</p>
<p>Press is located in Japan and will be partially disassembled for exporting. Counter balances, motor, guarding and oil / coolant pan will be removed. Press will ship out at 11' tall x 10' wide x 8' deep.</p>
<p>5 sets of blank die holders</p>
<p>Knock-out plunger for 12 stations</p>
<p>5 sets of punch & die holders</p>
<p>5 sets of transfer slide are included with this press.</p><br/><br/><p></p>
