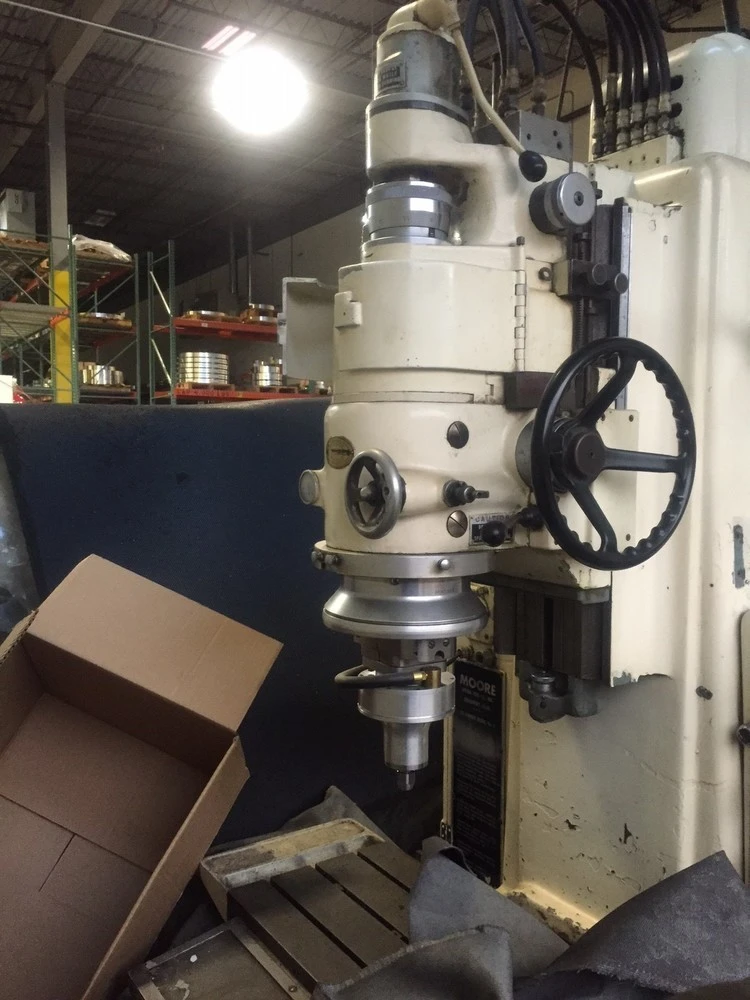

<p>Moore Jig Grinder Model No. 3 220 Volt 1Ph W/40,000 RPM Brand New Spindle</p>
<p>Make: Moore</p>
<p>Model: 3</p>
<p>Serial: G381</p>
<p>Table Size: 11" X 24"</p>
<p>Cross Table Travel: 11"</p>
<p>Spindle Head Vertical Travel: 12-5/8" (Manual)</p>
<p>Spindle Travel: 3-5/8" (Power)</p>
<p>Distance Table To Spindle: 2" Min. to 18" Max.</p>
<p>Center Of Spindle Back To Column Ways: 10"</p>
<p>Center Of Spindle Back To Below Column Ways: 13-1/2"</p>
<p>Variable Spindle Rotation Speeds: 25 to 225 RPM</p>
<p>Variable Spindle Feeds: 2 to 120 SPM</p>
<p>Range Of Hole Sizes That Can Be Ground: 1/64" to 3-1/2" Dia.</p>
<p>Seller Replaced The Spindle In 2017 W/ A New 40k Rpm Head At A Cost Of $7,000</p>
<p>Ways On The Saddle Look Very Good In Both X And Y Direction. No Groves Or Wear Marks.</p>
<p>Table In Good Condition</p>
<p>(1) Grinding Head, Speed Rate 40,000 RPM</p>
<p>Way Cover All Around Table</p>
<p>Hard Square Box Style Ways in Good Condition</p>
<p>Manually Adjustable Grinding Head</p>
<p>Spindle Temperature Gage</p>
<p>Micrometer Adjustable Head Carrier Stop</p>
<p>Adjustable Air Control Of Grinding Head</p>
<p>Adjustable Auto Feed Air Controller</p>
<p> </p>
<p>220 Volt </p>
<p>1 Ph</p>
<p>6.3 Amps Full Load</p>
<p>Available Immediately</p><br/><br/><p></p>
<h1 style="text-align: center;">Moore Jig Grinder Model No. 3 220 Volt 1Ph W/40,000 RPM Brand New Spindle</h1>
<p>Make: Moore</p>
<p>Model: 3</p>
<p>Serial: G381</p>
<p>Table Size: 11" X 24"</p>
<p>Cross Table Travel: 11"</p>
<p>Spindle Head Vertical Travel: 12-5/8" (Manual)</p>
<p>Spindle Travel: 3-5/8" (Power)</p>
<p>Distance Table To Spindle: 2" Min. to 18" Max.</p>
<p>Center Of Spindle Back To Column Ways: 10"</p>
<p>Center Of Spindle Back To Below Column Ways: 13-1/2"</p>
<p>Variable Spindle Rotation Speeds: 25 to 225 RPM</p>
<p>Variable Spindle Feeds: 2 to 120 SPM</p>
<p>Range Of Hole Sizes That Can Be Ground: 1/64" to 3-1/2" Dia.</p>
<p>Seller Replaced The Spindle In 2017 W/ A New 40k Rpm Head At A Cost Of $7,000</p>
<p>Ways On The Saddle Look Very Good In Both X And Y Direction. No Groves Or Wear Marks.</p>
<p>Table In Good Condition</p>
<p>(1) Grinding Head, Speed Rate 40,000 RPM</p>
<p>Way Cover All Around Table</p>
<p>Hard Square Box Style Ways in Good Condition</p>
<p>Manually Adjustable Grinding Head</p>
<p>Spindle Temperature Gage</p>
<p>Micrometer Adjustable Head Carrier Stop</p>
<p>Adjustable Air Control Of Grinding Head</p>
<p>Adjustable Auto Feed Air Controller</p>
<p> </p>
<p>220 Volt </p>
<p>1 Ph</p>
<p>6.3 Amps Full Load</p>
<p>Available Immediately </p>
