ACER HIGH PRECISION SURFACE GRINDER AGS-2480AHD w/ Standard Accessories
Have one to sell?
$133,800.00 USD
ConditionNew
1 available
New

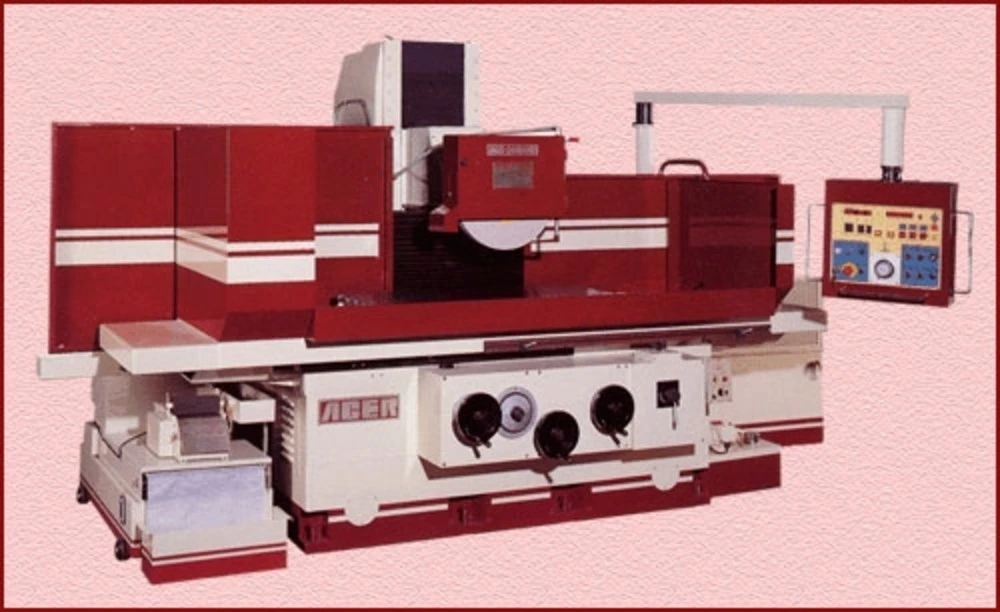

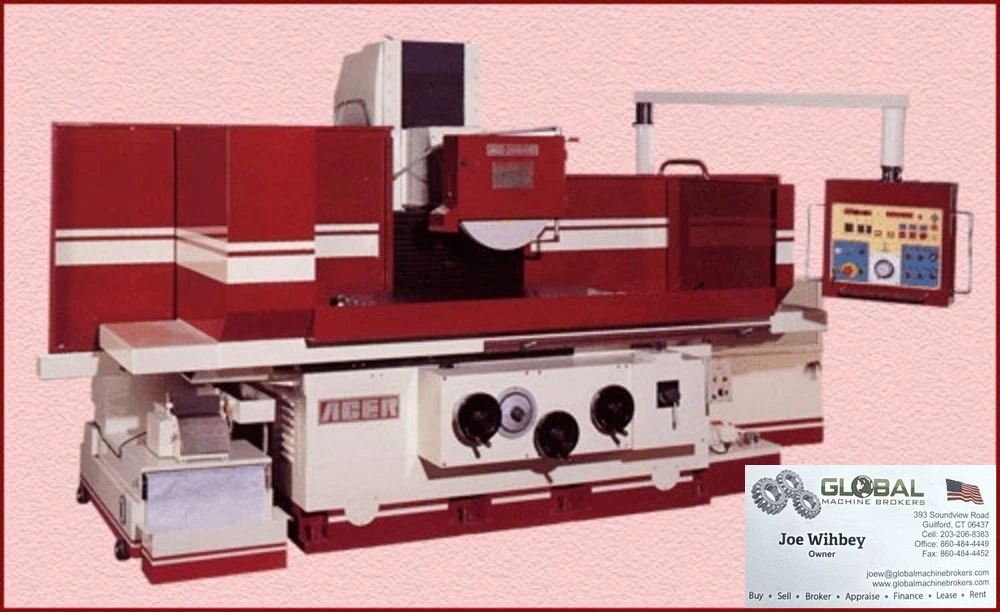

ACER HIGH PRECISION SURFACE GRINDER
Model: AGS-2480AHD w/ Standard Accessories $ 133,800.00
Features: (3-Axis Auto Movement)
Precision “Turcite-B” Ways; Column Movement
Hydraulic Table & Electronic Crossfeed
Auto Incremental Downfeed
Auto Lubricator, Rapid Elevation
Maximum Working Capacity: 24” x 80”
w/ NC Downfeed
Optional Accessories:
Extra Wheel Flange…………………………………………………………….. $ 700.00
Electric Overhead Dresser (Factory Installed Only)(2-Axis)………………….. $ 4,800.00
Hydraulic Overhead Dresser (Factory Installed Only)(Single Axis)……........... $ 2,000.00
Upgrade to 15HP Japan Fuji Spindle Motor……………………………........... $ 4,500.00
“NEWALL” 2-Axis D.R.O. (28” x 34” Travel, 0.0001” resolution)………….. $ 3,400.00
“MAGNESCALE” 2-Axis D.R.O. (30” x 36” Travel, 0.00002” resolution)..… $ P.O.R.
Bracket & Installation Fee for D.R.O……………………………………. Net $ 550.00
Specifications:
Longitudinal Travel:
83”
Grinding Wheel:
20” x 2” x 5”
Cross Feed Travel:
24-1/2”
Vertical Graduation:
0.0005”
Spindle Center to Table:
33”
Vertical Revolution:
0.05”
Table Size:
24” x 80”
T-Slot:
1” x 9/16”
Wheel Speed:
1,150 RPM
Table Speed:
16 - 80 ft./min.
Spindle Motor:
15 HP (V3)
Net Weight:
18,700 lbs.
Standard Accessories:
1 pc. Wheel Balancing Base 1 pc. Wheel Balancing Arbor
1 pc. Grinding Wheel 1 pc. Wheel Flange
1 pc. Manual Diamond Dresser 1 pc. Halogen Work Light
1 set Toolbox w/ Tools 1 set Splash Guard
**Photos in grey are of an actual machine that is primered and ready for Acer Burgundy and Beige paint
Weight: 21340
Height: 103
Length: 323
Width: 119
