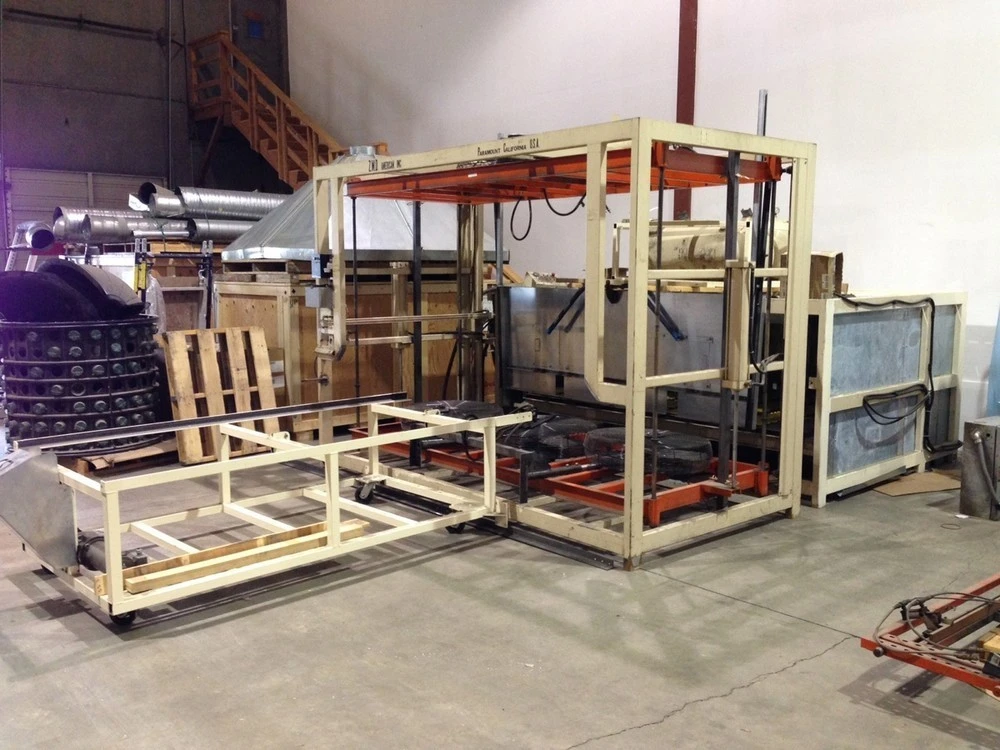

<p>4' x 8' ZMD Thermoformer</p>
<p>MFG. By Z.M.D. International Inc.</p>
<p> </p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;Single station<br/>&nbsp;&nbsp;&nbsp;&nbsp;Forming area 4'x8'<br/>&nbsp;&nbsp;&nbsp;&nbsp;Stroke on bottom platen about 24"<br/>&nbsp;&nbsp;&nbsp;&nbsp;Stroke on top platen about 36"<br/>&nbsp;&nbsp;&nbsp;&nbsp;30" daylight bottom platen<br/>&nbsp;&nbsp;&nbsp;&nbsp;42" daylight top platen<br/>&nbsp;&nbsp;&nbsp;&nbsp;Powerful pneumatic system that enable fast movement of the platen for faster cycle.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Two vacuum tanks. Comes with separate "2 story" rack for space saving.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Overall dimensions:<br/>&nbsp;&nbsp;&nbsp;&nbsp;143"wide x 167" deep x 93" tall (with top cylinders removed)<br/>&nbsp;&nbsp;&nbsp;&nbsp;Machine can be shipped in 2 sections: <br/>&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;(Front: 139" wide x 67" deep x 93" tall with top cylinders removed) <br/>&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;&nbsp;(Back: 139" wide x 100"deep x 56"tall<br/>&nbsp;&nbsp;&nbsp;&nbsp;<br/>&nbsp;&nbsp;&nbsp;&nbsp;</p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p> </p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;Recent Modification</p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;New Windows software (Smartform) installed on a brand new computer. Including rolling cart.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Extended oven, 2' deeper at the back to improve heating control.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Added 6 zones on top and 6 at the bottom. This machine now has 28 zones on top and 28 at the pbottom for a total of 56 zones<br/>&nbsp;&nbsp;&nbsp;&nbsp;162 ceramic heaters for bottom oven.<br/>&nbsp;&nbsp;&nbsp;&nbsp;28 panel glass heaters for top of oven<br/>&nbsp;&nbsp;&nbsp;&nbsp;New electrical/electronic panel designed by ZMD was added to the machine for the extra 12 zones<br/>&nbsp;&nbsp;&nbsp;&nbsp;Upgraded bottom heaters from glass to ceramic.<br/>&nbsp;&nbsp;&nbsp;&nbsp;Top heaters are glass panel<br/>&nbsp;&nbsp;&nbsp;&nbsp;Enclosed oven to improve heating control (heat shield)</p>
<p> </p>
<p>Extras</p>
<p> </p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;New removable on demand conveyor system was added to this machine to be able to bring other type of mould in and out of the oven with an automated door system. This conveyor is controlled by vaariable DC motor control. Can easily switch from regular thermoforming to conveyor style quickly.</p>
<p> </p>
<p>Electrical Specifications</p>
<p> </p>
<p> </p>
<p>&nbsp;&nbsp;&nbsp;&nbsp;480VAC3PH280 AMPS (heaters only)<br/>&nbsp;&nbsp;&nbsp;&nbsp;Bottom oven motor: 1/2 HP SP 7.5 AMPS<br/>&nbsp;&nbsp;&nbsp;&nbsp;Other: 120V 20 AMPS breakers for 6 fans</p><br/><br/><p></p>
<h1>4' x 8' ZMD Thermoformer</h1>
<h2>MFG. By Z.M.D. International Inc.</h2>
<p> </p>
<ul>
<li><span style="background-color: initial;">Single station</span></li>
<li><span style="background-color: initial;">Forming area 4'x8'</span></li>
<li><span style="background-color: initial;">Stroke on bottom platen about 24"</span></li>
<li><span style="background-color: initial;">Stroke on top platen about 36"</span></li>
<li><span style="background-color: initial;">30" daylight bottom platen</span></li>
<li><span style="background-color: initial;">42" daylight top platen</span></li>
<li>
<span style="background-color: initial;">Powerful pneumatic system that </span><span style="background-color: initial;">enable fast movement of the platen </span><span style="background-color: initial;">for faster cycle.</span>
</li>
<li>
<span style="background-color: initial;">Two vacuum tanks. Comes with </span><span style="background-color: initial;">separate "2 story" rack </span><span style="background-color: initial;">for space saving.</span>
</li>
<li><span style="background-color: initial;">Overall dimensions:</span></li>
<li>
<span style="background-color: initial;">143"wide x 167" deep x 93" tall </span><span style="background-color: initial;">(with top cylinders removed)</span>
</li>
<li>
<span style="background-color: initial;">Machine can be shipped in 2 </span><span style="background-color: initial;">sections: </span>
<ul>
<li>
<span style="background-color: initial;">(Front: 139" wide x 67" deep x 93" </span><span style="background-color: initial;">tall with top cylinders removed) </span>
</li>
<li><span style="background-color: initial;">(Back: 139" wide x 100"deep x 56"tall</span></li>
</ul>
</li>
</ul>
<p> </p>
<p> </p>
<h5> </h5>
<p> </p>
<p> </p>
<ul>
<li>Recent Modification</li>
</ul>
<ul>
<li>New Windows software (Smartform) installed on a <span style="background-color: initial;">brand new computer. Including rolling cart.</span>
</li>
<li>Extended oven, 2' deeper at the back to improve heating control.</li>
<li>Added 6 zones on top and 6 at the bottom. This machine now has 28 zones on top and 28 at the pbottom for a total of 56 zones</li>
<li>162 ceramic heaters for bottom oven.</li>
<li>28 panel glass heaters for top of oven</li>
<li>New electrical/electronic panel designed by ZMD was added to the machine for the extra 12 zones</li>
<li>Upgraded bottom heaters from glass to ceramic.</li>
<li>Top heaters are glass panel</li>
<li>Enclosed oven to improve heating control (heat shield)</li>
</ul>
<p> </p>
<h5><span style="background-color: initial;">Extras</span></h5>
<p> </p>
<ul>
<li><span style="background-color: initial;">New removable on demand conveyor system was added to this machine to be able to bring other type of mould in and out of the oven with an automated door system. This conveyor is controlled by vaariable DC motor control. Can easily switch from regular thermoforming to conveyor style quickly.</span></li>
</ul>
<p> </p>
<h5><span style="background-color: initial;">Electrical Specifications</span></h5>
<p> </p>
<p> </p>
<ul>
<li><span style="background-color: initial;">480VAC3PH280 AMPS (heaters only)</span></li>
<li><span style="background-color: initial;">Bottom oven motor: 1/2 HP SP 7.5 AMPS</span></li>
<li><span style="background-color: initial;">Other: 120V 20 AMPS breakers for 6 fans</span></li>
</ul>
