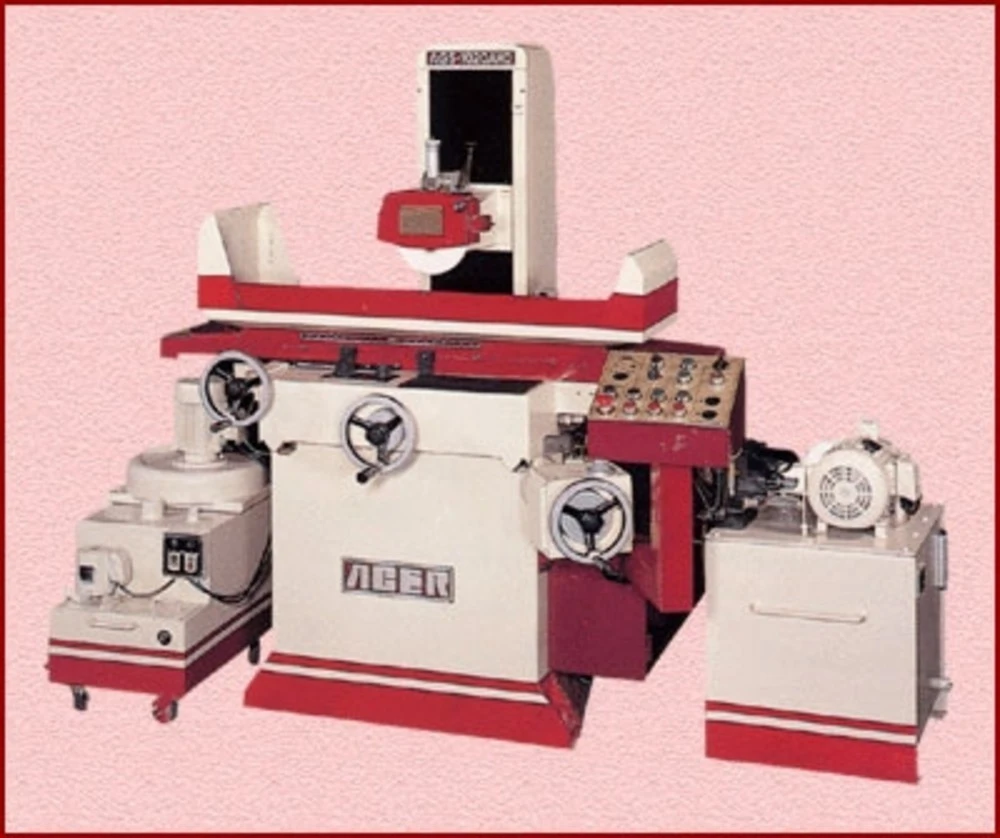

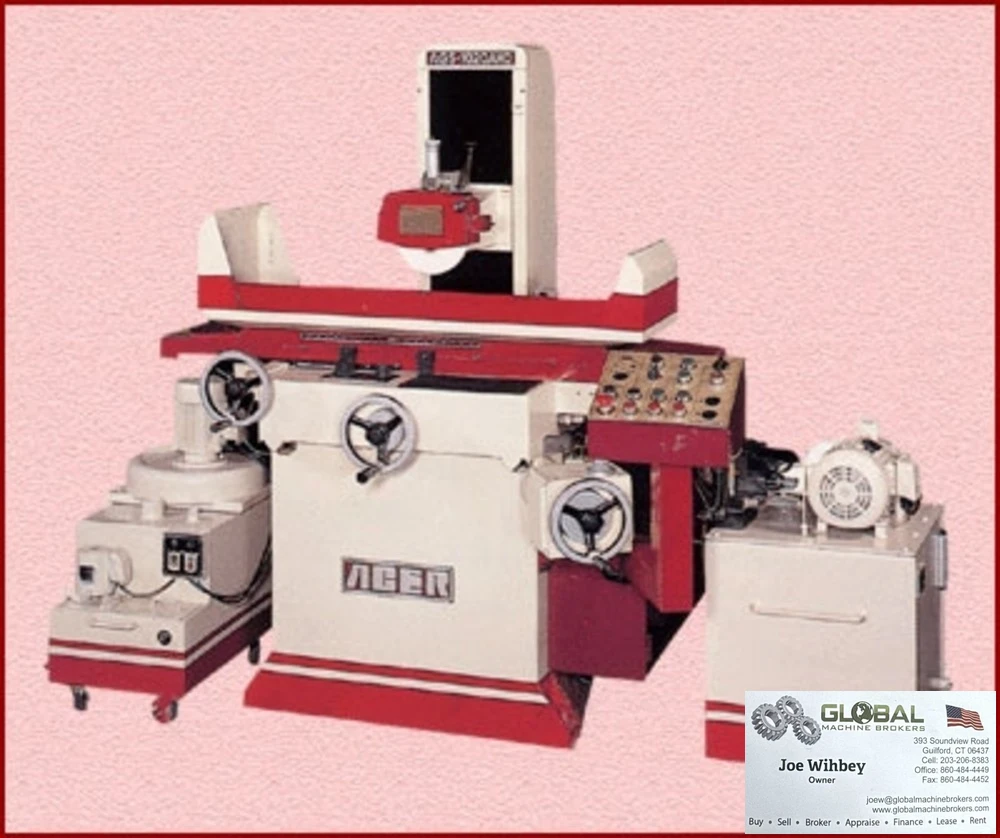

<p class="MsoTitle"><span style="font-size:14.0pt">ACER HIGH PRECISION SURFACE GRINDER </span> </p>
<p><span style="tab-stops:right 6.75in"><b><u><span style="font-size:11.5pt">Features:</span></u></b><span style="font-size:11.5pt"> (3-Axis Auto Movement)</span></span></p>
<ul>
<li><span style="tab-stops:.5in"><span style="font-size:11.5pt">Precision “Turcite-B” Ways</span></span></li>
<li><span style="tab-stops:.5in"><span style="font-size:11.5pt">Hydraulic Table & Electronic Cross Feed</span></span></li>
<li><span style="tab-stops:.5in"><span style="font-size:11.5pt">Auto Incremental Downfeed; Auto Lubrication</span></span></li>
<li><span style="tab-stops:.5in"><span style="font-size:11.5pt">Enhanced Feature: Rapid Elevation</span></span></li>
<li><span style="tab-stops:.5in"><span style="font-size:11.5pt">Working Capacity: 8” x 18”</span></span></li>
</ul>
<p> </p>
<p><b><u><span style="font-size:11.5pt">Optional Accessories:</span></u></b></p><p><!--StartFragment-->“ACER” 8” x 18” Permanent Magnetic Chuck (Regular Pole)…………… $ 1,400.00 <br></p><p>2. “ACER” 8” x 18” Permanent Magnetic Chuck (Fine Pole).............................. $ 2,050.00 <br></p><p>3. “ACER” 8” x 18” Electro Chuck with Control (Regular Pole)……………….. $ 1,850.00 <br></p><p>4. “ACER” 8” x 18” Electro Chuck with Control (Fine Pole)……………………$ 2,700.00 <br></p><p>5. “WALKER” 8” x 18” Permanent Magnetic Chuck (Fine Pole)……………….$ P.O.R.</p><p>6. “WALKER” 8” x 18” Electro Chuck w/ Chuck Control (Fine Pole)………….$ P.O.R. <br></p><p>7. Manual Parallel Dresser (overhead)……………………………………………$ 645.00 <br></p><p>8. Coolant System……………………………………………………………….. $ 680.00 <br></p><p>9. Dust Suction & Coolant System (1010)………………………………………..$ 1,575.00 <br></p><p>10. Coolant System (1010) w/ Paper Filter………………………………………...$ 1,850.00 <br></p><p>11. Coolant System (1010 ) w/ Magnetic Separator & Paper Filter………………. $ 2,550.00 <br></p><p>12. Extra Wheel Flange…………………………………………………………….$ 145.00 <br></p><p>13. “NEWALL” 2-Axis D.R.O. (0.0001” Resolution)……………………………. $ 3,420.00 <br></p><p>14. “MAGNESCALE” 2-Axis D.R.O. (0.00002” Resolution)…………………….$ P.O.R. <br></p><p>15. Bracket & Installation Fee for D.R.O……………………………… Net $ 495.00<!--EndFragment--></p><p></p><p style="margin-left:31.0pt"><span style="tab-stops:45.0pt .75in 1.0in"><b><u><span style="font-size:11.5pt">Specifications:</span></u></b></span></p><table class="Table" style="margin-left:.2in; border-collapse:collapse; border:solid windowtext 1.0pt">
<tbody>
<tr>
<td style="width:1.75in; border:solid windowtext 1.0pt" width="168">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">Longitudinal Travel:</span></span></p>
</td>
<td style="width:81.0pt; border:solid windowtext 1.0pt; border-left:none" width="108">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">20-1/2”</span></span></p>
</td>
<td style="width:1.5in; border:solid windowtext 1.0pt; border-left:none" width="144">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">Grinding Wheel:</span></span></p>
</td>
<td style="width:166.5pt; border:solid windowtext 1.0pt; border-left:none" width="222">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">8”(OD) x 1/2”(W) x 1- 1/4” (ID)</span></span></p>
</td>
</tr>
<tr>
<td style="width:1.75in; border:solid windowtext 1.0pt; border-top:none" width="168">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">Cross Feed Travel:</span></span></p>
</td>
<td style="width:81.0pt; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="108">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="font-size:11.5pt">11”</span></p>
</td>
<td style="width:1.5in; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="144">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">Vertical Graduation:</span></span></p>
</td>
<td style="width:166.5pt; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="222">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">0.0005”</span></span></p>
</td>
</tr>
<tr>
<td style="width:1.75in; border:solid windowtext 1.0pt; border-top:none" width="168">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><place w:st="on"><placename w:st="on"><span style="font-size:11.5pt">Spindle</span></placename><span style="font-size:11.5pt"> <placetype w:st="on">Center</placetype></span></place><span style="font-size:11.5pt"> to Table:</span></span></p>
</td>
<td style="width:81.0pt; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="108">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="font-size:11.5pt">19-3/4”</span></p>
</td>
<td style="width:1.5in; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="144">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">Vertical Revolution:</span></span></p>
</td>
<td style="width:166.5pt; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="222">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">0.1”</span></span></p>
</td>
</tr>
<tr>
<td style="width:1.75in; border:solid windowtext 1.0pt; border-top:none" width="168">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">Table Size:</span></span></p>
</td>
<td style="width:81.0pt; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="108">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="font-size:11.5pt">9” x 20”</span></p>
</td>
<td style="width:1.5in; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="144">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">Spindle Motor:</span></span></p>
</td>
<td style="width:166.5pt; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="222">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">2 HP (V3)</span></span></p>
</td>
</tr>
<tr>
<td style="width:1.75in; border:solid windowtext 1.0pt; border-top:none" width="168">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">Wheel Speed:</span></span></p>
</td>
<td style="width:81.0pt; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="108">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">3,500 <stockticker w:st="on">RPM</stockticker></span></span></p>
</td>
<td style="width:1.5in; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="144">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">T-Slot:</span></span></p>
</td>
<td style="width:166.5pt; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="222">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">1” x 9/16”</span></span></p>
</td>
</tr>
<tr>
<td style="width:1.75in; border:solid windowtext 1.0pt; border-top:none" width="168">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">Table Speed: Hydraulic</span></span></p>
</td>
<td style="width:81.0pt; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="108">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="font-size:11.5pt">16 ~ 80 fpm</span></p>
</td>
<td style="width:1.5in; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="144">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">Net Weight:</span></span></p>
</td>
<td style="width:166.5pt; border-top:none; border-left:none; border-bottom:solid windowtext 1.0pt; border-right:solid windowtext 1.0pt" width="222">
<p style="padding:0in 5.4pt 0in 5.4pt"><span style="tab-stops:45.0pt .75in 1.0in"><span style="font-size:11.5pt">2,970 lbs.</span></span></p>
</td>
</tr>
</tbody>
</table>
<p style="margin-left:31.0pt"> </p>
<p><b><u><span style="font-size:11.5pt">Standard Accessories:</span></u></b></p>
<p><span style="tab-stops:31.5pt right 2.25in left 3.75in"><span style="font-size:11.5pt"> 1 pc. Wheel Balancing Base 1 pc. Wheel Balancing Arbor</span></span></p>
<p><span style="tab-stops:31.5pt right 130.5pt left 3.75in"><span style="font-size:11.5pt"> 1 pc. Grinding Wheel 1 pc. Wheel Flange</span></span></p>
<p><span style="tab-stops:31.5pt right 175.5pt left 3.75in"><span style="font-size:11.5pt"> 1 pc. Table Wheel Dresser 1 pc. Halogen Work Light</span></span></p>
<p><span style="tab-stops:31.5pt right 139.5pt left 3.75in"><span style="font-size:11.5pt"> 1 set Toolbox w/ Tools 1 set Splash Guard</span></span></p>
<p> </p>
<ul>
<li><span style="tab-stops:.25in right 5.5in left 405.0pt right 6.75in"><b><u><span style="font-size:11.5pt"><span style="color:#1104bc">Special Package Price:</span></span></u></b><span style="font-size:11.5pt"><span style="color:#1104bc"> ………………………………………………… <b><u style="text-underline:double">$ 28,800</u></b></span></span></span></li>
</ul>
<p><span style="font-size:11.5pt"> <span style="color:#151dbd">w/ 8” x 18” ACER Electro-Magnetic Chuck (Regular Pole) & Chuck Control </span></span></p>
<p><span style="font-size:11.5pt"><span style="color:#151dbd"> Dust Suction & Coolant System</span></span></p>
<p><span style="font-size:11.5pt"><span style="color:#151dbd"> Parallel Dresser (Overhead Manual)</span></span></p>
<p> </p>
<p><span style="font-size:11.5pt"><span style="color:#151dbd">Shipping not included</span></span></p>
<p><span style="font-size:11.5pt"><span style="color:#151dbd">Extra $1,000 for sea import at this time (March 2022 - inquire if this is still accurate)</span></span></p>
<p><span style="font-size:11.5pt"><span style="color:#151dbd">Prices subject to change at any time due to steel price increases, import increases, and labor shortages</span></span></p>
