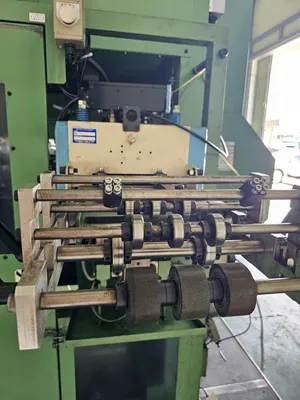

Asahi Seiki BTP-55 Transfer Press New 2004 7" Stroke 11 Op Die 55 Ton

Description

BTP-55 (#12506 / 2004. 9)
stroke : 180mm
shut height : 510mm
speed : 40-150spm
No. of stations : 11
Asahi Seiki 16 Station Die Protection
Lubrimonitor 12 input Bijur oil monitor system
Pedestal Control Cabinet and Remote Operator Palm Buttons
Yaskawa Varispeed Drive model 616G5 - AC Inverter
Construction of upper plunger for both iTP-60 & BTP-55 is linear motion slide type. For reference, lever type upper plunger runs by side shaft on Baird and Asahi TP series. If user runs press by high speed or thicker material, it may cause of damage to cup arm or barrel cam on Baird or TP series. This style is for higher tonnage blanking / cupping requirements.
